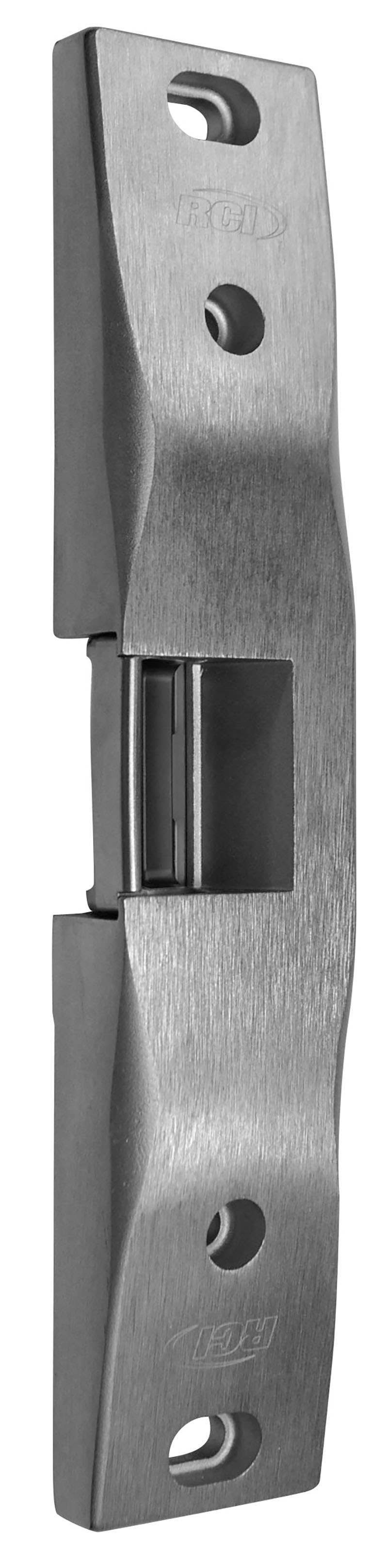

RCI F0162 32D Electric Strike,12-24 VAC, 12/24 VDC,Fire-Rated

Fire Rated Electric Strike, 3/4 In. Surface for Rim Devices, 12/24VDC, 12 to 24VAC, Fail Secure, Satin Stainless Steel Semi-mortise rim strike designed for use with Pullman latch rim exit devices . Accommodates 1/2" to 3/4" (13mm-19mm) latch projection. Certified to ANSI/BHMA standard A156 .31, Grade 1, endurance 500,000 cycles. CAN/ULC S104 & UL 10C, 3-hour fire-rating Listed (optional) Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments For use in: Public Buildings; Controlled Access; Fire Rated Openings; Industrial Environments</p

RCI . F0162 32D

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerRCI
CategoryIdL3Electric Strikes, Bolts, Magnets
CategoryL1Windows and Door Hardware
CategoryL2Door and Window Security Hardware
DimensionUnitinch
Extra Product NameRCI F0162 32D Electric Strike,12-24 VAC, 12/24 VDC,Fire-Rated
Voltage12/24VAC/DC
atoms, moq, multiple, tierMinQty1, Package Qty1
color, Color, Finish DescriptionSatin Stainless Steel
height9.0
height_AttribProduct Height
length0.75
length_AttribProduct Length
MPN, SKUF0162 32D
qtyInStock-2
qtySourceFieldMap
tierPrice1567.27
width1.75
width_AttribProduct Width
Use WithRim Exit Devices
Color Code630/US32D
FunctionElectrically Unlocked (Fail Secure)
Fire Rated3 Hours {A}
Package Volume0
Amp Draw.33 Amps at 12VAC, .50 Amps at 12VDC, .64 Amps at 24VAC, .24 Amps at 24VDC
Faceplate Size9 In. X 1-3/4 In.
Frame ApplicationMetal or Wood
Operating Voltage12VACDC/24VACDC
Special MarksFire rated 3 Hours {A}
Base Material, Finish FamilyStainless Steel
Switch TypeNone
Alternate Part Number-1181400
Manufacturer ParentDormaKaba
For Use WithPullman Latch Rim Exit Device Latches
Product Width1-3/4 Inch
Latch Throw1/2 to 3/4 Inch
Sub-Series0162-32D
ADA CompliantNo
Mounting TypeSurface Mount
Product Height9 Inch
ApplicationAluminum, Metal and Wood Frame
Function Family, Product TypeElectric Strike
Electric OptionsLBM-Latchbolt Monitor
Strength1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw500mA at 12 VDC
Product Length3/4 Inch
Warranty5 year limited warranty
Included ComponentsMounting Spacer; Installation Tool Included (HEX Key)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
DK HardwareF0162 32D1-211 @ $567.27
ZoroG806897948111 @ $539.43
thebuilderssupply.comRCI_F016232D12211 @ $412.56
