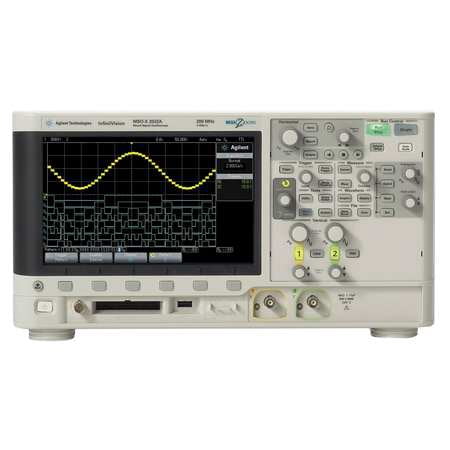

Mixed Signal Oscilloscope, Bench, Bandwidth (MHz) 100MHz, Rise Time 1.75ns, Max. Voltage 400, Max./Min. Sweep Speed 2 nS/div to 50 s/div, Trigger Sensitivity Int./Ext. 10mV/div internal/ 200mV external, Vertical Operating Modes Normal, Peak Detect, Averaging, High Resolution, Segmented, +-8 Divisions From Center Screen Sweep Magnification, Display 8.5 inch WVGA, Digital Storage Bandwidth 64M Internal, USB Stick Limit For External Storage, Memory Size 100kpts/channel Features Features: Analog Oscilloscope, Digital Timing Analyzer, Integrated Function Generator, Mask Testing and Segmented Memory. FFT, Automatic Measurements Includes: 1 Passive Probe Per Analog Channel, Digital Cable For MSO Channels Item: Mixed Signal Oscilloscope Max. Voltage: 400 Max./Min. Sweep Speed: 2 Ns/div to 50 S/div Type: Bench Digital Storage Bandwidth: 64M Internal, USB Stick Limit For External Storage Display: 8.5 inch WVGA Horizontal Resolution: 2.5 pS Memory Size: 1Mpts Rise Time: 1.75 ns Sampling Rate: 1GSa/s Per Channel Sweep Rate Real/Storage: 2 nS/div to 50 s/div Trigger Sensitivity Int./Ext.: 10mV/div internal/ 200mV external Vertical Resolution: 16 bits Manufacturers Warranty Length: 3 YEARS Real Time Bandwidth (MHz): 100MHz Bandwidth (MHz): 100MHz Triggering Mode: Edge, Pulse Width, Pattern, Video Sweep Magnification: +-8 Divisions From Center Screen Sweep Speed Accuracy: 25ppm +- 5 ppm Per Year Aging Triggering Source: Analog channels, digital channels, External, Line WaveGen Vertical Operating Modes: Normal, Peak Detect, Averaging, High Resolution, Segmented

Mixed Signal Oscilloscope, Bench, Bandwidth (MHz) 100MHz, Rise Time 1.75ns, Max. Voltage 400, Max./Min. Sweep Speed 2 nS/div to 50 s/div, Trigger Sensitivity Int./Ext. 10mV/div internal/ 200mV external, Vertical Operating Modes Normal, Peak Detect, Averaging, High Resolution, Segmented, +-8 Divisions From Center Screen Sweep Magnification, Display 8.5 inch WVGA, Digital Storage Bandwidth 64M Internal, USB Stick Limit For External Storage, Memory Size 100kpts/channel Features Features: Analog Oscilloscope, Digital Timing Analyzer, Integrated Function Generat
