AUTONICS . TX4S-24C

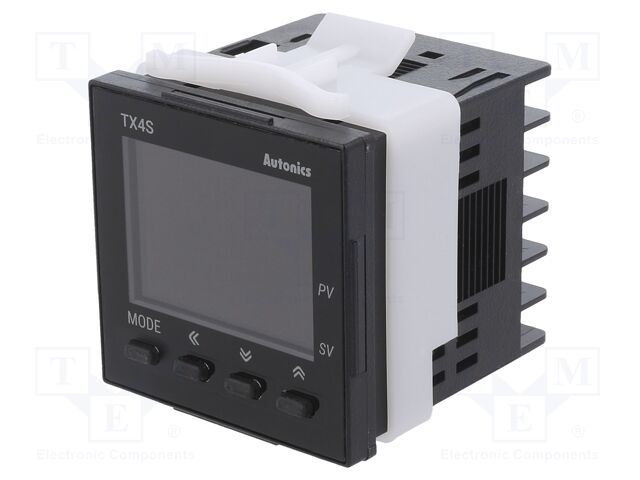

Autonics TX4S-24C Series LCD Display PID Temperature Controllers Temperature Controller, 1/16 DIN, LCD display 4 Digit, PID Control, Selectable Current output or SSR drive output, 2 Alarm Output, 100-240 VAC 50/60Hz 50ms high-speed sampling rate and +-0.3% display accuracy Large LCD display with easy-to-read white PV characters Switch between current output and SSR drive output Communication output model available : RS485 (Modbus RTU)The TX series temperature controllers feature easy-to-read LCD displays with large, white PV characters. The 11-segment displays used for PV and SV are useful for displaying various alphanumeric characters and provide improved legibility. The temperature controllers also feature 50 ms high-speed sampling cycle and +-0.3% display accuracy. The space-saving design with 45 mm depth allows easy installation in limited spaces (DIN 48 x 48 mm models). The TX series can be configured and monitored on PCs via USB or RS485 communication, and are available in diverse sizes for flexible installation in various environments.Ordering InformationLarge LCD Display with Easy-to-Read White PV CharactersLarge LCD display with 15.3mm white PV characters provides high visibility in various environments.*PV character height: TX4S 14 mm, TX4M 17.3 mm, TX4H 15.8 mm, TX4L 26.8 mmCompact Sized Design with 45mm Rear-LengthMinimized installation-space requirements by reducing the depth size by 30% compared to similar-sized Autonics models (48x48mm models)11-Segment Display Provides Improved Readability11-segment displays used for PV and SV provide improved readability of alphanumeric characters.50ms High-Speed Sampling Cycle50ms high-speed sampling rate allows accurate temperature control in applications requiring fast response speeds.Switch Between Current Output and SSR Drive OutputUsers can select between current o
