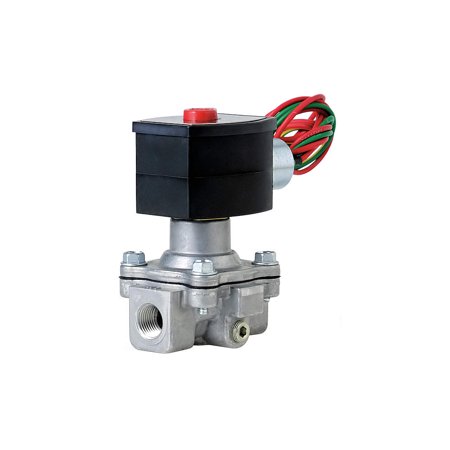

Air and Fuel Gas Solenoid Valve, Body Material: Aluminum, Valve Design: 2-Way/2-Position, Valve Configuration: Normally Closed, Pipe Size: 1/2", Orifice Dia.: 3/4", Coefficient of Volume: 4.4, BtuH: 238,500, Min. Operating Pressure Differential: 0 psi, Max. Operating Pressure Differential: 50 psi, Ambient Temp. Range: 32 Degrees to 125 Degrees F, Voltage: 110/120VAC, Watts: 10.1, Coil Insulation Class: F, Seal Material: NBR, NEMA Rating: 7, 9, Coil Enclosure: Explosionproof and Watertight, Electrical Connections: 18" Leads, Max. Fluid Temp.: 125 Degrees F, Hz: 50/60, Overall Length: 2-3/4", Overall Width: 2-15/32", Overall Height: 4", Center Line Pipe Center Size: 3-15/32", Application: Air and Vacuum Service, Standards: UL Listed for Safety Shutoff, FM Approved, Meets Applicable CE Directives

Air and Fuel Gas Solenoid Valve, Body Material: Aluminum, Valve Design: 2-Way/2-Position, Valve Configuration: Normally Closed, Pipe Size: 1/2", Orifice Dia.: 3/4", Coefficient of Volume: 4.4, BtuH: 238,500, Min. Operating Pressure Differential: 0 psi, Max. Operating Pressure Differential: 50 psi, Ambient Temp. Range: 32 Degrees to 125 Degrees F, Voltage: 110/120VAC, Watts: 10.1, Coil Insulation Class: F, Seal Material: NBR, NEMA Rating: 7, 9, Coil Enclosure: Explosionproof and Watertight, Electrical Connections: 18" Leads, Max. Fluid Temp.: 125 Degrees F, Hz: 50/60, Overall Len
