Canarm

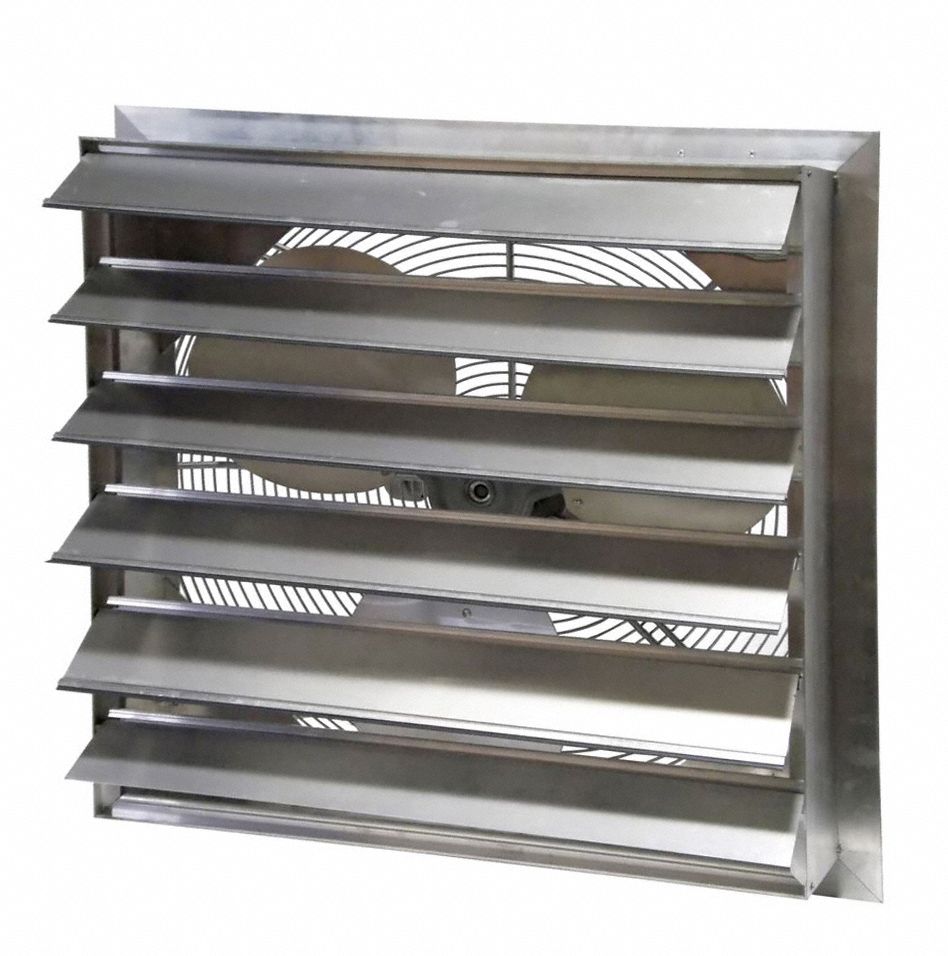

Canarm . AX24-4M

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameCanarm
DimensionUnitinch
GraingerSku788N38
UPC062345206301
UnitOfMeasureEA
Weight66
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginCA
extendedLead10
extendedQty-2
height25
jsonUrlData924526ffbdad25e5923b
length, width31
moq, multiple, tierMinQty1, Number of Speeds1
MPNAX24-4M
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG403538909
tierPrice11108.00
urlhttps://www.zoro.com/canarm-extfn-24in-bld-dia-galvalume-230460v-ax24-4m/i/G403538909/
Exhaust/Supply Fan Item, ItemExhaust Fan
Wire Guard FinishChrome
Frame Material, Frame FinishAluminum
Motor EnclosureTotally Enclosed Air Over
Blade MaterialSteel
Number of Blades3
Bearing TypeBall
Exhaust Airflow @ 0 125 in SP5,330 cfm
Motor Enclosure DesignTotally Enclosed Air Over (TEAO)
AssembledFully Assembled
Motor Horsepower1/3 hp
Maximum Noise Level, Noise Level @ 0 000 in SP @ 5 ft29 sones
Nominal Voltage, Nameplate Voltage230/460V AC
Ventilation TypeExhaust
Blade Diameter24 in
Exhaust Airflow @ 0 000 in SP5,520 cfm
Motor Speed1,725 RPM
Maximum Ambient Operating Temperature40 Degrees C
Maximum Exhaust Airflow @ 0 000 in SP4001 to 6000 cfm
Overall Height, Overall Width28 3/4 in
Frequency50 Hz
Exhaust Airflow @ 0 250 in SP5,130 cfm
Maximum Noise Level @ 0 000 in SP @ 5 ftGreater than 9.0 sones
Hazardous Location ClassClass I, Div 1, Group C and D; Class II, Div 1, Group F and G
Overall Depth18 3/4 in
Full Load Current6.6 A
Country of Origin (subject to change)Canada

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG403538909111 @ $1108.00
grainger.caLDRAX244M111 @ $2402.85
