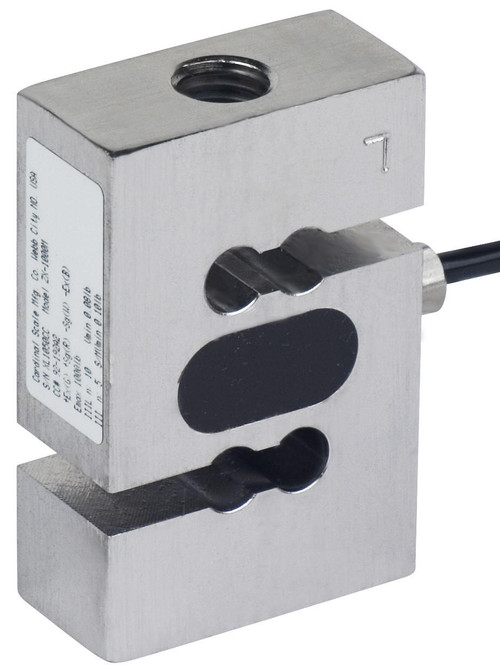

Cardinal Detecto ZX-10,000 10,000 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Detecto |
|---|---|
| DimensionUnit | inch |
| Extra Product Name | Cardinal Detecto ZX-10,000 10,000 lb Stainless Steel S-Beam Load Cell, NTEP - Scales Plus |
| height | 4.2 |
| height_Attrib | Height |
| length | 3.4 |
| length_Attrib | Length |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU, Model | ZX-10,000 |
| qtyInStock | 0 |
| tierPrice1 | 855.12 |
| width | 1.4 |
| width_Attrib | Width |
| NTEP | Yes |
| NTEP CC# | 92-192A2 |
| Certification | NTEP Approved Class III 1:5000 and IIIL 1:10,000 |
| Capacity | 10,000 lb |
| Safe Overload | 150% capacity |
| Ultimate Overload | 300% capacity |
| Length | 3.4" |
| Height | 4.2" |
| Width | 1.4" |
| Hole Threading | 3/4????-16 NF |
| Metric Threading (if requested) | M20 x 1.5 |
| Construction | Stainless steel |
| Cable Color Code | Green = + Excitation, Black = - Excitation, Red = + Signal, White = - Signal, Yellow = Shield |
| Rated Excitation | 5-10 VDC (maximum of 15 V) |
| Full Scale Output | 3 mV/V ? 0.1% |
| Excitation Terminal Resistance | 389 ? 20 ohms |
| Signal Terminal Resistance | 350 ? 5 ohms |
| Insulation Resistance | 5000 megohms |
| Seal Type | Welded seal |
| IP Rating | IP67 |
| Cable Length | 30 ft |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| scalesplus.com | ZX-10,000 | 1 | 1 | 1 @ $855.12 |
