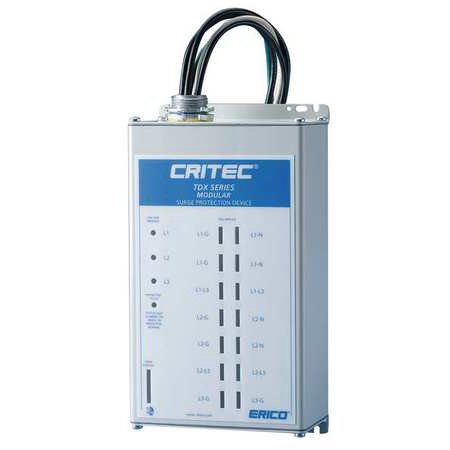

Surge Suppressor, ModularNominal Discharge Current 20kA, Voltage 120/208, Phase 3YMax. Continuing Operating Voltage 170 L-N, 276 L-L, Voltage Protection Rating 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (modular)Modes of Protection All modes protected, Mounting Style Panelboard, 3/4 In. Straight Nipple (Optional Flush Mounting Plate for Drywall), Material of Construction Aluminum, IP65 (NEMA 4)Length 11, Width 5.12, Depth 3.07 Features Depth: 3.07" Item: Surge Protection Device Length: 11.00" Number of Wires: 4 Wires + Ground Phase: 3 Width: 5.12" Mounting Style: Flush/Surface Voltage: 120/208VAC Wye Enclosure Material: Aluminum Standards: CE, IEC 61643-1, ETL Listed to UL 1449 Edition 3 Type 1/2 IP Rating: 65 Modes of Protection: L-G, L-L, L-N, N-G Voltage Protection Rating: 600V (L-G, L-N, N-G), 1000V (L-L) Nominal Discharge Current: 100kA Max. Continuing Operating Voltage: 170/276VAC Short Circuit Current Rating: 200kA Max. Surge Current Per Phase: 200kA Lightning Impulse Current: 20kA Enclosure NEMA Rating: 4 Filtering / Nonfiltering: Nonfiltering Modular / Nonmodular: Modular

Surge Suppressor, ModularNominal Discharge Current 20kA, Voltage 120/208, Phase 3YMax. Continuing Operating Voltage 170 L-N, 276 L-L, Voltage Protection Rating 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) (modular)Modes of Protection All modes protected, Mounting Style Panelboard, 3/4 In. Straight Nipple (Optional Flush Mounting Plate for Drywall), Material of Construction Aluminum, IP65 (NEMA 4)Length 11, Width 5.12, Depth 3.07 Features Depth: 3.07" Item: Surge Protection Device Length: 11.00" Number of Wires: 4 Wi
