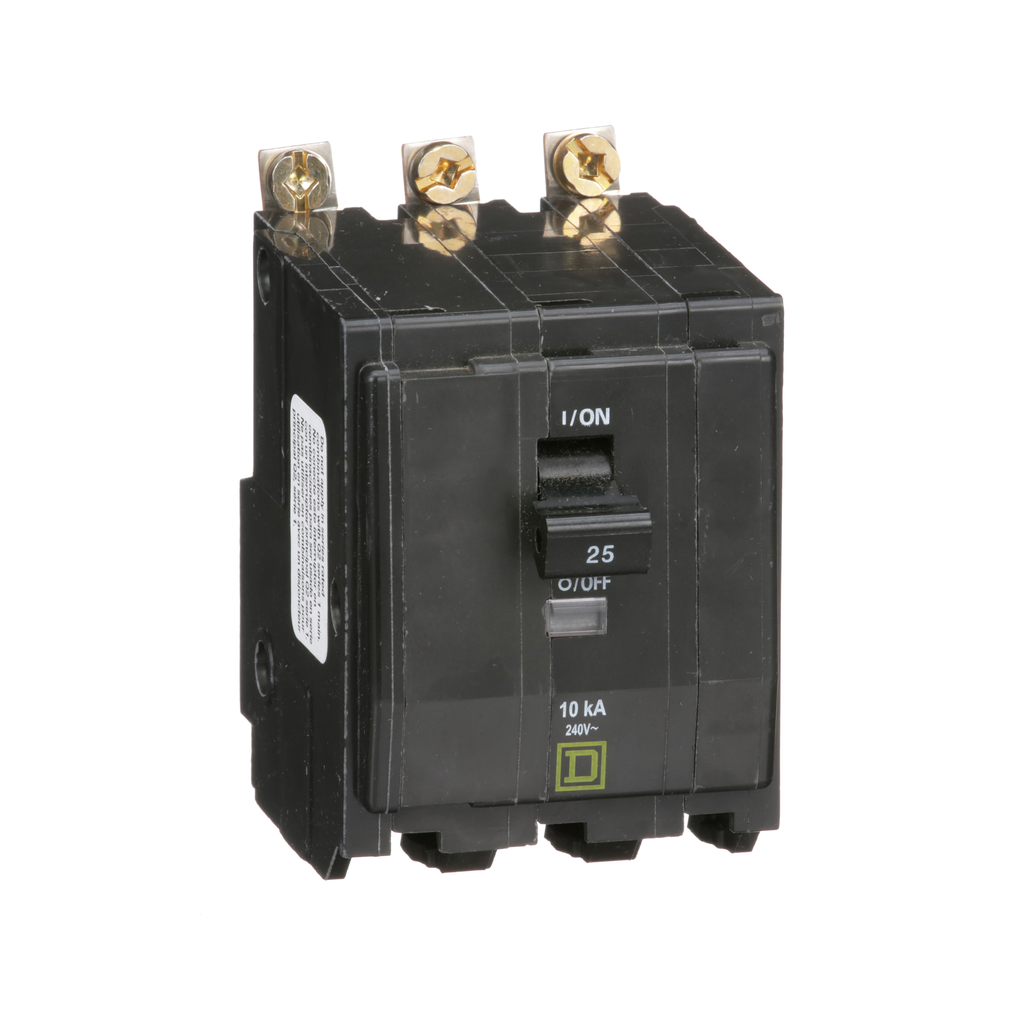

Mini circuit breaker, QO, 25A, 3 pole, 120/240VAC, 10kA, bolt on mount | Mayer Electric

Shop SQUARE D at Mayer. Mini circuit breaker, QO, 25A, 3 pole, 120/240 VAC, 10 kA, bolt on mount

Mayer Electric Supply . QOB325

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 25A, 3 pole, 120/240VAC, 10kA, bolt on mount | Mayer Electric
UPC785901368311
Weight0.372
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height76.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-25A-3-pole-120-240-VAC-10-kA-bolt-on-mount-785901368311
jsonUrlData28c809f0e-6572-4873-ab0f-abb200c9df83
keywordsSQUARE D, Mayer SQUARE D, 785901368311, QOB325
length_AttribDepth
moq, multiple, tierMinQty11
MPNQOB325
qtyInStock2
SKUSQDQOB325
snippetShop SQUARE D at Mayer. Mini circuit breaker, QO, 25A, 3 pole, 120/240 VAC, 10 kA, bolt on mount
tierPrice1302.9
width57.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Mounting Modebolt-on
Circuit Breaker Typestandard
Range Of ProductQO
Poles Description3P
Electrical Connectionpressure plate
Line Rated Current25 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 240 V AC || 120 V AC
Warranty18 months
Height76 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Tightening Torque5-5 N.m 10-25 mm? (AWG 8...AWG 2)
Number Of Spaces Required3
Awg GaugeAWG 14...AWG 8 copper or aluminium
Width57 mm
Depth74 mm
Net Weight0.372 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB3251211 @ $302.90
