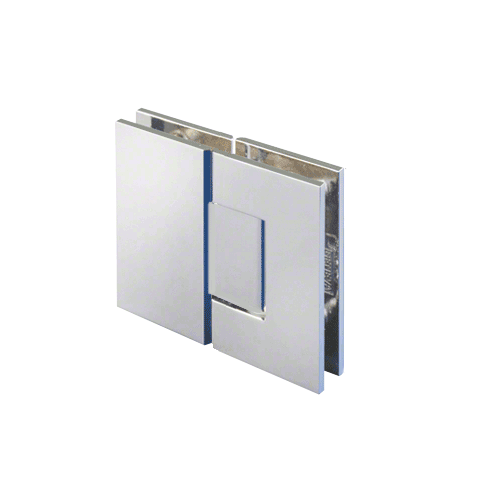

CRL V1E780CH Chrome Vienna 180 Degree Glass-to-Glass Positive Close Hinge
The Positive Close Vienna Hinge contains an internal grooved pivot pin that allows the door a precise and positive closing action. This is a different closing action than the typical self-centering Vienna Hinges. Stocked in our four most popular finishes, and available in other finishes upon special order. Using two hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with 3/8" to 1/2" glass (10 to 12 mm) the hinge will hold up to 140 lbs. (63 kg) with a maximum door wid
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | CR Laurence |
|---|---|
| CategoryIdL3 | 180 Degree Glass-to-Glass Mount Hinges |
| CategoryL1 | Bathroom Hardware |
| CategoryL2 | Shower Door Hinges & Hinge Replacement Parts |
| DimensionUnit | inch |
| Extra Product Name | CRL V1E780CH Chrome Vienna 180 Degree Glass-to-Glass Positive Close Hinge |
| Weight, Maximum Door Weight - 3 Hinges (Pounds) | 140 |
| WeightUnit | lbs |
| Weight_Attrib | Maximum Door Weight - 3 Hinges (Pounds) |
| atoms, moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | V1E780CH |
| qtyInStock | -2 |
| qtySource | FieldMap |
| tierPrice1 | 108.89 |
| width | 2.25 |
| width_Attrib | Width |
| Shipping Weight | 2 Lb (907g) |
| Width | 2-1/4" (57 mm) |
| Height | 3-15/16 |
| Finish | Chrome |
| Mounting Type | Glass To Glass |
| Material | Brass |
| Glazing Thickness | 3/8, 1/2 |
| Maximum Door Width | 36 |
| Edge Profile | Square |
| Finish/Color | Polished Chrome |
| Width - Sidelite Portion (Inches), Width - Door Portion (Inches) | 2-1/4 |
| Self-Centering, Positive Close | Yes |
| Maximum Door Weight - 2 Hinges (Pounds) | 110 |
| Glass To Glass Angle (Degrees) | 180 |
| Adjustable, 5 Degree Pre-Set | No |
