Parker

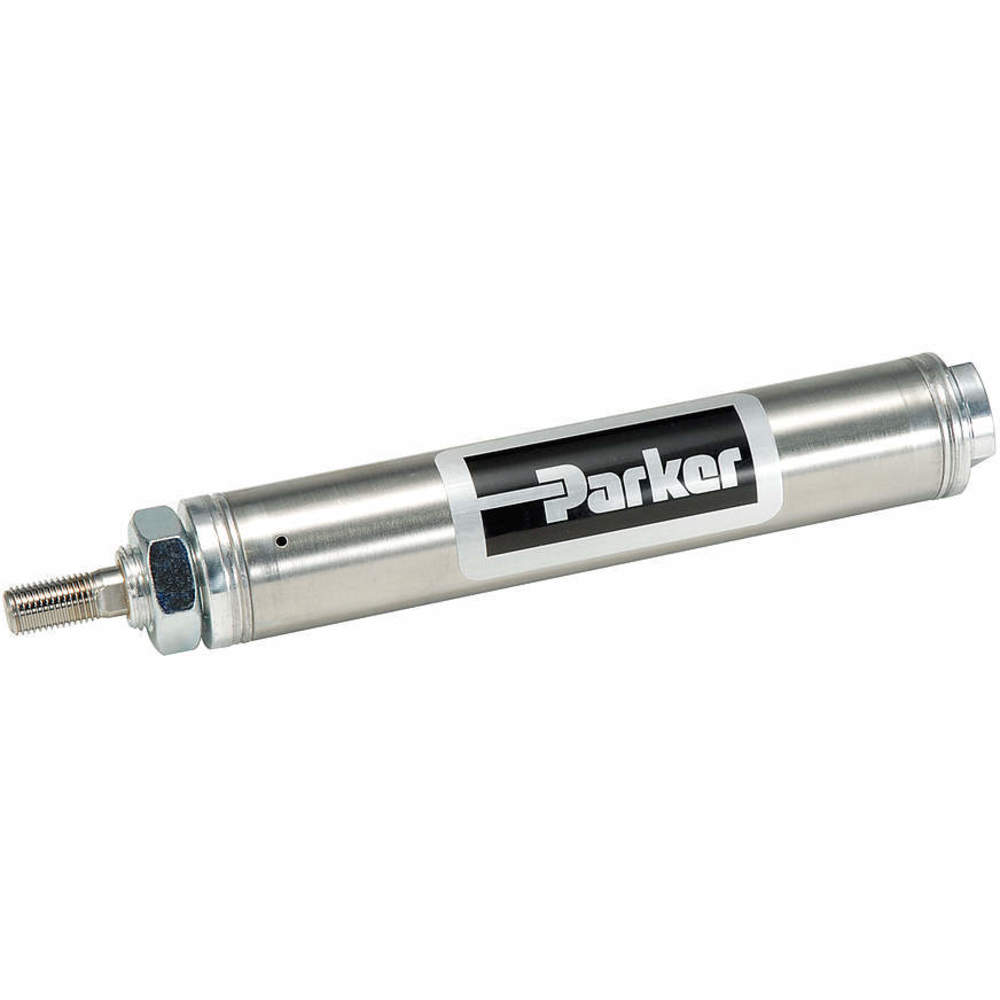

Round Air Cylinder 7/16 Inch Bore 2 Inch Stroke | 49J567 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Parker . 0.44NSR02.00

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameParker
DimensionUnitinch
GraingerSku49J567
UPC, Cushion TypeNone
UnitOfMeasureEA
Weight0.2
WeightUnitlbs
cali_prop65_messageWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
cali_prop65_orglabel, cali_prop65_whtlabelTrue
cali_prop65_warnmsgscenario7
countryOfOriginUS
height, width0.5
jsonUrlData924526ffbdad25e5923b
length5.57
moq, multiple, tierMinQty11
MPN0.44NSR02.00
qtyInStock17
qtyInStockOverride-2
SKUG6077382
tierPrice117.53
urlhttps://www.zoro.com/parker-air-cylinder-716-in-bore-2-in-stroke-round-body-single-acting-044nsr0200/i/G6077382/
Cylinder Action, Single Acting/Double ActingSingle Acting
ItemAir Cylinder
Bore Dia, Air Cylinder Bore Dia7/16 in
Max Pressure250 psi
Body MaterialStainless steel
Rod Dia, Dimension Cc0.188 in
Overall Length5.57 in
Rod Thread Length0.5 in
Tube Material, Piston Rod MaterialStainless Steel
Cylinder TypeRound Non-Repairable
Magnetic PistonNo
Stroke2 in
Mount, Air Cylinder MountNose
Port Size, Dimension Kk, Rod Thread Size#10-32 UNF
Air Cylinder TypeRound Body
Dimension J0.19 in
Piston Material, End Cap MaterialAluminum
Dimension A1/2 in
FinishSilver
Dimension E0.38 in
Spring Retraction Force1 lb
Nose Mount Thread, Dimension N13/8"-24
Temp Range-10 Degrees to 165 Degrees F
Dimension B0.374 in
FeaturesNon-Switch Ready
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG607738211711 @ $17.53
Grainger49J56711
Raptor SuppliesAJ2DYL111 @ $45.01
AmazonSCB076C4VGZ81-211 @ $37.10
Applied Industrial10219322311
Radwell0.44NSR02.0011
simsupply.comZO-G607738212011 @ $32.96
