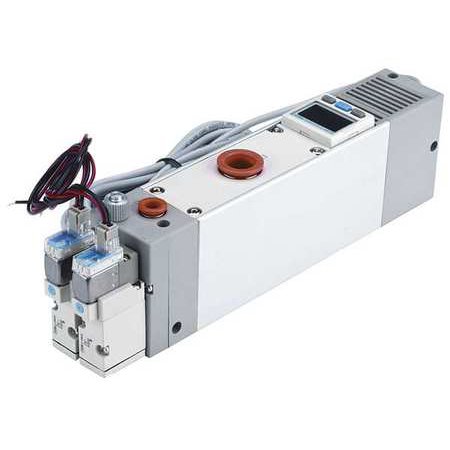

Vacuum Ejector, Single Unit, Pressure Port Size 1/8 In. NPT, Vacuum Port Size 1/2 In. NPT, Exhaust Type Muffler, Supply Pressure Range 30 to 72 PSI, Vacuum Pressure Range 0 to -84 KPA, Vacuum Pressure @ 40 PSI -65 KPA, Vacuum Pressure @ 75 PSI -84 KPA, Vacuum Flow Rate 100Lpm, Orifice Dia. 1.2mm, Valve Type 2 NC Supply and Release, Valve Supply Voltage 24VDC, Switch Type 1 PNP Output, Length 216mm, Width 36mm, Height 66.5mm, Weight 650g, Temp. Range 0 to 50 Degrees C Features Height: 66.5mm Includes: Muffler, Needle Flow Control Valve, Supply Valve, Release Valve, Vacuum Switch Item: Vacuum Ejector,Single Unit Length: 216mm Temp. Range: 0 to 50 Degrees C Width: 36mm Exhaust Type: Muffler Switch Type: 1 PNP Output Valve Type: 2 NC Supply and Release Weight: 650g Orifice Dia.: 1.2mm Vacuum Port Size: 1/2" NPT Ejector Type: 3 Stage Venturi Pressure Port Size: 1/8" NPT Supply Pressure Range: 30 to 72 PSI Vacuum Pressure Range: 0 to -84 KPA Vacuum Pressure @ 40 PSI: -65 KPA Vacuum Pressure @ 75 PSI: -84 KPA Vacuum Flow Rate: 100.0Lpm Valve Supply Voltage: 24VDC

Vacuum Ejector, Single Unit, Pressure Port Size 1/8 In. NPT, Vacuum Port Size 1/2 In. NPT, Exhaust Type Muffler, Supply Pressure Range 30 to 72 PSI, Vacuum Pressure Range 0 to -84 KPA, Vacuum Pressure @ 40 PSI -65 KPA, Vacuum Pressure @ 75 PSI -84 KPA, Vacuum Flow Rate 100Lpm, Orifice Dia. 1.2mm, Valve Type 2 NC Supply and Release, Valve Supply Voltage 24VDC, Switch Type 1 PNP Output, Length 216mm, Width 36mm, Height 66.5mm, Weight 650g, Temp. Range 0 to 50 Degrees C Features Height: 66.5mm Includes: Muffler, Needle Flow Control Valve, Supply Valv
