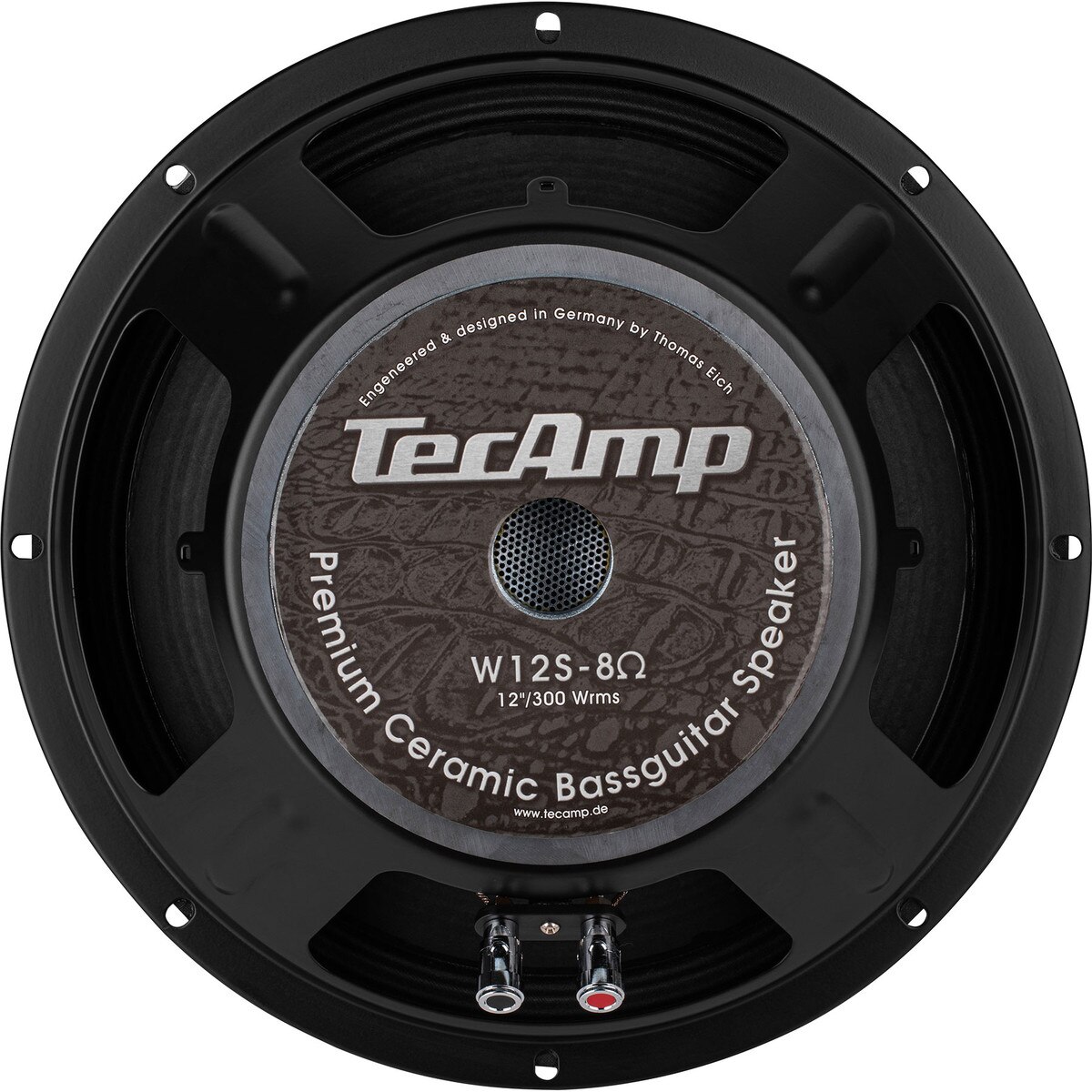

TecAmp W12S-8 12" Professional Woofer 8 Ohm

TecAmp W12S-8 12" Professional Woofer 8 Ohm. Part Number: 299-374 by Factory Buyouts.

Factory Buyouts . W12S-8

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameTecAmp W12S-8 12" Professional Woofer 8 Ohm
UPC848864064956
Weight10.65
WeightUnitlbs
depth, length5.125
diameter, height, width12.25
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelW12S-8
qtyInStock0
SKU, Part Number299-374
snippetTecAmp W12S-8 12" Professional Woofer 8 Ohm. Part Number: 299-374 by Factory Buyouts.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8?
Frequency Response55 to 3,500Hz
Sensitivity95.3dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)53Hz
DC Resistance (Re)6.19?
Voice Coil Inductance (Le)0.71mH
Mechanical Q (Qms)10.24
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.63
Compliance Equivalent Volume (Vas)2.65ft?
Mechanical Compliance of Suspension (Cms)0.22mm/N
BL Product (BL)11.1T?m
Diaphragm Mass Inc Airload (Mms)40.3g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)486cm?
Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton? / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter12.25"
Baffle Cutout Diameter11.3"
Depth5.125"
# Mounting Holes8
Sealed Volume2.9ft?
Sealed F372Hz
Vented Volume6.5ft?
Vented F336Hz
