Burndy . YA27LBOX

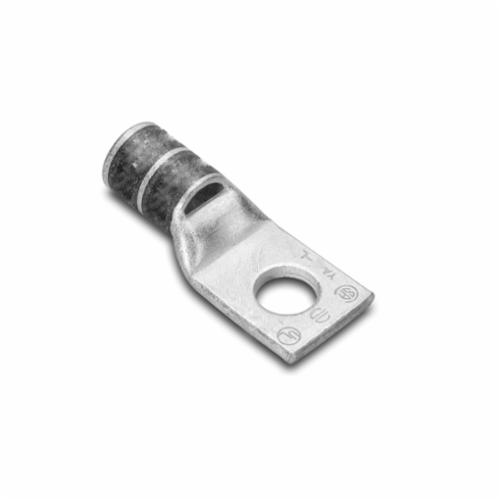

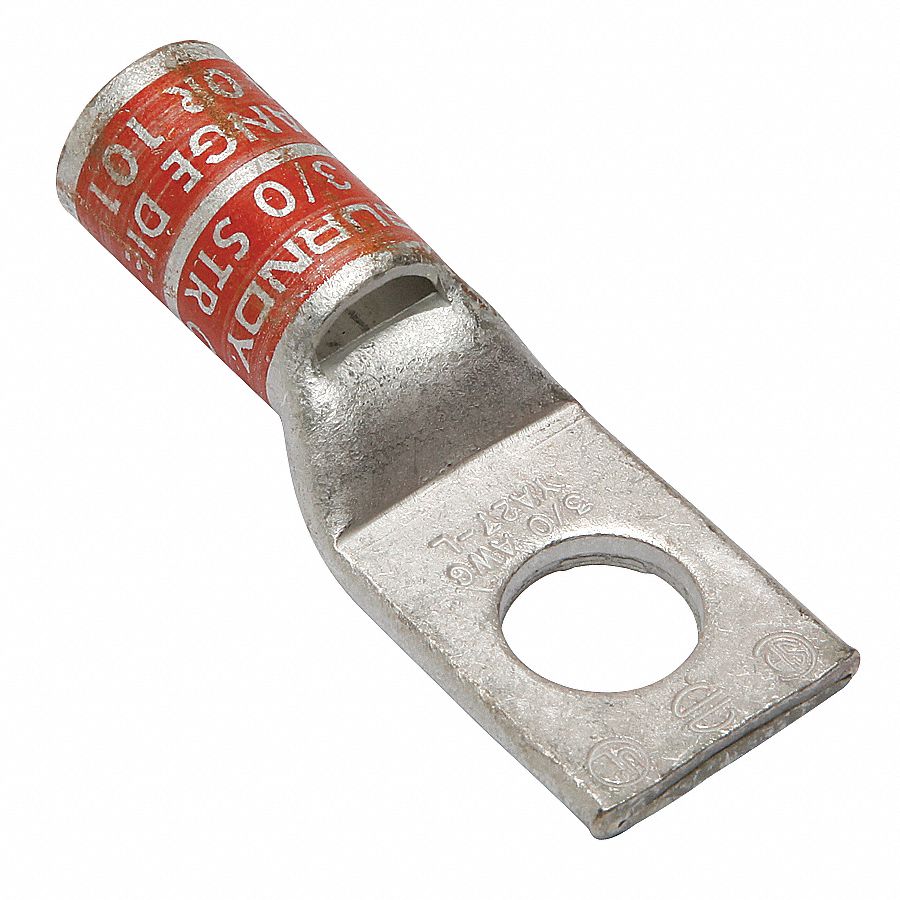

The Burndy YA27L-BOX is a one-hole lug compression connector with a straight barrel and orange color code. It features high-conductivity copper construction with electro-tin plating to resist overheating and corrosion. The connector is designed to withstand a wide range of electrical and environmental conditions, including current surges, extreme temperatures, and vibrations. It is UL listed and CSA certified for use in various applications.
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Orange, Die Code 14, Tongue Angle Straight, Tongue Width 0.91 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 3/0 AWG, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV AC, Termination Style Crimp
Gallery
Attributes
| Brand name, Manufacturer name | Burndy |
|---|---|
| Manufacturer | Burndy BURNDY CAI - BURNDY |
| extendedQty, qtyInStock | 0 |
| moq, multiple, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Part Number, Keyword, Model, ModelNumber, Model_number, StrippedMpns | YA27LBOX |
| qtySource | updateFromUrlEntry |
| Product Group | BISS |
| ASIN, Asin | B008SCJZLM B00GPQ0PAI B07J2WY1CV |
| AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligible | False |
| Brand | Burndy CAI - BURNDY |
| Bullet_point | 3/0 CU 1 HOLE COMPRESSION TERMINAL ORANGE COLOR SHORT 1/2 TIN PLATED |
| Cat | Industrial & Scientific |
| CatId | 16310091 |
| CatTree | 16310091 16310161 |
| Chemical_names | lead |
| ClassificationId | 15690151 495266 |
| Compliance_type | chemical |
| DisplayName | Categories Electrical |
| Feature | Price For: Each Standards : UL Listed, CSA Certified, UL467 Tongue Style : Standard Material : Copper Item : One-Hole Lug Compression Connector Plate Material : Electro Tin Connector Type : Straight Barrel Hole Center to End : 0.530" Peep Hole : Yes Cable Size : 3/0 AWG Stud Size : 1/2" Barrel Length : Short Die Code : 14 Color Code : Orange Width : 0.91" Length : 2.54" |
| Height | 1200 2.0 2.00 230 261 39 444 50 500 61 627 67 75 9.24 999 |
| Identifier | 0696333987912 696333987912 7436829443873 |
| IdentifierType | EAN UPC |
| IsBrandQuery, IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | BURNDY 3/0 One-Hole Lug Compression Connector, Straight Barrel, Orange BURNDY YA27L-BOX 3/0 CU 1 Hole, Compression Terminal, Short 1/2, TIN Plated, Orange Color YA27LBOX -- LUG COMP 3/0 1 hole 1/2" STD |
| Item_package_weight | 0.12 |
| Item_type_keyword | automotive-equipment ring-terminals |
| Item_weight | 0.0 0.22 |
| Label, Publisher, Studio | BURNDY CAI - BURNDY |
| Length | 12.35 2.0 2.00 |
| Link | https://m.media-amazon.com/images/I/21OwTmZ1GJS._SL75_.jpg https://m.media-amazon.com/images/I/21OwTmZ1GJS.jpg https://m.media-amazon.com/images/I/21c66swXpHL._SL75_.jpg https://m.media-amazon.com/images/I/21c66swXpHL.jpg https://m.media-amazon.com/images/I/31MpxyYPWBL.jpg https://m.media-amazon.com/images/I/31ZiqKhE34L._SL75_.jpg https://m.media-amazon.com/images/I/31ZiqKhE34L.jpg https://m.media-amazon.com/images/I/41PCTLFYbcL._SL75_.jpg https://m.media-amazon.com/images/I/41PCTLFYbcL.jpg https://m.media-amazon.com/images/I/41d+viTeQSS.jpg https://m.media-amazon.com/images/I/61pOaZouBZL.jpg |
| Man | BURNDY |
| Marking_type | epa_registration_number |
| Material, MaterialType | Copper |
| Measurement_system | Imperial |
| Mpns, PartNumber, Part_number | YA27L-BOX YA27LBOX |
| OldTitle | One Hole Lug Compress Connector, 3/0 AWG |
| ProductGroup | Automotive Parts and Accessories BISS BISS Basic |
| ProductType | AUTO_ACCESSORY ELECTRONIC_COMPONENT_TERMINAL |
| ProductTypeName | AUTO_ACCESSORY ELECTRONIC_COMPONENT ELECTRONIC_COMPONENT_TERMINAL MECHANICAL_COMPONENTS |
| Product_description | 'One-Hole Lug Compression Connector, Connector Type Straight Barrel, Cable Size 3/0 AWG, Tongue Style Standard, Color Code Orange, Die Code 14, Length 2.54 In., Barrel Length Short, Material Copper, Plate Material Electro Tin, Stud Size 1/2 In., Hole Center to End 0.530 In., Width 0.91 In., Peep Hole Yes, Standards UL Listed, CSA Certified, UL467' These compression connectors are designed to provide reliable and controllable electrical connections. Each features high-conductivity copper construction and electro-tin plating to resist overheating and corrosion. The design also helps the connectors withstand a wide range of electrical and environmental conditions, including current surges, extreme temperatures, corrosion, and vibrations, in a variety of applications. Item: One-Hole Lug Compression Connector Connector Type: Straight Barrel Cable Size: 3/0 Tongue Style: Standard Color Code: Orange Die Code: 14 Length: 2.54" Barrel Length: Short Material: Copper Plate Material: Electro Tin Stud Size: 1/2" Hole Center to End: 0.530" Width: 0.91" Peep Hole: Yes Standards: UL Listed, CSA Certified, UL467 |
| Product_site_launch_date | 2017-10-13T14:15:20.426Z 2018-10-05T23:09:28.681Z |
| Registration_status | fifra_not_considered_pesticide |
| Sku | BURNDY YA27LBOX |
| Specification_met | UL |
| Style | Compact |
| Supplier_declared_dg_hz_regulation | unknown |
| Temperature_rating | 221 degree celsius |
| Terminal_type | Ring Terminal |
| Title | BURNDY 3/0 One-Hole Lug Compression Connector, Straight Barrel, Orange BURNDY YA27L-BOX 3/0 CU 1 Hole, Compression Terminal, Short 1/2, TIN Plated, Orange Color BURNDY YA27L-BOX 3/0 CU 1 Hole, TIN Plated, Short 1/2, Orange Color, Compression Terminal BURNDY YA27L-BOX Compression Terminal, Orange Color, TIN Plated, 3/0 CU 1 Hole, Short 1/2 BURNDY YA27L-BOX Compression Terminal, Short 1/2, 3/0 CU 1 Hole, Orange Color, TIN Plated BURNDY YA27L-BOX Lug ONE Hole Copper Compression Terminal 2.54INCH One Hole Lug Compress Connector, 3/0 AWG YA27LBOX -- LUG COMP 3/0 1 hole 1/2" STD |
| TitleSource | listings feed |
| Type | Count ean upc |
| URL | http://ecx.images-amazon.com/images/I/21bCayLyXCL._SL75_.jpg https://m.media-amazon.com/images/I/21OwTmZ1GJS._SL75_.jpg https://m.media-amazon.com/images/I/31ZiqKhE34L._SL75_.jpg https://m.media-amazon.com/images/I/41PCTLFYbcL._SL75_.jpg |
| Unit | inches pounds |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN PT01 |
| WebsiteDisplayGroup | automotive_display_on_website biss_basic_display_on_website |
| WebsiteDisplayGroupName | Automotive Parts and Accessories BISS Basic |
| Weight | 0.0 0.00 0.12 0.22 |
| Width | 1125 1200 2.0 2.00 348 4.08 500 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Crescent Electric Supply Co | YA27LBOX | 1 | 1 | ||
| Grainger | 22C310 | 1 | 1 | ||
 Zoro | G4703702 | 1 | 395 | 1 | 1 @ $11.49 |
| Allied Electronics | 71487042 | 1 | 1 | ||
 Platt.com | 0814750 | 1 | 1 | 1 | 1 @ $4.10 |
 Megadepot | YA27LBOX | 1 | 1 | 1 @ $13.62 | |
 Raptor Supplies | AB6RHX | 1 | 1 | 1 @ $27.74 | |
 Zoro | G0648463 | 10 | 10 | 1 @ $10.94 | |
| 109X344 | 1 | -2 | 1 | 1 @ $7.96, 12 @ $6.77 | |
| 19594 | 1 | 1 | 1 @ $5.25 | ||
 usmegastore.com | YA27LBOX | 1 | -2 | 1 | 1 @ $13.62 |
| Graybar | 88048560 | 1 | 9 | 1 | 1 @ $7.15 |
| BURYA27LBOX | 1 | Est Lead Time: 15 Bus Days | 1 | 1 @ $7.30 | |
 electricalparts.com | YA27LBOX | 1 | 4 | 1 | 1 @ $1.50 |
| WWG22C310 | 1 | 1 | 1 @ $12.32 | ||
| Crescent Electric Supply Co | 2128800 | 1 | 1 | ||
 Galco | YA27LBOX-BURN | 1 | 1 | 1 @ $7.45 | |
| BURYA27LBOX | 1 | 1 | 1 @ $8.83 |
