Albion

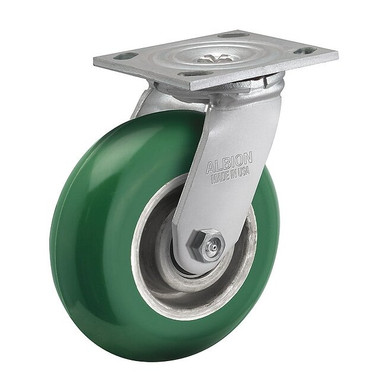

Swivel, Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia.

Albion . 16PM05228S

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAlbion
DimensionUnitinch
GraingerSku60RN39
UPCNone
UnitOfMeasureEA
Weight5.47
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty, qtyInStockOverride-2
height6.5
jsonUrlData924526ffbdad25e5923b
length6
moq, multiple, tierMinQty1, Number of Wheels1
MPN16PM05228S
qtyInStock0
SKUG000713013
tierPrice185.45
urlhttps://www.zoro.com/albion-5-x-2-non-marking-polyurethane-round-swivel-caster-no-brake-loads-up-to-1000-lb-16pm05228s/i/G000713013/
width4.5
Caster Sub-TypeSwivel
Load Rating1000 lb
Wheel Dia5 in
Wheel Width, Overall Wheel Width2 in
Caster Stem TypeTop Plate
With Toe Plate, Includes Thread Guards, Includes Spanner BushingNo
Wheel/Tread Hardness95A
Swivel Lead1 5/8 in
For Axle Dia1/2 in
Mounting Height6-1/2 in
Frame FinishZinc
Swivel ConstructionKingpin
NSF Listed, Non-MarkingYes
Caster Frame MaterialSteel
Swivel Radius4 1/8 in
Caster Mounting TypePlate
ApplicationShop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
Swivel Raceway TypeDouble Ball
Outside Bolt Hole Spacing3 in X 3-5/8 in
Wheel Bearing TypePrecision Ball
Swivel Lock TypeNo Lock Included
Wheel Core MaterialAluminum
Operating Temperature Range-40?F to 180?F
Wheel/Tread ColorGreen
Frame ConstructionCold Forging
Core ColorGrey
Wheel TypeRound Polyurethane (Aluminum Core)
Mounting Plate Size4 in X 4-1/2 in
Caster Product GroupSwivel Caster
FeaturesErgonomic Wheel, Kingpin, Maintenance-Free Wheel, Medium Heavy Duty Caster, Premium Polyurethane Wheel
Wheel/Tread Hardness RatingSoft
ItemMedium Duty Industrial Plate Caster
Wheel/Tread MaterialPolyurethane (Donut)
Wheel Core TypeSolid
StandardsNSF Listed, RoHS Compliant
Mounting Bolt Dia3/8 in
Tread ShapeDonut
Caster Brake TypeNo Brake Included
Mounting Plate Thickness1/4 in
Number of Mounting Holes4
Mounting Plate Bolt Hole PatternB
Inside Bolt Hole Spacing2-5/8 in X 3 in
Load Rating Range1000 to 2999 lb
Hub Length2 3/16 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG000713013111 @ $85.45
simsupply.comZO-G00071301312711 @ $93.59
Grainger60RN3911
