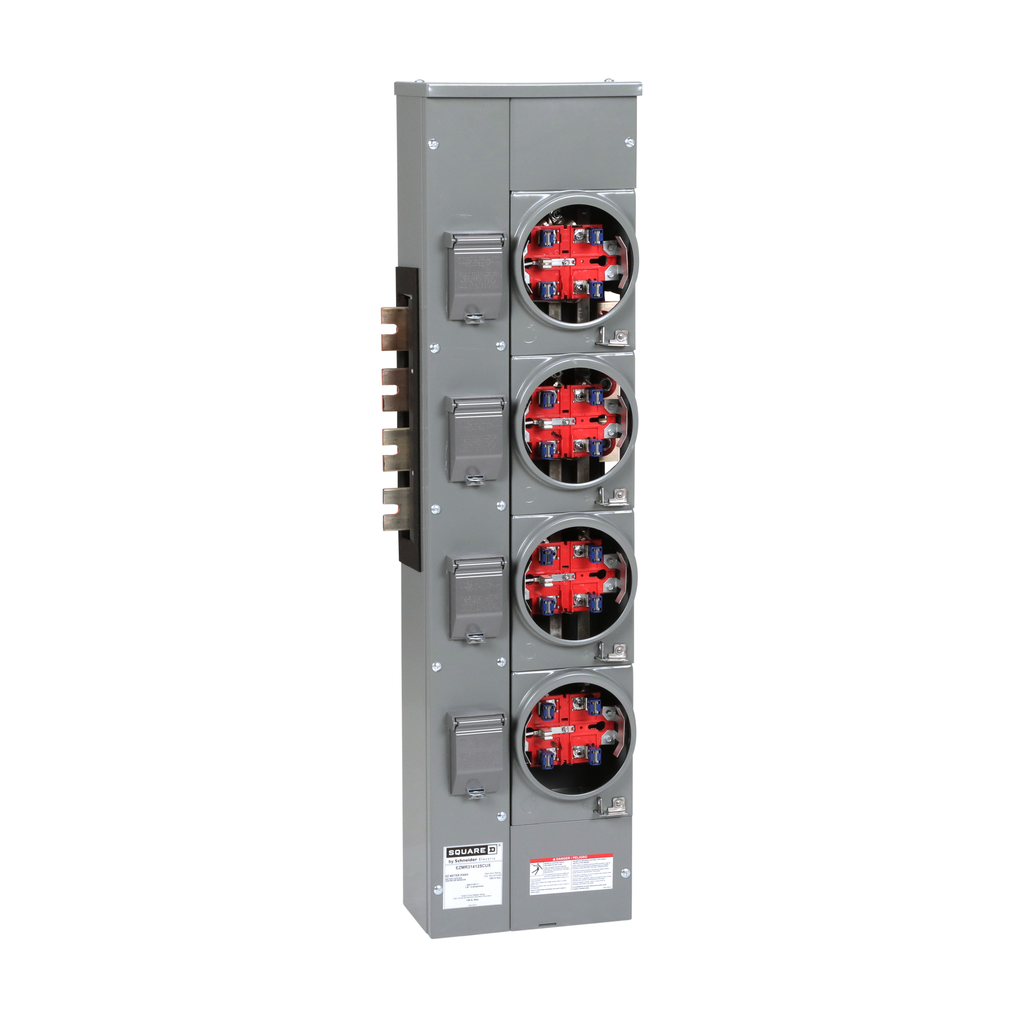

Branch unit, EZ Meter-Pak, 125A, 4 sockets, 208Y/120VAC, no bypass, ringless, 1200A Cu busbar | Mayer Electric

Mayer Electric Supply . EZMR314125CUX

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameBranch unit, EZ Meter-Pak, 125A, 4 sockets, 208Y/120VAC, no bypass, ringless, 1200A Cu busbar | Mayer Electric
UPC785901198093
Weight42.300
WeightUnitkg
Weight_AttribNet Weight
depth, length180.0
height1222.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Branch-unit-EZ-Meter-Pak-125A-4-sockets-208Y-120-VAC-no-bypass-ringless-1200A-Cu-busbar-785901198093
jsonUrlData22d7ef545-00da-4152-95c3-abd200621299
length_AttribDepth
moq, multiple, tierMinQty11
MPNEZMR314125CUX
qtyInStock0
SKUSQDEZMR314125CUX
tierPrice11183.17
width311.0
width_AttribWidth
Range Of ProductMeter-Pak
Bypass Typeno bypass
Meter Socket Typeringless
Number Of Meter Sockets4
Line Rated Current125 A
Bus Rated Current1200 A
Product Or Component TypeMeter Center Branch Unit
Number Of Jaws5 without jaw release
Warranty18 months
Product CertificationsUL Listed
Height1222 mm
Phase3 phase in || 1 phase out
Nema Degree Of ProtectionNEMA 3R
Device Mountingsurface
[Ue] Rated Operational Voltage208Y/120 V AC
Materialcopper busbar
Enclosure Materialsteel
Wiring Configuration4-wire
Width311 mm
Depth180 mm
Net Weight42.300 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEZMR314125CUX111 @ $1183.17
