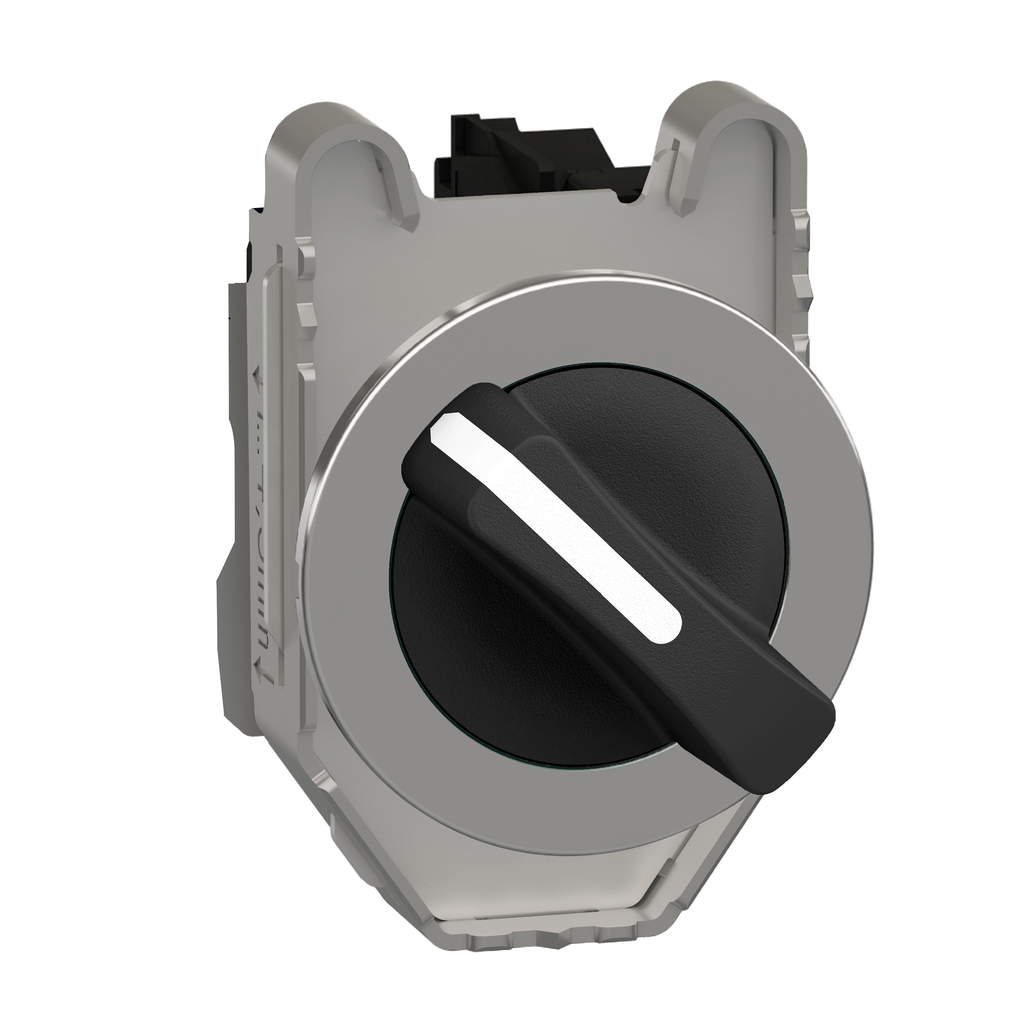

Harmony XB4, Selector switch flush mounted, metal, black, ?30, 2 positions, spring return right to left, 1 NO | Mayer Electric

SQUARE D . SQDXB4FD41

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameHarmony XB4, Selector switch flush mounted, metal, black, ?30, 2 positions, spring return right to left, 1 NO | Mayer Electric
UPC3606489580186
Weight0.105
WeightUnitkg
Weight_AttribNet Weight
depth, length70.0
height47.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Harmony-XB4-Selector-switch-flush-mounted-metal-black-Ø30-2-positions-spring-return-right-to-left-1-NO-3606489580186
length_AttribDepth
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPN, SKUSQDXB4FD41
qtyInStock0
tierPrice136.00
width36.6
width_AttribWidth
Range Of ProductHarmony XB4
Mounting Diameter30.5 mm
Type Of Operatorright to left spring return
Product Or Component Typeselector switch
Shape Of Signaling Unit Headround
Fixing Collar Materialzamak
Head Typebuilt-in-flush
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Profileblack standard handle
Operator Position Information2 positions 90?
Device Short NameXB4F
Warranty18 months
Contacts Usagestandard contacts
Height47 mm
Terminals Description Iso N?1(13-14)NO
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Fixing Modeby screws
Fixing Center40 x 50 mm 1...6 mm thick panel)
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Net Weight0.105 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
Mechanical Durability1000000 cycles
Torque Value0.14 N.m NO changing electrical state
Width36.6 mm
Depth70 mm
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Device Mountingbuilt-in
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1808008EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingDi-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Circularity ProfileENVEOLI1808008EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || CSA || CCC || EAC
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage-40-70 ?C
StandardsCSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Vibration Resistance5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Overvoltage Categoryclass I IEC 60536
Ik Degree Of ProtectionIK06 IEC 50102
Protective TreatmentTH

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXB4FD41111 @ $36.00
