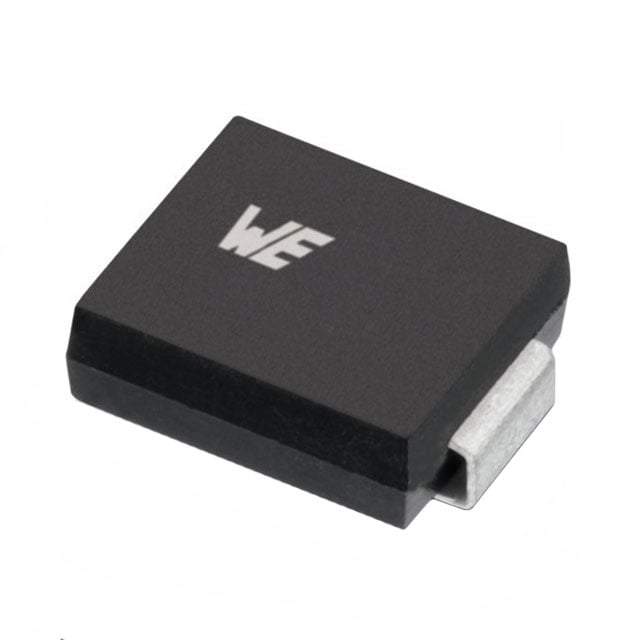

Wurth Elektronik . 824501141

Wurth Elektronik . 824501141

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandWurth Elektronik
jsonUrlData9217301
moq, multiple, Number of Elements per Chip1
MPN824501141
SKU921-7301
Diode ConfigurationSingle
Maximum Operating Temperature+150 °C
Length4.24mm
Maximum Clamping Voltage23.2V
Minimum Breakdown Voltage16.4V
Maximum Peak Pulse Current17.2A
Package TypeDO-214AC (SMA)
Mounting TypeSurface Mount
Minimum Operating Temperature-65 °C
Width2.67mm
Test Current1mA
Maximum Reverse Leakage Current1µA
Height2.14mm
Pin CountPin Count
DimensionsDimensions
Direction TypeDirection Type
Peak Pulse Power DissipationPeak Pulse Power Dissipation
StockStock

Distributor offers

SellerSKUMOQIn stockMultiplePrices
RS Delivers921-730111
Digi-Key732-9951-1-ND111 @ $0.27, 10 @ $0.25, 100 @ $0.23, 500 @ $0.20
Newark81Y9937551 @ $0.33, 10 @ $0.31, 25 @ $0.30, 50 @ $0.29, 100 @ $0.28
Digi-Key587075711
Digi-Key587110411
