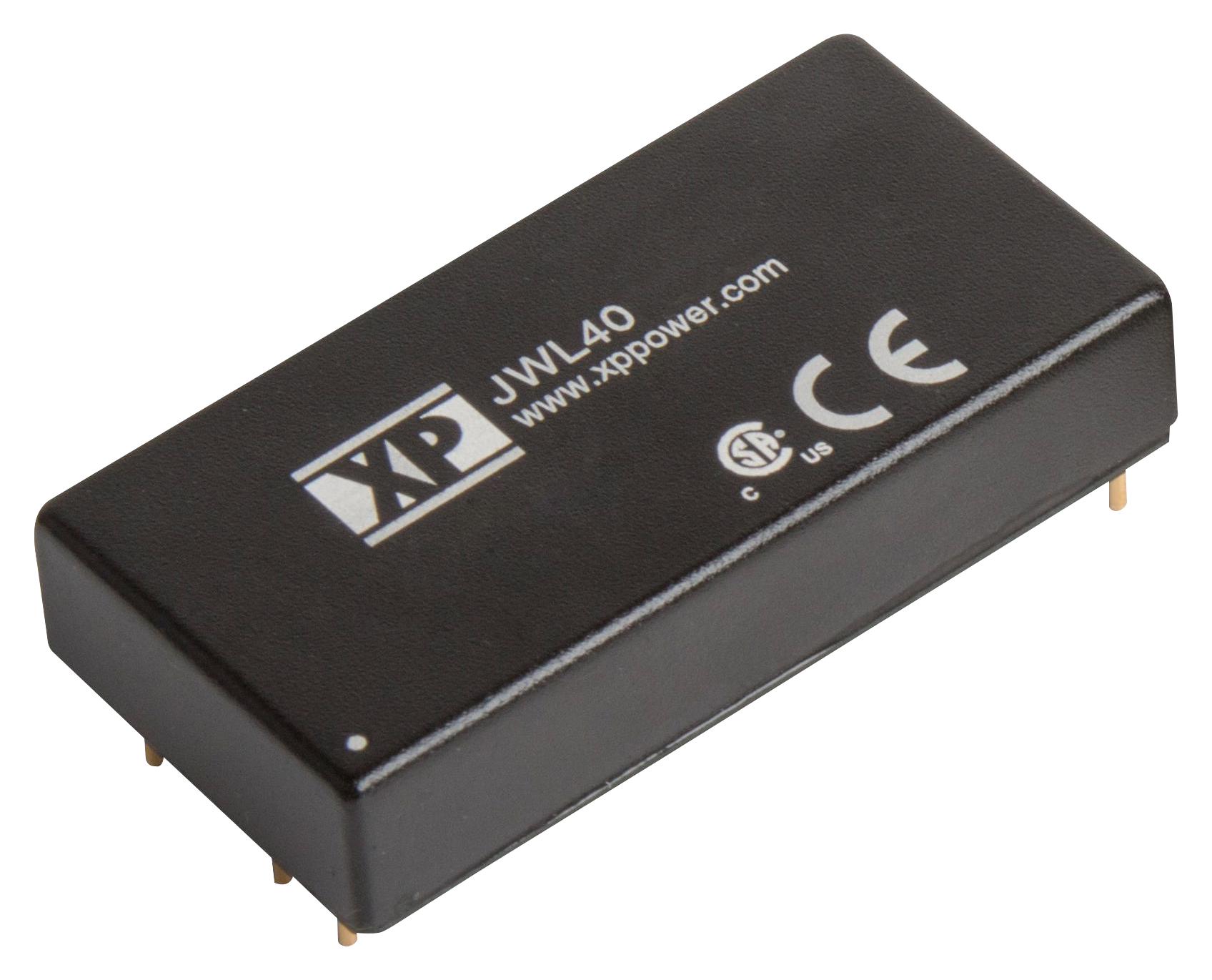

JWL4024S05 XP Power | Power Supplies - Board Mount | DigiKey
DC-DC Converter, Thru Hole, DIP, 40W, 5V@8A, 9-36V In, JWL Series
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | XP Power |
|---|---|
| Extra Product Name | JWL4024S05 XP Power | Power Supplies - Board Mount | DigiKey |
| atoms, minimum, moq, multiple, tierMinQty1, Number of Outputs | 1 |
| MPN | JWL4024S05 |
| qtyInStock | 85 |
| SKU | 1470-3398-ND |
| tierMinQty2 | 5 |
| tierMinQty3 | 10 |
| tierMinQty4 | 25 |
| tierMinQty5 | 100 |
| tierPrice1 | 79.00000 |
| tierPrice2 | 76.63000 |
| tierPrice3 | 74.26000 |
| tierPrice4 | 71.10000 |
| tierPrice5 | 66.36050 |
| Part Status | Active |
| Type | Isolated Module |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2, Voltage - Output 3, Voltage - Output 4 | - |
| Current - Output (Max) | 8A |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40?C ~ 105?C |
| Efficiency | 90% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Control Features | Enable, Active High |
| Power (Watts) | 40 W |
| Voltage - Isolation | 1.5 kV |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 1470-3398-ND | 1 | 85 | 1 | 1 @ $79.00, 5 @ $76.63, 10 @ $74.26, 25 @ $71.10, 100 @ $66.36 | |
 Newark | 78Y4500 | 10 | 10 | 10 @ $84.96, 25 @ $81.34, 100 @ $75.92 | |
| RS Online | 1672343 | 1 | 1 | ||
| RS Delivers | 167-2343 | 1 | 1 | 1 @ $846.44, 5 @ $821.04, 10 @ $795.65, 25 @ $770.25, 50 @ $744.87 | |
| Allied Electronics | 71929516 | 10 | 10 | ||
 AmazonTP | B07NVJ78L2 | 1 | 1 | 1 @ $104.25 | |
| AmazonUNK | B07NVJ78L2 | 1 | -2 | 1 | 1 @ $104.25 |
 Newark | 05AC8511 | 1 | 1 | 1 @ $68.91, 5 @ $66.84, 10 @ $57.89 | |
| Digi-Key | 5956224 | 1 | 1 | 1 @ $90.38, 5 @ $87.67, 10 @ $84.96, 25 @ $81.34, 100 @ $75.92 | |
| RS Delivers | 122-4503 | 1 | 1 | 1 @ $81.42, 5 @ $78.98, 10 @ $76.54, 25 @ $74.10, 50 @ $71.66 | |
| RS Online | 1224503 | 1 | 1 | ||
| us.rs-online.com | 71929516 | 10 | 10 | 10 @ $84.96, 30 @ $81.34, 100 @ $75.92 |
