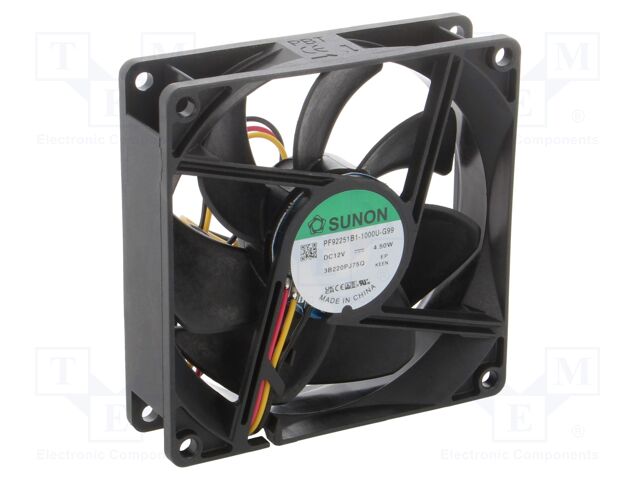

SUNON PF92251B1-1000U-G99 | Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball bearing
SUNON PF92251B1-1000U-G99 | Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball bearin
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SUNON |
|---|---|
| CategoryL1 | Fans, Cooling and Heating Systems |
| CategoryL2 | DC Fans |
| CategoryL3 | DC12V Fans |
| DimensionUnit | m |
| Extra Product Name | SUNON PF92251B1-1000U-G99 | Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball bearing |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | b48db17f0c9706dbbaea6dacfff0616f. |
| jsonUrlData2 | 9118c48547355e136579 |
| keywords | SUNON, PF92251B1-1000U-G99, PF92251B1-G99-A, Fans, Cooling and Heating Systems, DC Fans, DC12V Fans |
| length | 0.3 |
| length_Attrib | Cable length |
| MPN | PF92251B1-1000U-G99 |
| qtyInStock | 973 |
| SKU | PF92251B1-G99-A |
| snippet | SUNON PF92251B1-1000U-G99 | Fan: DC; axial; 12VDC; 92x92x25mm; 127.4m3/h; 46.1dBA; ball bearin |
| tierMinQty2 | 10 |
| tierMinQty3 | 50 |
| tierPrice1 | 13.3 |
| tierPrice2 | 11.92 |
| tierPrice3 | 9.98 |
| Type of fan | DC |
| Kind of fan | axial |
| Operating voltage | 6...13.8V |
| Fan dimensions | 92x92x25mm |
| Power consumption | 4.5W |
| Current rating | 360mA |
| Fan efficiency | 127.4m |
| Noise level | 46.1dBA |
| Kind of Bearing | ball bearing |
| Signal output | F type |
| Rotational rate/speed | 4500rpm |
| Current and power consumption tolerance | ?15% |
| Min insulation resistance | 10M? |
| Impeller material, Enclosure material | thermoplastic |
| Insulation class | A |
| Leads | lead x3 |
| Operating temperature | -10...70?C |
| Cable length | 0.3m |
| Flammability rating | UL94V-0 |
| Additional functions | Autorestart |
| Fan motor | brushless DC |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| PF92251B1-G99-A | 1 | 973 | 1 | 1 @ $13.30, 10 @ $11.92, 50 @ $9.98 |
