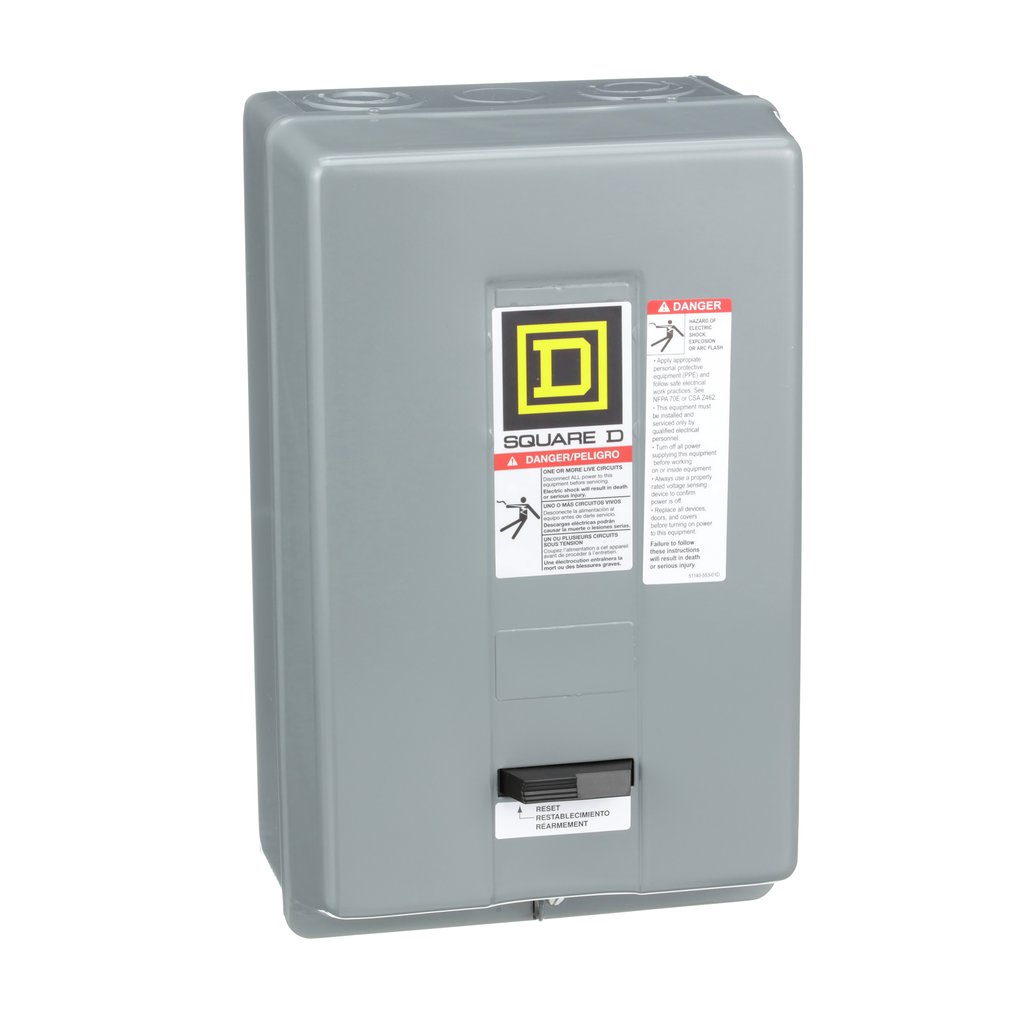

NEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 208 VAC coil, NEMA 1 | Mayer Electric

Mayer Electric Supply . 8536SDG1V08S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameNEMA Motor Starter, Type S, nonreversing, Size 2, 45A, 25 HP at 460 VAC, 5 kA SCCR, 3 phase, 3 pole, melting alloy, 208 VAC coil, NEMA 1 | Mayer Electric
UPC785901098850
depth, length160.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Non-Reversing-Starter-Size-2-3-Pole-Melting-Alloy-Overload-NEMA-1-Options-785901098850
jsonUrlData29babc4aa-d684-4122-943e-abd200612d8b
length_AttribDepth
moq, multiple, tierMinQty11
MPN8536SDG1V08S
qtyInStock0
SKUSQD8536SDG1V08S
tierPrice11196.29
width198.0
width_AttribWidth
Motor Starter Typenon reversing
Range Of ProductS
Product Or Component Typemotor starter
Warranty18 months
Local Signallingwithout pilot light
Thermal Overload Typemelting alloy 3
Height322 mm
Auxiliary Contact Compositionwithout
Nema Size2
[Uc] Control Circuit Voltage208 V AC 60 Hz
Poles Description3P
Rated Power In Hp10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC
Electrical Connectionscrew clamp terminals
Line Rated Current45 A
Control Typeno control units
Control Circuitseparate control circuit
Width198 mm
Depth160 mm
Phase3 phase
[Ue] Rated Operational Voltage600 V AC
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL Listed || CSA || NEMA
Nema Degree Of ProtectionNEMA 1 painted sheet steel

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8536SDG1V08S111 @ $1196.29
