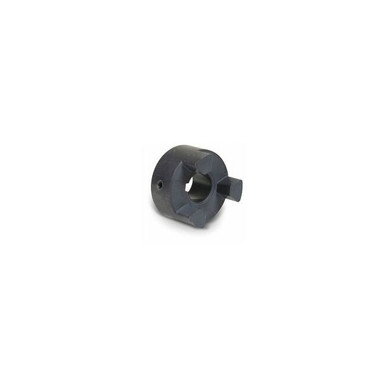

L09922MM L099X22MM L-JAW HUB
L09922MM L099X22MM L-JAW HUB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Hub Halves |
| Extra Product Name, snippet | L09922MM L099X22MM L-JAW HUB |
| moq, multiple | 3 |
| MPN | L09922MM |
| qtyInStock, Max parallel misalignment | 0 |
| SKU | 341420 |
| tierMinQty1 | 1 |
| tierPrice1 | 23.47 |
| Bore size | 22MM |
| Keyway | 6 mm x 2.8 mm |
| Product family | L-jaw hub |
| Size code | 99 |
| Dimension (in) (S) | 0.52 |
| Overall length | 73 |
| Dimension (in ) (OD) | 2.530 |
| Max compatible bore size | 30 |
| Setscrew length (in) | 3/8 |
| Hub material, Material type | Sinter carbon steel |
| Max speed, Max RPM | 7000 |
| Setscrew length | 0.375 |
| Dimension (in) (LTB) | 1.06 |
| Bore shape | Finish with keyway |
| Min compatible bore size | 12 |
| Setscrew size | 5/16 18 UNC - 2B |
| Jaw type | Straight |
| Dimension (in) (HD) | 2.53 |
| Length-through-bore | 27 |
| Center | 0.75 |
| O D | 64 |
| Bore tolerance (in) | +0.020MM/. 041MM |
| Bore tolerance | +.020/.041 |
| Coupling size | L099 |
| Keyseat | 6MM X 2.8MM |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 341420 | 3 | 3 | 1 @ $23.47 | |
| Grainger | 1CXU8 | 1 | 1 | ||
| Applied Industrial | 105294033 | 1 | 1 | ||
| sustainablesupply.com | C1659992 | 1 | -2 | 1 | 1 @ $24.68 |
 Zoro | G1635496 | 1 | 28 | 1 | 1 @ $17.99 |
 simsupply.com | ZO-G1635496 | 1 | 18 | 1 | 1 @ $28.01 |
