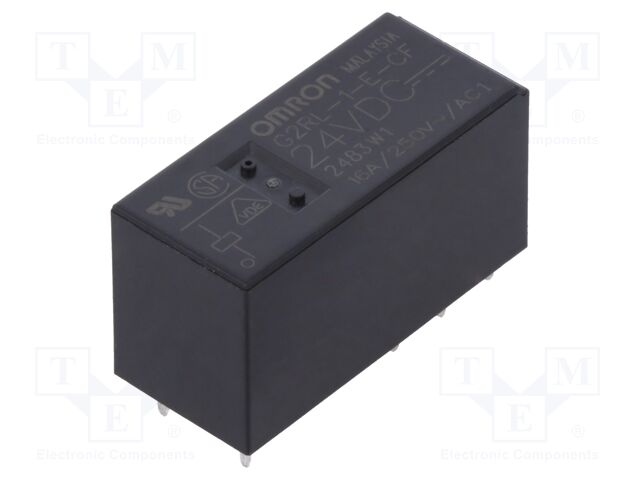

OMRON OCB G2RL-1-E-CF 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A
OMRON OCB G2RL-1-E-CF 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RL-1-E-CF 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | df938c79e5a3422d4b6fc609246d727c. |
| jsonUrlData2 | f4daccaf0549d480456c |
| keywords | OMRON OCB, G2RL-1-E-CF 24VDC, G2RL-1-E-CF-24DC, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | G2RL-1-E-CF 24VDC |
| qtyInStock | 0 |
| SKU | G2RL-1-E-CF-24DC |
| snippet | OMRON OCB G2RL-1-E-CF 24VDC | Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 16 |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.28 |
| tierPrice2 | 2.98 |
| tierPrice3 | 2.31 |
| tierPrice4 | 2.17 |
| tierPrice5 | 2.01 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 16A |
| AC contacts rating @R | 16A / 250V AC |
| DC contacts rating @R | 16A / 24V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 1.44k? |
| Operate time | 15ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | G2RL |
| Contact resistance | 100m? |
| Terminal pitch | 5mm |
| Coil current | 16.7mA |
| Enclosure description | standard seal |
| Leads | for PCB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RL-1-E-CF-24DC | 1 | 1 | 1 @ $3.28, 5 @ $2.98, 25 @ $2.31, 100 @ $2.17, 500 @ $2.01 |
