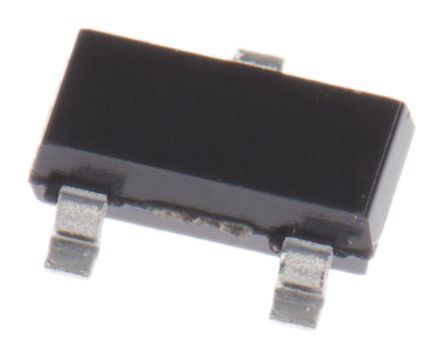

ON Semiconductor . SZESD7272LT1G
40V Clamp 16A Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Brand | ON Semiconductor |
|---|---|
| jsonUrlData | 1859132 |
| moq, multiple, tierMinQty1 | 29 |
| MPN | SZESD7272LT1G |
| SKU | 185-9132 |
| tierMinQty2 | 290 |
| tierMinQty3 | 2900 |
| tierMinQty4 | 29000 |
| tierMinQty5 | 87000 |
| tierPrice1 | 0.183 |
| tierPrice2 | 0.127 |
| tierPrice3 | 0.053 |
| tierPrice4 | 0.036 |
| tierPrice5 | 0.028 |
| Diode Configuration | Single |
| Maximum Operating Temperature | +175 °C |
| ESD protection | Yes |
| Number of Elements per Chip | 1 |
| Length | 3.04mm |
| Maximum Clamping Voltage | 40V |
| Minimum Breakdown Voltage | 27V |
| Maximum Peak Pulse Current | 16A |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Capacitance | 2pF |
| Minimum Operating Temperature | -55 °C |
| Width | 1.4mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | Maximum Reverse Leakage Current |
| Height | Height |
| Pin Count | Pin Count |
| Dimensions | Dimensions |
| Automotive Standard | Automotive Standard |
| Working Voltage | Working Voltage |
| Stock | Stock |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| 185-9132 | 29 | 29 | 29 @ $0.18, 290 @ $0.13, 2900 @ $0.05, 29000 @ $0.04, 87000 @ $0.03 | ||
 Newark | 84AC7335 | 5 | 5 | 1 @ $0.29, 10 @ $0.20, 25 @ $0.17, 50 @ $0.15, 100 @ $0.12, 250 @ $0.12, 500 @ $0.11, 1000 @ $0.10 | |
| RS Delivers | 185-8167 | 1 | 1 | ||
| Digi-Key | 9764868 | 6000 | 6000 | 6000 @ $0.08 | |
| Newark | 73AC4963 | 1 | 1 | ||
| Digi-Key | 9764757 | 6000 | 6000 | 6000 @ $0.08 | |
| Digi-Key | 9764974 | 1 | 1 | 6000 @ $0.09 |
