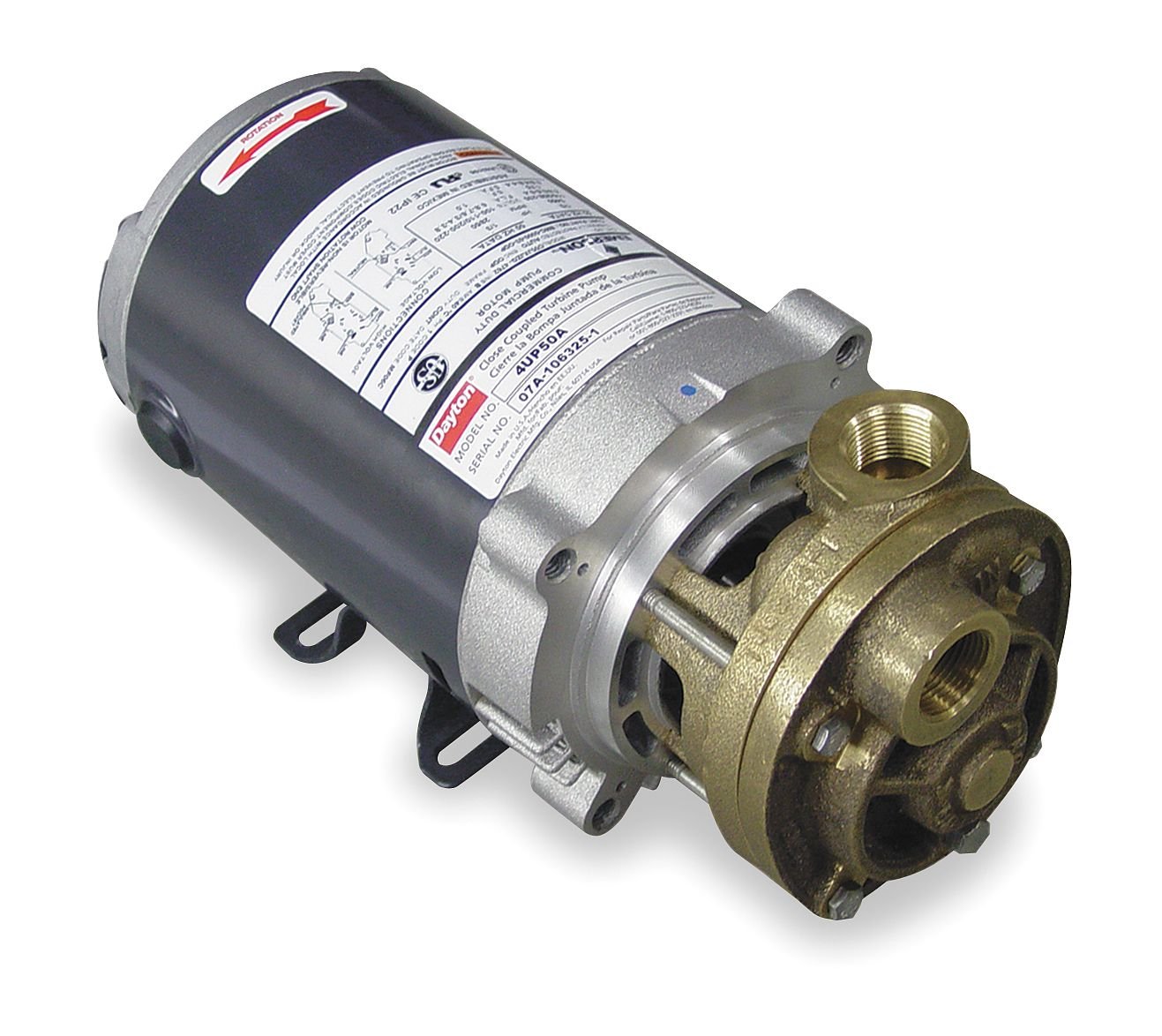

Turbine Pump, HP 1/2, Phase 1, Voltage 115/208-230, Inlet (In.) 3/4, Outlet (In.) 3/4, Motor Enclosure ODP, NEMA/IEC Frame 56C, Motor Type Cap-Start, ODP, Wetted Materials Bronze, Impeller Material Bronze, Housing Material Bronze, Volute Material Bronze, Screw Material Steel, Seal Type Type 21, Seal Material Carbon, Ceramic, Buna, Seal Application Low Flow, High Head, Max. Liquid Temp. (F) -20 to 230, GPM @ 10 PSI 6.2, GPM @ 20 PSI 5.8, GPM @ 30 PSI 5.5, GPM @ 50 PSI 4.8, GPM @ 60 PSI 4.5, GPM @ 75 PSI 4.0, Max. Pressure (PSI) 300, Best Efficiency GPM @ Head (Ft.) 4.7 GPM @ 52 PSI, Best Efficiency Range GPM @ Head (Ft.) 3.8-6.0 GPM @ 80-17 PSI, Max. Specific Gravity 1.00 SP, Max. Case Pressure (PSI) 300, Max. Fluid Viscosity 250 SSU, Inlet Pressure (PSI) 200, Impeller Type Regenerative Turbine, Bearing Type Sealed Ball Bearing (Motor Bearing), Duty Continuous, Max. Dia. Solids (In.) 25 Microns, Port Rotation 90 Increments, Drain Plug 180 From Inlet Port, Agency Compliance UL, CE & CSA WARNING: California ResidentsThis product can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
