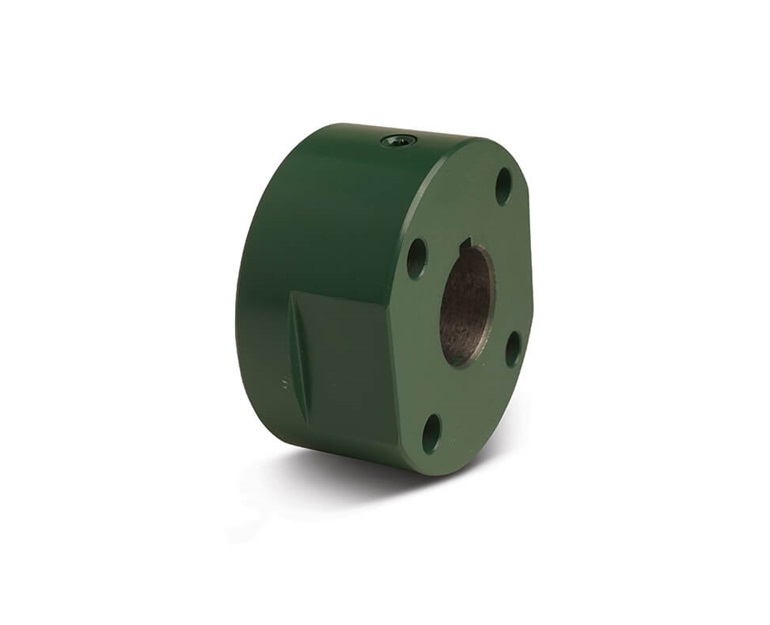

9SCHMPB 9SC-HX7/8 MPB SF HUB

9SCHMPB 9SC-HX7/8 MPB SF HUB

TB Woods . 9SCHMPB

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerTB Woods
CategoryL1Shaft Couplings and Collars
CategoryL2Elastomeric Sleeve Couplings
CategoryL3Components
CategoryL4Hubs
Extra Product Name, snippet9SCHMPB 9SC-HX7/8 MPB SF HUB
moq, multiple, tierMinQty11
MPN9SCHMPB
qtyInStock0
SKU338958
tierPrice180.91
Bore size7/8 in
Material typeHigh strength cast iron
Capscrew torque requirement31 in-lbs
Setscrew size, location3/8 16 UNC, over keyseat
Setscrew length (in)1/2
Max speed, Max RPM3750
Setscrew length0.5
Max angular gap misalignment0.109 (in) with EPDM/Neoprene Sleeves and 0.028 (in) with Hytrel Sleeves
Capscrew size (in), Capscrew sizeQty 4 -- 3/8 x 2 3/4
Dimension (in) (H)3 5/8
Dimension (in) (S)1 1/4
Setscrew Torque Requirment (ft lbs), Setscrew torque requirement23
Horsepower Rating at 100 RPM57
Min compatible bore size0.4375
Power rating at 100 RPM2.8 kW with EPDM or Neoprene sleeve, 8.5 kW with Hytrel sleeve
Screw sizeSetscrew
Max parallel misalignment11
Component WR2 (lbs ft2), Component WR?0.0608
Keyseat (in), Keyseat sizeNo KS, Suitable for reboring
Screw typeHub, spacer
Torque rate2,340 (in-lbs) with EPDM or Neoprene sleeve; 7,200 (in-lbs) with Hytrel sleeve
Set screw distance1.25
Dimension (in) (C)1 31/32
Capscrew torque requirment (ft lbs)31
SF hub diameter3.625
Max angular misalignment1? with EPDM/neoprene sleeves and 1/4? with hytrel sleeves
Bore tolerance+.0005 to +.0015
Max compatible bore size2.875
Length through bore1.96875
Coupling size9
Torque2,340 in-lb with EPDM or Neoprene sleeve, 7,200 in-lb with Hytrel sleeve
Bore size (in)7/8
Construction typeFinish bore
