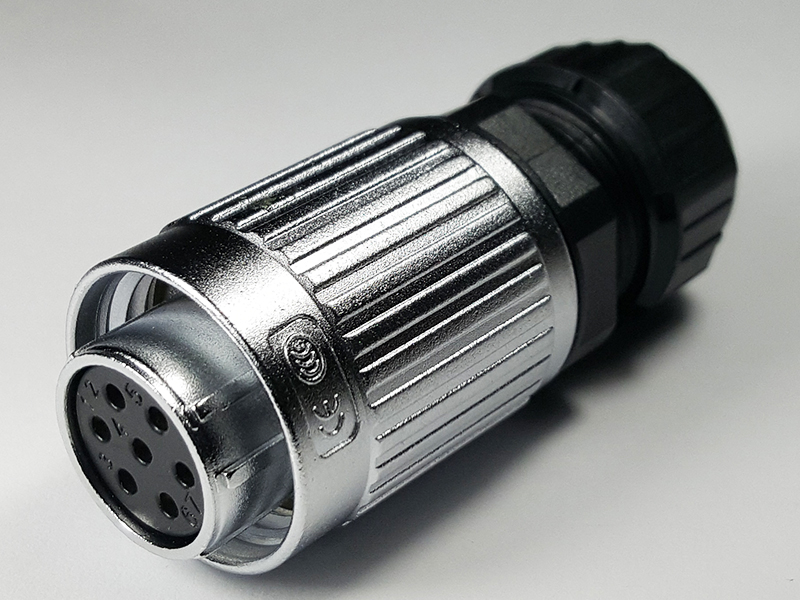

#EEC0969 - 7 Pins waterproof screw on female circular connector plug

#EEC0969 - 7 Pins waterproof screw on female circular connector plug

Cnlinko . YW-20-J07PE-02-001

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCnlinko
keywordsYW-20-J07PE-02-001, 7 Pins screw onfemale circular connector plug, 7 pins waterproof cable connector, 7 pins connector, screw on cable connector,
moq, multiple, tierMinQty11
MPNYW-20-J07PE-02-001
qtyInStock4
SKUCNLINKO - 7 PINS WATERPROOF SCREW ON FEMALE CIRCULAR CONNECTOR PLUG #EEC0969
snippet#EEC0969 - 7 Pins waterproof screw on female circular connector plug
tierPrice116.30
Cable specification1mm??1.5mm?/18?16 AWG
Working temperature-40?F~176?F (-40??80?)
Diameter range?7mm??9mm
Connecting modescrew on
Contact diameter ? number?2.0?7
Assembly wireSolder
Rated Current (A)12A
Housing, the insulating partsHigh-performance engineering plastics
Operating voltage (AC V rms)500V
HardwareZinc Alloy (pearl hard chrome)
Contact resistance<2.5m?
Pins materialCopper alloy (gold-plated 2U)
Withstanding Voltage (AC V) 1 minute2500V
Waterproof circleSilica gel
Insulation resistance?500M?
Flammability ratingUL94-V0
Protection levelIP65/IP67

Distributor offers

SellerSKUMOQIn stockMultiplePrices
hyperton.comCNLINKO - 7 PINS WATERPROOF SCREW ON FEMALE CIRCULAR CONNECTOR PLUG #EEC09691411 @ $16.30
