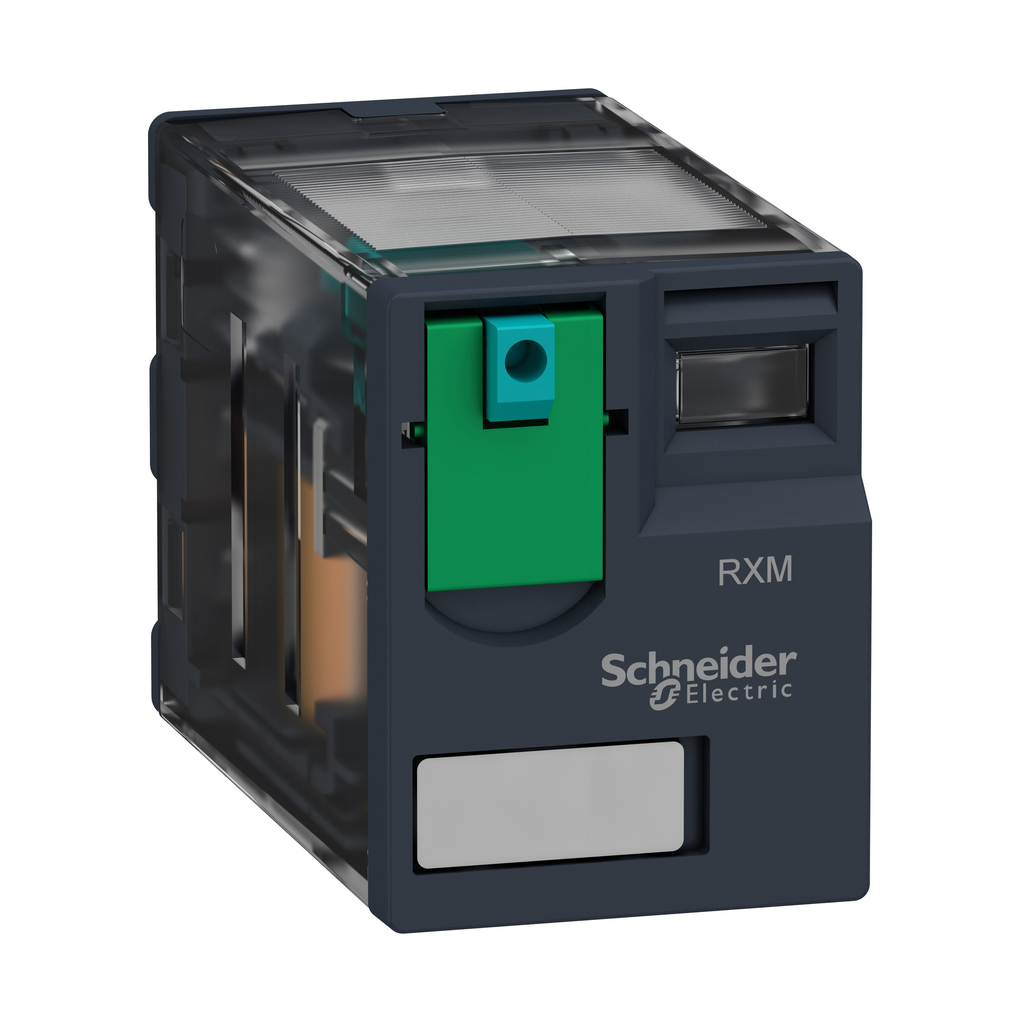

Miniature plug in relay, Harmony, 6A, 4CO, lockable test button, 24V DC | Mayer Electric

Shop SCHNEIDER ELECTRIC at Mayer. Miniature plug-in relay, 6 A, 4 CO, 24 V DC

Mayer Electric Supply . RXM4AB1BD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMiniature plug in relay, Harmony, 6A, 4CO, lockable test button, 24V DC | Mayer Electric
UPC3389119403719
Weight0.037
WeightUnitkg
Weight_AttribNet Weight
height79.0
height_AttribCad Overall Height
jsonUrlData/Product/SCHNEIDER-ELECTRIC-Miniature-plug-in-relay-6-A-4-CO-24-V-DC-785901646150
jsonUrlData2d922475a-94f4-478c-978e-abd200630add
keywordsSQUARE D, Mayer SQUARE D, 785901646150, RXM4AB1BD
length78.45
length_AttribCad Overall Depth
moq, multiple, tierMinQty11
MPNRXM4AB1BD
qtyInStock0
SKUSQDRXM4AB1BD
snippetShop SCHNEIDER ELECTRIC at Mayer. Miniature plug-in relay, 6 A, 4 CO, 24 V DC
tierPrice19.49
Pollution Degree2
Ip Degree Of ProtectionIP40 conforming to EN/IEC 60529
Ambient Air Temperature For Storage-40-85 ?C
Ambient Air Temperature For Operation-40-55 ?C
Dielectric Strength1300 V AC between contacts with micro disconnection || 2000 V AC between coil and contact with basic insulation || 2000 V AC between poles with basic insulation
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Product CertificationsUL || CE || GOST || CSA || Lloyd's
Shock Resistance10 gnin operation || 30 gnnot operating
StandardsUL 508 || EN/IEC 61810-1 || CSA C22.2 No 14
Warranty18 months
Reach Free Of Svhc, Rohs Exemption Information, Toxic Heavy Metal Free, Mercury FreeYes
China Rohs RegulationX
Environmental DisclosureENVPEP2106019EN
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach RegulationFree of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileENVEOLI2106019EN
Shape Of Pinflat
Cad Overall Depth78.45 mm
Net Weight0.037 kg
Operating Positionany position
[Uimp] Rated Impulse Withstand Voltage2.5 kV 1.2/50 ?s
Continuous Output Current5 A
Device Presentationcomplete product
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Maximum Switching Capacity1500 VA/168 W
Protection CategoryRT I
Reset Time, Operating Time20 ms
Rated Operational Voltage Limits19.2...26.4 V DC
Average Resistance650 Ohm 20 ?C +/- 10 %
Test Levelslevel A group mounting
Average Coil Consumption0.9 W
Contacts MaterialAgNi
Mechanical Durability10000000 cycles
Maximum Switching Voltage250 V IEC
Load Current6 A 250 V AC || 6 A 28 V DC
Electrical Durability100000 cycles resistive
Minimum Switching Capacity170 mW 10 mA, 17 V
Cad Overall Height79 mm
[Ie] Rated Operational Current3 A 28 V DC) NC IEC || 3 A 250 V AC) NC IEC || 6 A 28 V DC) NO IEC || 6 A 250 V AC) NO IEC || 6 A 277 V AC) UL || 8 A 30 V DC) UL
Drop-Out Voltage Threshold>= 0.1 Uc
Safety Reliability DataB10d = 100000
Status Ledwithout
Control Typelockable test button
Device Short NameRXM
Series NameMiniature
[Uc] Control Circuit Voltage24 V DC
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typeplug-in relay
Utilisation Coefficient20 %
Contacts Type And Composition4 C/O

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDRXM4AB1BD111 @ $9.49
