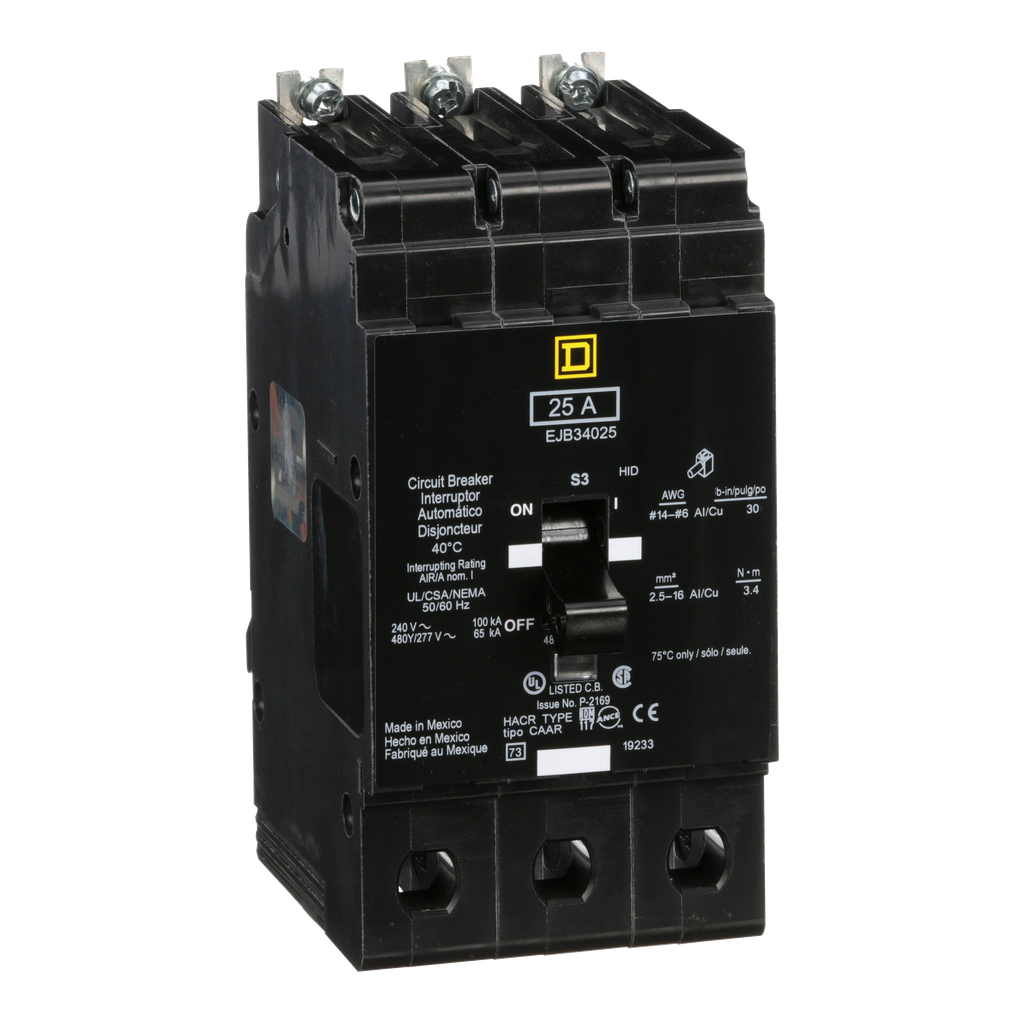

Mini circuit breaker, E-Frame, 25A, 3 pole, 480Y/277VAC, 100kA max, bolt on | Mayer Electric

Mayer Electric Supply . EJB34025

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameMini circuit breaker, E-Frame, 25A, 3 pole, 480Y/277VAC, 100kA max, bolt on | Mayer Electric
UPC785901128830
Weight4
WeightUnitlbs
Weight_AttribNet Weight
depth, length4.05
height5.66
height_AttribHeight
jsonUrlData/Product/SQUARE-D-NF-Panelboard-MCB-EJB34025-785901128830
jsonUrlData2ac5d5810-f9da-409d-84e6-abd2006207aa
length_AttribDepth
moq, multiple, tierMinQty11
MPNEJB34025
qtyInStock0
SKUSQDEJB34025
tierPrice11799.52
width2.94
width_AttribWidth
Module TypeE-Frame
Range Of Product125 A Frame EDB-EGB-EJB
Trip Unit Rating875-875 A
Product Or Component Typeminiature circuit-breaker
Device Short NameEJB
Warranty18 months
Height5.66 in
Holding Current270 A
Tightening Torque3.4-3.4 N.m 2.5-16 mm? (AWG 14...AWG 6)
Breaking Capacity CodeJ
Product DestinationNF panelboard
Electrical Connectionlugs aluminium
Number Of Spaces Required, Number Of Spaces, Number Of Poles3
Net Weight4 lb(US)
Circuit Breaker ApplicationHACR rated || HID rated
Mounting Modebolt-on
Line Rated Current25 A
Protection Typeshort-circuit || overload
Local Signallingtrip indicator
Awg GaugeAWG 12...AWG 6 aluminium || AWG 14...AWG 6 copper
Width2.94 in
Depth4.05 in
Breaking Capacity65 kA 277 V AC || 100 kA 240 V AC || 65 kA 480Y/277 V AC || 100 kA 120 V AC || 100 kA 120/240 V AC
Trip Unit Technologythermal-magnetic
[Ue] Rated Operational Voltage480Y/277 V AC
Rohs Exemption Information, Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Product CertificationscULus
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDEJB34025111 @ $1799.52
