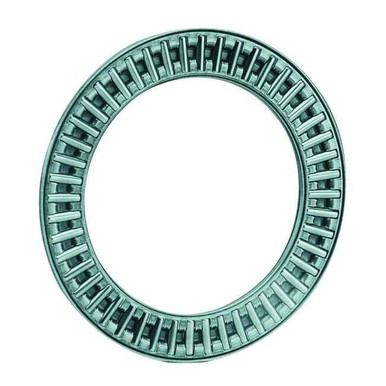

Needle Roller Thrust Bearing, Bearing Industry Number 1730, Bearing Design AXK, Bore Diameter 17 mm, Cage Material Alloy Steel, Compatible Washer AS1730, Lubricant Material Oil, Maximum Speed 12,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Outside Diameter 30 mm, Overall Width 2 mm, Roller Material Alloy Steel, System of Measurement Metric, Thrust Bearing Type Thrust Needle Roller and Cage Assembly, Dynamic Axial Load Capacity 11,900 N

Needle Roller Thrust Bearing, Bearing Industry Number 1730, Bearing Design AXK, Bore Diameter 17 mm, Cage Material Alloy Steel, Compatible Washer AS1730, Lubricant Material Oil, Maximum Speed 12,000 RPM, Maximum Temperature 120 Degrees C, Minimum Temperature -20 Degrees C, Outside Diameter 30 mm, Overall Width 2 mm, Roller Material Alloy Steel, System of Measurement Metric, Thrust Bearing Type Thrust Needle Roller and Cage Assembly, Dynamic Axial Load Capacity 11,900 N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerIna
CategoryId, CategoryIdL35995
CategoryIdL131
CategoryIdL217015
CategoryL1Power Transmission
CategoryL2Bearings, V-belts & Power Transmission Equipment
CategoryL3Thrust Bearings
CategoryL4Needle Thrust Bearings
DimensionUnitinch
GTIN, UPCNone
GraingerSku4ZZN7
UnitOfMeasureEA
Weight0.02
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height0.6
jsonUrlData924526ffbdad25e5923b
length, width2
moq, multiple, tierMinQty11
MPNAXK1730-B/0-5
qtyInStock50
qtyInStockOverride-2
SKUG1776503
tierPrice15.99
urlhttps://www.zoro.com/ina-needle-thrust-roller-bearing-bore-17mm-axk1730-b0-5/i/G1776503/
Bore Dia (mm), Bore Diameter17 mm
Outside Dia (mm), Outside Diameter30 mm
Height (mm), Overall Width2 mm
TypeNeedle Roller
Max RPM, Maximum Speed12,000 RPM
Dynamic Load Capacity (N), Dynamic Axial Load Capacity11,900 N
Static Load Capacity (N)39,500 N
DirectionAxial
Temp Range (F)-5 Degrees to +250 Degrees F
Cage MaterialSteel
ItemNeedle Roller Thrust Bearing
LubricationOil
Minimum Temperature-20 Degrees C
Bearing Industry Number1730
Compatible WasherAS1730
Roller MaterialAlloy Steel
Thrust Bearing TypeThrust Needle Roller and Cage Assembly
Maximum Temperature120 Degrees C
Roller Material Grade100Cr6

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG177650315011 @ $5.99
Allied Electronics7233399211
simsupply.comZO-G177650313711 @ $12.80
