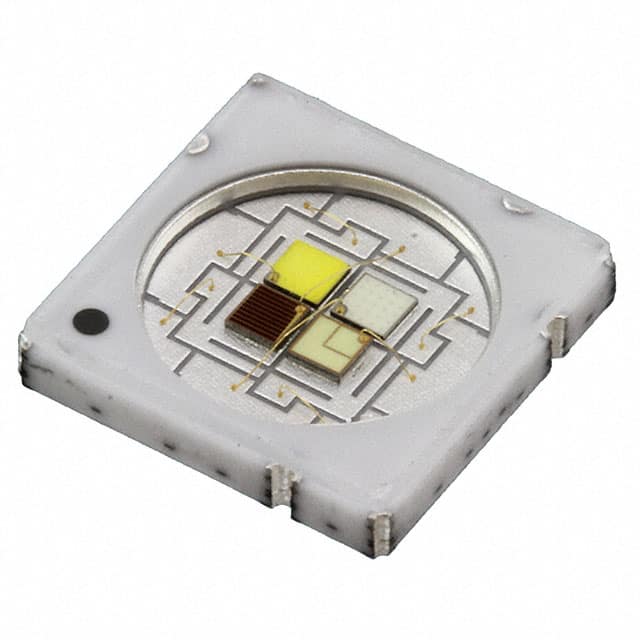

Osram Opto . LZ4-04MDC9-0000
LED Lighting Color series Red, Green, Blue, White - Cool (RGBW) 624nm Red, 525nm Green, 457nm Blue, 6500K White 2828 (7070 Metric)
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | Osram Opto |
|---|---|
| moq, multiple | 1 |
| MPN, SKU, Manufacturer Part Number | LZ4-04MDC9-0000 |
| qtyInStock | 0 |
| Color | Red, Green, Blue, White - Cool (RGBW) |
| Current - Max | 1A Red, 1A Green, 1A Blue, 1A White |
| Current - Test | 700mA Red, 700mA Green, 700mA Blue, 700mA White |
| Flux @ Current/Temperature - Test | 62lm Red, 133lm Green, 24lm Blue, 183nm White |
| Height - Seated (Max) | 0.059" (1.50mm) |
| Lumens/Watt @ Current - Test | 35 lm/W Red, 53 lm/W Green, 11 lm/W Green, 82 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2828 (7070 Metric) |
| Packaging | Digi-Reel |
| Series | LuxiGen |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Supplier Device Package | SMD |
| Temperature - Test | 25 |
| Viewing Angle | 110 |
| Voltage - Forward (Vf) (Typ) | 2.5V Red, 3.6V Green, 3.2V Blue, 3.2V White |
| Wavelength | 624nm Red, 525nm Green, 457nm Blue, 6500K White |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| iodParts | LZ4-04MDC9-0000 | 1 | 1 | ||
| Digi-Key | 4976797 | 1 | 1 | ||
| Digi-Key | 4976869 | 1 | 1 |
