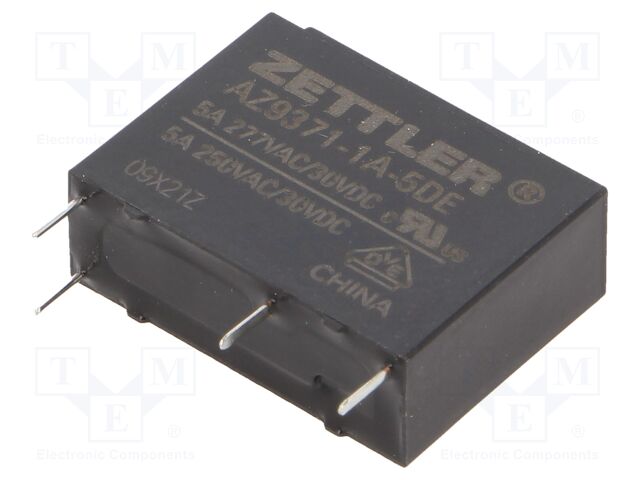

ZETTLER AZ9371-1A-5D | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; PCB
ZETTLER AZ9371-1A-5D | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | ZETTLER |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | ZETTLER AZ9371-1A-5D | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 85cd43e6c68caa83b6dff7979ba68a49. |
| jsonUrlData2 | ac780e1de4741ebaf1ec |
| keywords | ZETTLER, AZ9371-1A-5D, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN, SKU | AZ9371-1A-5D |
| qtyInStock | 822 |
| snippet | ZETTLER AZ9371-1A-5D | Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 5A; 5A/277VAC; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierPrice1 | 1.12 |
| tierPrice2 | 1.09 |
| tierPrice3 | 1.06 |
| tierPrice4 | 0.97 |
| Type of relay | electromagnetic |
| Contacts configuration | SPST-NO |
| Rated coil voltage | 5V DC |
| Contact current max | 5A |
| AC contacts rating @R | 5A / 277V AC |
| DC contacts rating @R | 5A / 30V DC |
| Switched voltage | max. 30V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 125? |
| Body dimensions | 20.5x7.2x15.3mm |
| Coil power consumption | 113mW |
| Operating temperature | -40...105?C |
| Relay series | AZ9371 |
| Contact resistance | 100m? |
| Terminal pitch | 7mm |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| AZ9371-1A-5D | 1 | 822 | 1 | 1 @ $1.12, 5 @ $1.09, 25 @ $1.06, 100 @ $0.97 |
