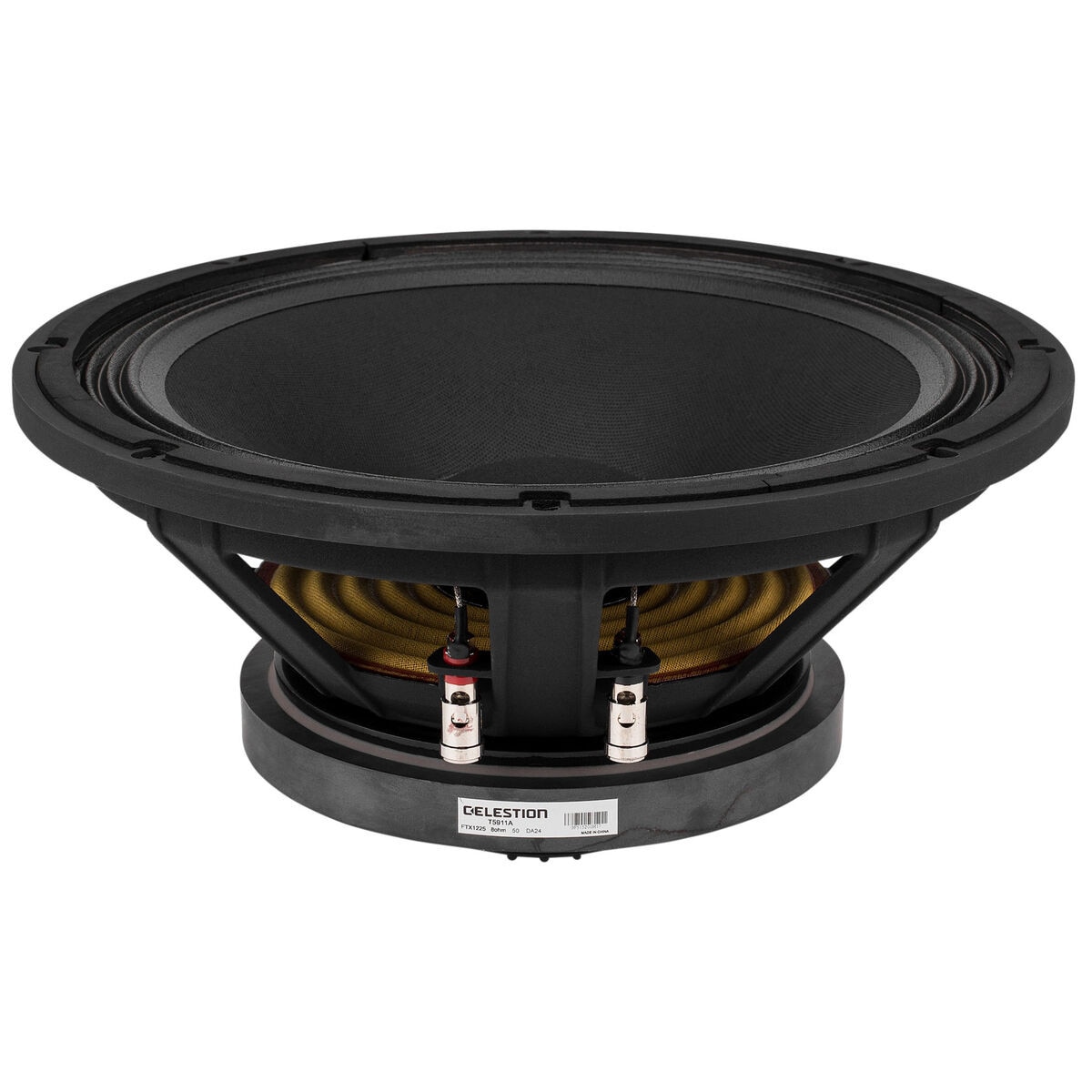

Celestion FTX1225 12" Coaxial Full-Range Professional Driver

Celestion FTX1225 12" Coaxial Full-Range Professional Driver. Part Number: 294-2098 by Celestion.

Celestion . FTX1225

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCelestion
DimensionUnitinch
Extra Product NameCelestion FTX1225 12" Coaxial Full-Range Professional Driver
UPC739894591157
Weight15.5
WeightUnitlbs
depth, length6.61
diameter, height, width12.5
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelFTX1225
qtyInStockOnly 3 In Stock
SKU, Part Number294-2098
snippetCelestion FTX1225 12" Coaxial Full-Range Professional Driver. Part Number: 294-2098 by Celestion.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.75
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance8?
Frequency Response50 to 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2.5"
Resonant Frequency (Fs)42.1Hz
DC Resistance (Re)5.74?
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)3.35
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.4
Compliance Equivalent Volume (Vas)0.43ft?
Mechanical Compliance of Suspension (Cms)0.3mm/N
BL Product (BL)12.54T?m
Diaphragm Mass Inc Airload (Mms)47.53g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)169.1cm?
Cone MaterialPaper / Kevlar
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite
Overall Outside Diameter12.5"
Baffle Cutout Diameter11.25"
Depth6.61"
# Mounting Holes8
Sealed Volume0.85ft?
Sealed F391.4Hz
Vented Volume1.13ft?
Vented F336.1Hz
