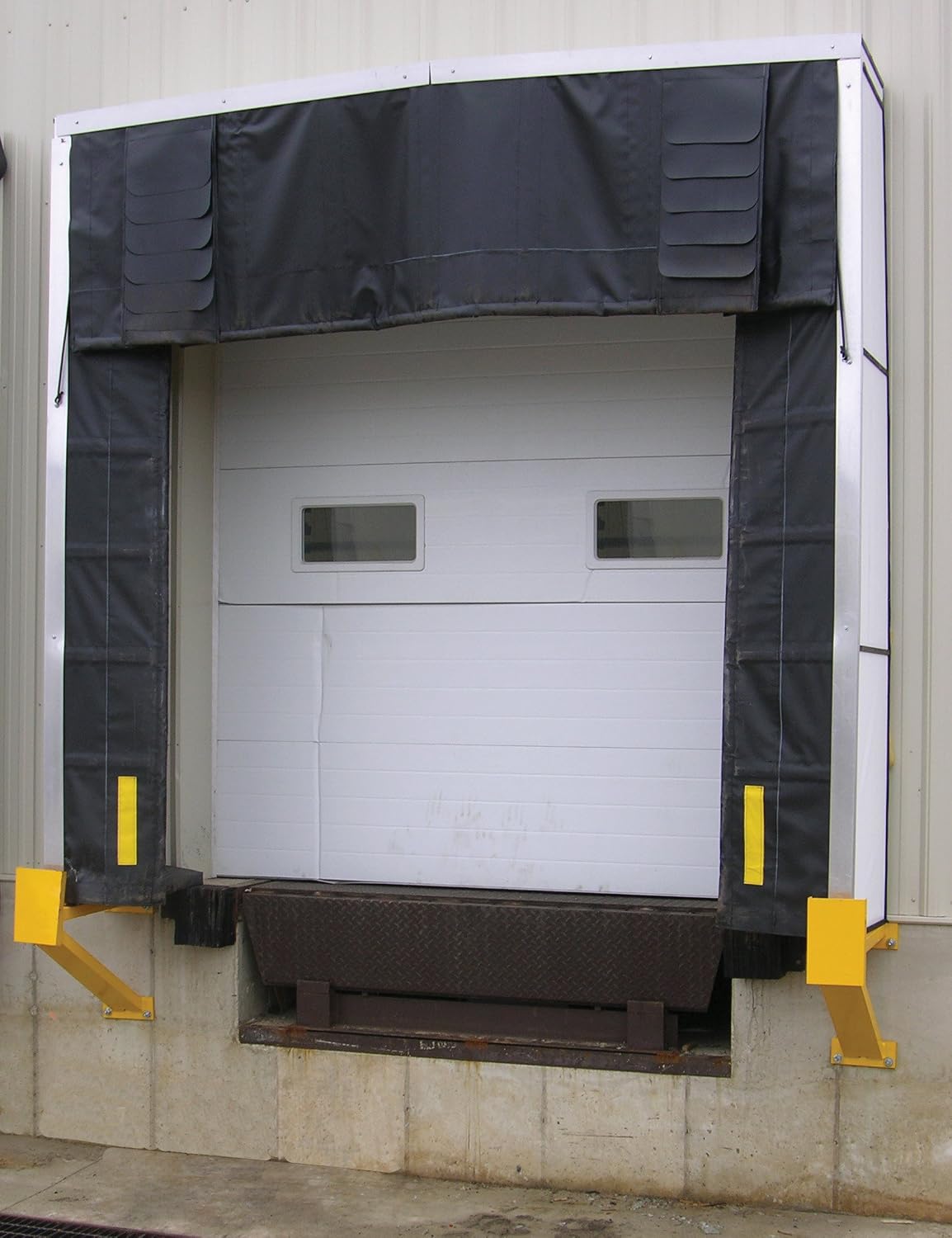

Vestil dock shelter. Top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114-inches width with a 30-inches drop curtain. Side (verticals) measure 120-inches tall and contain high density foam mounted to treated lumber. Once mounted, the face of the vertical will measure 12-inches width and will taper to 9-1/2-inches at wall. Verticals are mounted on wooden 2-inches by 12-inches to allowing wall mounting down the length of the vertical pieces. Applications with a flush dock to building in conjunction with an Edge-O-Dock use a 20-inches projection Dock Seal. Units are non-returnable. 10-inches projection. For use with 10-feet width by 10-feet height door size. 36-inches projection. This versatile unit utilizes seal sides and a shelter top. Measures 132-inches width by 126-inches height.

Vestil dock shelter. Top (header) is constructed of wolmanized lumber and is built with a slope to allow for water run-off. Header measures 114-inches width with a 30-inches drop curtain. Side (verticals) measure 120-inches tall and contain high density foam mounted to treated lumber. Once mounted, the face of the vertical will measure 12-inches width and will taper to 9-1/2-inches at wall. Verticals are mounted on wooden 2-inches by 12-inches to allowing wall mounting down the length of the vertical pieces. Applications with a flush dock to building in conjunction with an Edge-O-Dock use a 20
