10073456-050LF Amphenol ICC (FCI) | Connectors, Interconnects | DigiKey

Connector Header Through Hole 40 position 0.100\

Amphenol ICC (FCI) . 10073456-050LF

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, MfrAmphenol ICC (FCI)
Extra Product Name10073456-050LF Amphenol ICC (FCI) | Connectors, Interconnects | DigiKey
atoms, minimum, moq, multiple1
MPN10073456-050LF
qtyInStock0
SKU10073456-050LF-ND
Part Status, Operating Temperature, Ingress Protection, Current Rating (Amps), Voltage Rating, Mated Stacking Heights, Applications-
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating, Row Spacing - Mating0.100" (2.54mm)
Number of Positions40
Number of Rows2
Number of Positions LoadedAll
StyleBoard to Board or Cable
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationPress-Fit, Solder
Fastening TypePush-Pull
Contact Length - Mating0.230" (5.84mm)
Contact Length - Post0.160" (4.06mm)
Overall Contact Length0.510" (12.95mm)

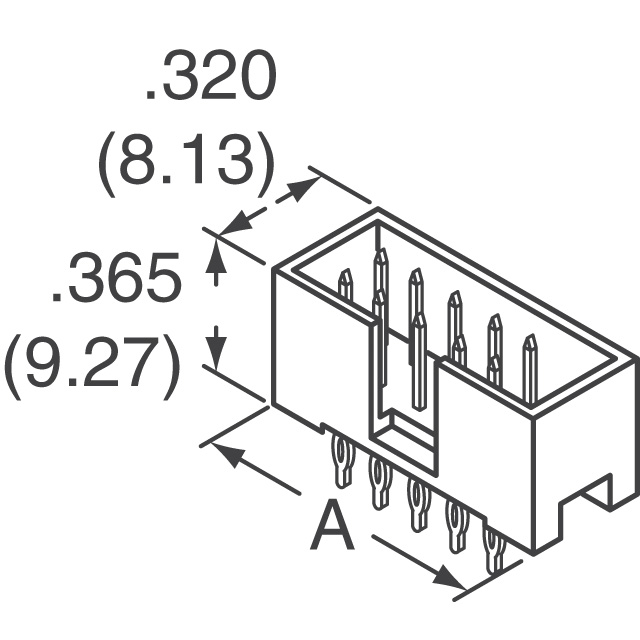

Insulation Height0.365" (9.27mm)
Contact ShapeSquare
Contact Finish - MatingGold, GXT?
Contact Finish Thickness - Mating30.0?in (0.76?m)
Contact Finish - PostTin
Contact MaterialPhosphor Bronze
Insulation MaterialPolyester, Glass Filled
FeaturesKeying Slot
Material Flammability RatingUL94 V-0
Insulation ColorBlue
Contact Finish Thickness - Post40.0?in (1.02?m)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
Digi-Key10073456-050LF-ND11
Digi-Key520616311370 @ $11.48
