Order YA1CL2NT14E2 by Burndy 25014141 Compression Connector, 1 AWG, Two Hole, (Pack of 100 pcs) - US Mega Store

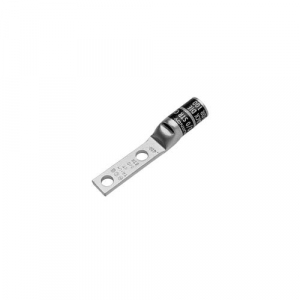

The Burndy YA1CL2NT14E2 terminal features a two-hole design with a 1/4" stud hole size and 3/4" stud hole spacing. It has a narrow tongue width of 0.50" and a length of 2.68". This terminal is designed for use with #1 AWG conductors and is constructed with a standard barrel and copper compression. It is packaged in a quantity of 100.

Burndy, YA1CL2NT14E2, 25014141 Compression Connector, 1 AWG CU, Two Hole Copper Compression Lug, NarrowTongue, 2 Hole with Inspection Window, #1 AWG, 1/4" Stud, 5/8" Stud Hole Spacing, Tin Plated.

Burndy . YA1CL2NT14E2

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioBurndy
CategoryL1Networking & Wiring
CategoryL2Wire Connectors
CategoryL3Burndy YA1CL2NT14E2
ConditionNEW
DimensionUnitinch
Extra Product NameOrder YA1CL2NT14E2 by Burndy 25014141 Compression Connector, 1 AWG, Two Hole, (Pack of 100 pcs) - US Mega Store
diameter, height, length0.46
height_Attrib, length_AttribDimension - Outside Diameter inch
moq, multiple, tierMinQty1, Item_package_quantity, PackageQuantity1
MPN, SKU, Part Number, Model, ModelNumber, Model_number, PartNumber, Part_numberYA1CL2NT14E2
qtyInStock-2
qtySourceFieldMap
tierPrice114.77
width0.5
width_AttribDimension - Pad Width inch
UPC, EAN, EANList, UPCList781810168332
Product GroupBISS
Connector TypeTerminal
Die Index11
Feature - Barrel StyleChamfered
Feature - Barrel TypeStandard
MaterialCopper
Physical Attribute - Number of Holes2
PlatedY
Plating TypeTin - Electro Plated
Dimension - B Length fraction7/8 in
Dimension - B Length inch0.88 in
Dimension - Bolt Hole Size inch, Dimension - Hole Size inch0.27 in
Dimension - D inch1.39 in
Dimension - L Length Overall mm68 mm
Dimension - Length Overall inch2.68 in
Dimension - N inch0.31 in
Dimension - Outside Diameter inch0.46 in
Dimension - Pad Width inch0.50 in
Dimension - Strip Length inch15/16
Dimension - Stud Size inch1/4
Dimension - Z inch0.33 in
Physical Attribute - Tongue AngleStraight
Rating - KVA35 kV
Rating - Minimum Voltage600
Voltage - Maximum35000
Conductor - Copper DLO Size RangeN/A
Conductor - Copper Str Navy Size, Conductor - Copper Str Navy Size Range75 (37) Navy
Conductor - Copper Str Size, Conductor - Copper Str Size Range1 AWG
Certification - CSA Approved, UL ListedYes
Certification - ETL, Certification - UL Recognized, Certification - cULusNo
Industry Standard(s)UL 486A-486B
Standards - RoHS Compliance StatusCM
ASIN, AsinB00CBNQIF0
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
BindingMisc.
Bullet_point600 Volts to 35 kV Conductor: #1 AWG Copper compression narrow tongue terminal UL Listed and CSA certified
Case, NumberOfItems, Number_of_items100
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 306506011 306629011
ClassificationId495266
ColorGreen
DisplayNameElectrical
FeatureCopper compression narrow tongue terminal
Height40 75
Identifier00781810168332 0781810168332 781810168332
IdentifierTypeEAN GTIN UPC
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleBurndy YA1CL2NT14E2 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Narrow Tongue Terminal, #1 AWG Conductor, 1/4" Stud Hole Size, 3/4" Stud Hole Spacing, 0.50" Tongue Width, 2.68" Length (Pack of 100)
Item_type_keywordmultiple-stud-terminals
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameELECTRONIC_COMPONENT
Product_site_launch_date2013-04-12T00:59:54.822Z
Size#1 AWG
Typecable tie ean gtin upc
URLhttp://g-ecx.images-amazon.com/images/G/01/x-site/icons/no-img-sm._CB1275522461_.gif https://images-na.ssl-images-amazon.com/images/I/01RmK+J4pJL._SL75_.gif
Unitvolts
Unit_count1.0
Unitspixels
Voltage600.0
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width60 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
usmegastore.comYA1CL2NT14E21-211 @ $14.77

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Burndy YA1CL2NT14E2 Two Hole Hylug Code Conductor Standard Barrel Copper Compression Narrow Tongue Terminal, #1 AWG Conductor, 1/4" Stud Hole Size, 3/4" Stud Hole Spacing, 0.50" Tongue Width, 2.68" Length (Pack of 100)
Brand: Burndy
Details
  • Copper compression narrow tongue terminal
  • UL Listed and CSA certified
  • 600 Volts to 35 kV
  • Conductor: #1 AWG
Listing
BindingMisc.
Product groupBISS
Product typeELECTRONIC_COMPONENT
ModelYA1CL2NT14E2
Part numberYA1CL2NT14E2
Items per pack100
LabelBurndy
ManufacturerBurndy
Catalog
FeatureCopper compression narrow tongue terminal
CategoryIndustrial & Scientific
MPNYA1CL2NT14E2
UPC781810168332
EAN781810168332
Product groupBISS
Product typeELECTRONIC_COMPONENT
ManufacturerBurndy
