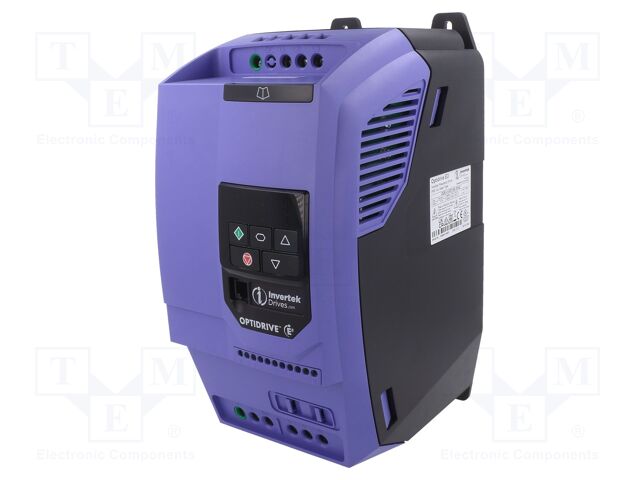

INVERTEK DRIVES ODE-3-320180-3F42 | Vector inverter; Max motor power: 4kW; Out.voltage: 3x230VAC
INVERTEK DRIVES ODE-3-320180-3F42 | Vector inverter; Max motor power: 4kW; Out.voltage: 3x230VA
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | INVERTEK DRIVES |
|---|---|
| CategoryL1 | Automation |
| CategoryL2 | Regulation and Control |
| CategoryL3 | Motor Control |
| CategoryL4 | Three Phase Inverters |
| Extra Product Name | INVERTEK DRIVES ODE-3-320180-3F42 | Vector inverter; Max motor power: 4kW; Out.voltage: 3x230VAC |
| atoms, moq, multiple, tierMinQty1, Number of analog inputs, Number of analog outputs | 1 |
| jsonUrlData | 1b73601345d398470774f3abc9c71170. |
| jsonUrlData2 | 28daa0fe7f6621f65214 |
| keywords | INVERTEK DRIVES, ODE-3-320180-3F42 |
| MPN, SKU | ODE-3-320180-3F42 |
| qtyInStock | 0 |
| snippet | INVERTEK DRIVES ODE-3-320180-3F42 | Vector inverter; Max motor power: 4kW; Out.voltage: 3x230VA |
| tierMinQty2 | 5 |
| tierPrice1 | 548.45 |
| tierPrice2 | 510.62 |
| Type of module | vector inverter |
| Max motor power | 4kW |
| Inverter output voltage | 3 x 230V AC |
| Three-phase power supply voltages range | 3 x 200...240V AC |
| Input 1 properties | rotational speed setting with signal 0...10V, 4...20mA, 0...20mA |
| Voltage output | 0...10V |
| Electrical connection | screw terminals |
| Mounting | for DIN rail mounting, |
| The programming method | keypad, |
| Number of inputs | 4 |
| Operating temperature | -10...50?C |
| Output frequency | 0...500Hz |
| Starting/stopping time | 0.1...600s |
| Current rating | 18A |
| IP rating | IP20 |
| Number of outputs | 2 |
| Manufacturer series | Optidrive E3 |
| Driver features | integrated brake transistor, |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| ODE-3-320180-3F42 | 1 | 1 | 1 @ $548.45, 5 @ $510.62 | ||
| Allied Electronics | 72145849 | 1 | 1 | ||
| us.rs-online.com | 72145849 | 1 | 8 | 1 | 1 @ $513.29, 5 @ $489.60 |
