Hamilton

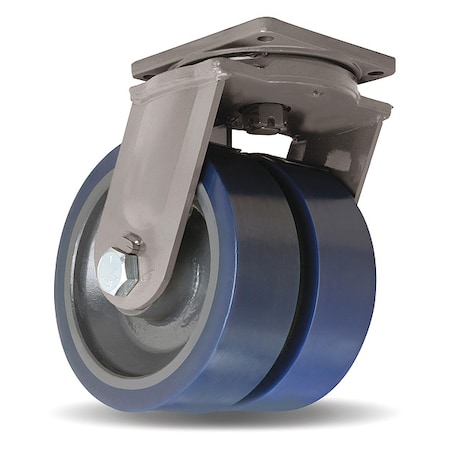

Hamilton . S-MDD-124SYT-4SL-DHCB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55HA36
UnitOfMeasureEA
Weight223
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height12
jsonUrlData924526ffbdad25e5923b
length, width18
moq, multiple, tierMinQty11
MPNS-MDD-124SYT-4SL-DHCB
perItemShipping100.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9072419
tierPrice11881.04
urlhttps://www.zoro.com/hamilton-plate-caster-12000-lb-load-rating-s-mdd-124syt-4sl-dhcb/i/G9072419/
Caster Sub-TypeSwivel
Load Rating12,000 lb
Number of Wheels2
Wheel Dia12 in
Wheel Width, Overall Wheel Width4 in
Wheel/Tread Hardness95 Shore A
Swivel Radius9 1/2 in
Swivel Bearing Seal TypeOpen
Tread ShapeStandard
With Toe Plate, Includes Thread Guards, Leveling Caster, Includes Mounting Fasteners, NSF ListedNo
Frame ConstructionForged
For Surface TypeConcrete
Frame FinishPowder Coated
Caster Frame Material, Wheel Bearing MaterialSteel
Mounting Height15 1/2 in
Wheel TypeFlat-Free
Swivel Raceway TypeRoller
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing7 in x 7 in
Swivel ConstructionKingpin
Operating Temperature Range-50 Degrees to 200 Degrees F
Load Rating Range6000 lb and Greater
StandardsICWM
Wheel Bearing TypeTapered Roller
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Wheel/Tread Hardness RatingFirm
Wheel Core MaterialForged Steel
Caster Mounting TypePlate
Core Color, Frame ColorSilver
Mounting Plate Size8 1/2 in x 8 1/2 in
Non-Marking, ESD Conductive, Includes Spanner BushingYes
For Axle Dia1 1/4 in
Wheel/Tread ColorBlue
Swivel Lock Type4-Position Swivel Lock
ItemEasy-Turn Standard Plate Caster
Swivel Lead3 1/4 in
Wheel Core TypeSolid
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Tire StyleTubeless
SeriesMaxi-Duty Dual
Mounting Plate Bolt Hole PatternD
Wheel/Tread MaterialPolyurethane
Number of Mounting Holes4
Caster Brake TypeFace Contact Brake
Mounting Bolt Dia, Mounting Plate Thickness5/8 in
TreadFlat
Brake LocationFace
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9072419111 @ $1881.04
Grainger55HA3611
