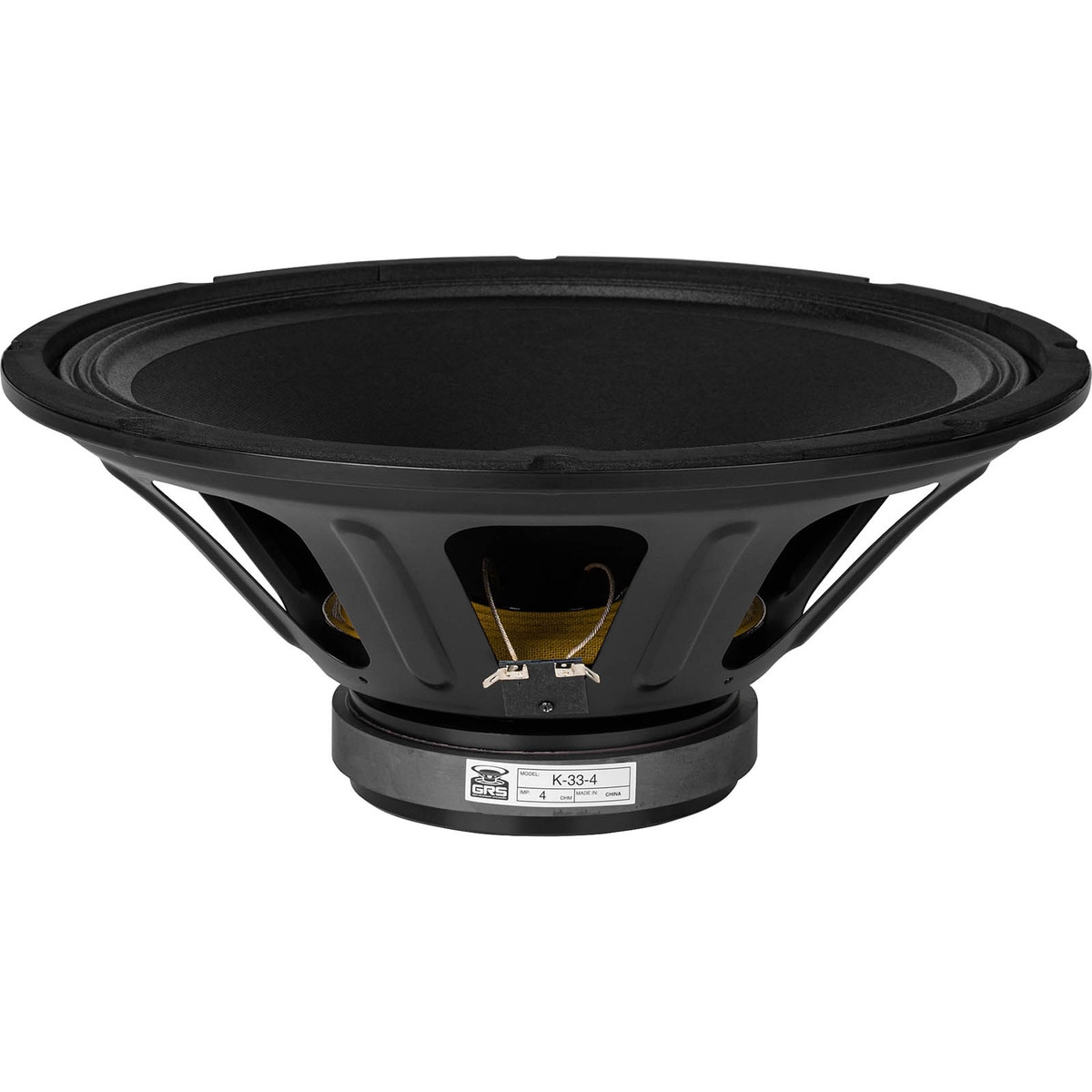

GRS K-33-4 Replacement 15" Woofer for Klipsch Klipschorn, Belle Klipsch, Cornwall, and Lascala Speakers

GRS K-33-4 Replacement 15" Woofer for Klipsch Speakers - Part Number: 292-830 by GRS.

GRS . K-33-4

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandGRS
DimensionUnitinch
Extra Product NameGRS K-33-4 Replacement 15" Woofer for Klipsch Klipschorn, Belle Klipsch, Cornwall, and Lascala Speakers
UPC848864070759
Weight13.2
WeightUnitlbs
depth, length5.82
diameter, height, width15.11
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, ModelK-33-4
qtyInStock-2
qtySourceFieldMap
SKU, Part Number292-830
snippetGRS K-33-4 Replacement 15" Woofer for Klipsch Speakers - Part Number: 292-830 by GRS.
Unit of MeasureEach
Nominal Diameter15"
Bolt Circle Diameter14.65
Power Handling (RMS)200 Watts
Power Handling (MAX)400 Watts
Impedance4?
Frequency Response33-5500Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter2"
Magnet Weight59oz.
Resonant Frequency (Fs)32.2Hz
DC Resistance (Re)3.52?
Voice Coil Inductance (Le)1.129mH
Mechanical Q (Qms)12.61
Electromagnetic Q (Qes)0.5458
Total Q (Qts)0.52
Compliance Equivalent Volume (Vas)9.68ft?
Mechanical Compliance of Suspension (Cms)0.267mm/N
BL Product (BL)10.93T?m
Diaphragm Mass Inc Airload (Mms)91.55g
Maximum Linear Excursion (Xmax)8.25mm
Surface Area of Cone (Sd)855.3cm?
Cone Material, Surround MaterialPaper
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter15.11"
Baffle Cutout Diameter13.85"
Depth5.82"
# Mounting Holes8
Sealed Volume4.875ft?
Sealed F350.2Hz
Vented Volume8ft?
Vented F333.5Hz
