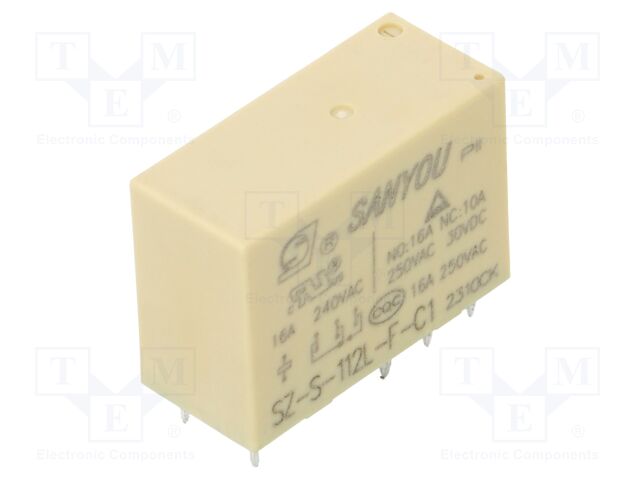

SANYOU SZ-S-112L-C1 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A; 16A
SANYOU SZ-S-112L-C1 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A; 16
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | SANYOU |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | SANYOU SZ-S-112L-C1 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A; 16A |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 4e715f5ea4fcbb6539070ba27eb06497. |
| jsonUrlData2 | 0871534beae3fc124583 |
| keywords | SANYOU, SZ-S-112L-C1 |
| MPN, SKU | SZ-S-112L-C1 |
| qtyInStock | 1000 |
| snippet | SANYOU SZ-S-112L-C1 | Relay: electromagnetic; SPDT; Ucoil: 12VDC; Icontacts max: 16A; 16 |
| tierMinQty2 | 10 |
| tierMinQty3 | 30 |
| tierMinQty4 | 100 |
| tierPrice1 | 2.25 |
| tierPrice2 | 1.99 |
| tierPrice3 | 1.79 |
| tierPrice4 | 1.35 |
| Type of relay | electromagnetic |
| Contacts configuration | SPDT |
| Rated coil voltage | 12V DC |
| Contact current max, AC contacts rating @R, DC contacts rating @R | 16A |
| Switched voltage | max. 30V DC, |
| Mounting | THT |
| Coil resistance | 270? |
| Coil voltage min | 9V DC |
| Coil voltage max | 15.6V DC |
| Body dimensions | 29.2x12.8x20.6mm |
| Coil power consumption | 540mW |
| Operating temperature | -40...85?C |
| Relay series | SZ |
| Contact resistance | 100m? |
| Switching capacity | 4709VA |
| Contact material | AgSnO |
| Max surge current | 17A |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| SZ-S-112L-C1 | 1 | 1000 | 1 | 1 @ $2.25, 10 @ $1.99, 30 @ $1.79, 100 @ $1.35 |
