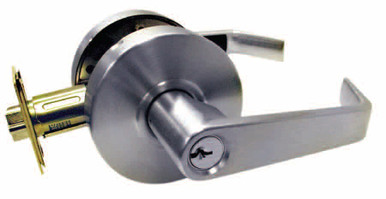

General Locks LX200 Series Rigid S Levers - LX253S - Entry - Square Corner - Brushed Chrome - KAL DOOR HARDWARE

General Lock General Locks LX200 Series Rigid S Levers - LX253S - Entry -... Dead locking latch bolt operated by knob/lever from either side except when outside knob/lever is locked by the push or turn button inside. Key outside or operating inside knob/lever releases push or turn button unlocking outside knob/ lever except when push or turn button has been rotated to keep outside knob/lever locked. Inside push or turn button must be manually operated to unlock outside knob/lever. Inside knob/lever always operates latch bolt. STANDARD FEATURES: CERTIFICATIONS: ANSI A156.2 Grade 2, UL Listed 3-hr, ADA and title 19 California Fire Marshal. MECHANISM: cold-rolled steel chassis housing reversible & non-handed lever available clutched or rigid with separate lever spring mechanism to prevent sagging and droop DOOR THICKNESS: 1-3/8 to 1-3/4 BACKSET: 2-3/4 STRIKE: 1-1/4 x 4-7/8, ANSI strike, square corner LATCH: 2-1/4 x 1-1/8, square corner face plate, 1/2 throw, UL Listed 3-hr THROUGH-BOLTS: Removeable through-bolts, (Without throughbolts, the lock is NOT Grade 2 compliant) CYLINDER: Drilled 6, pinned 6 solid brass cylinder with Schlage keyway, keyed differently, 2 cut keys SFIC CORE: Prepped for either 6-pin or 7-pin SFIC core. TRIM: 3-5/16 rose diameter for œS style lever, lever return is 3/8 from door, P and œB knob styles LX253S-626-C-234-S-F109 Keyless Access","Keyless Access > Shop Keyless > Other Door Hardware
