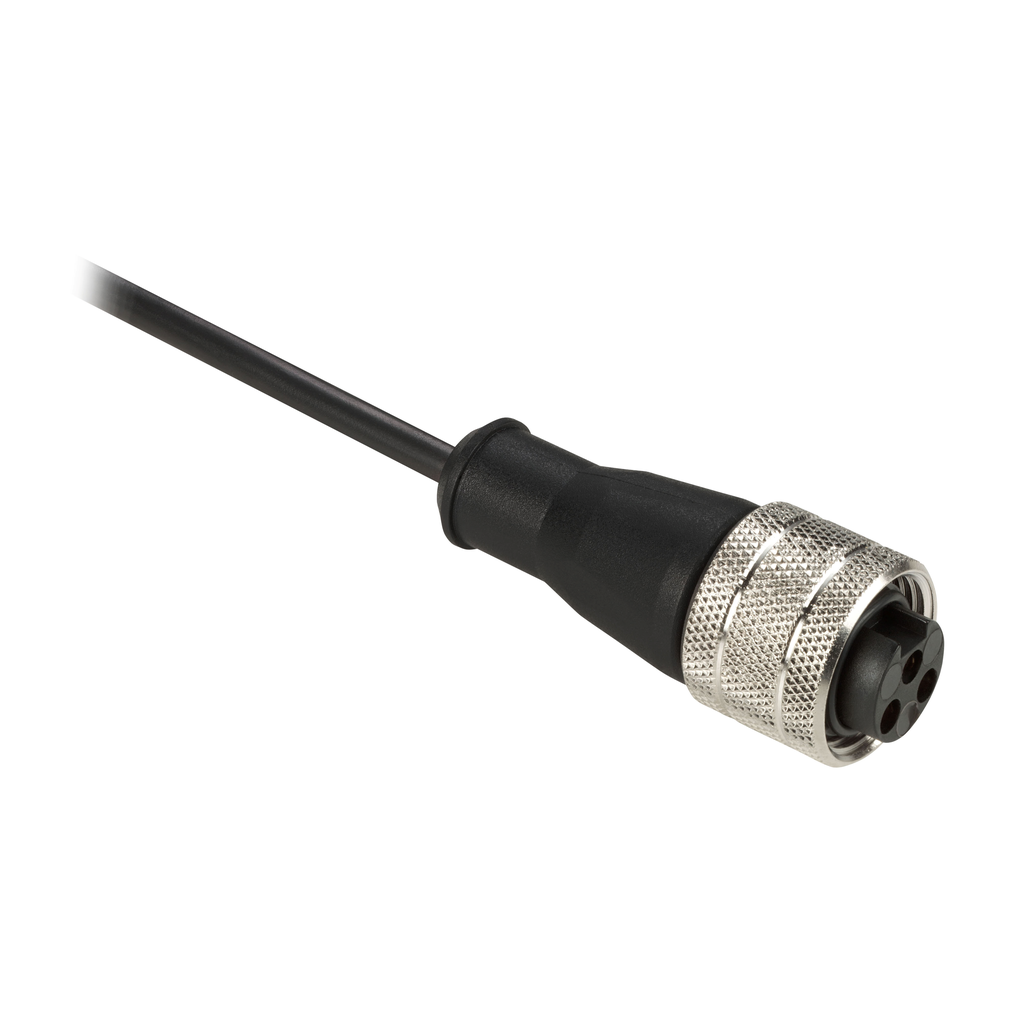

Pre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 2 m | Mayer Electric

Mayer Electric Supply . XZCP1865L2

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitm
Extra Product NamePre wired connectors XZ, straight female, 1/2"20 UNF, 3 pins, cable PUR 2 m | Mayer Electric
UPC785901771708
Weight0.08
WeightUnitkg
Weight_AttribNet Weight
diameter, height, width0.005200000000000001
height_Attrib, width_AttribCable Outer Diameter
jsonUrlData/Product/SQUARE-D-CONNECTOR-CABLE-300V-2M-STRAIGHT-3-PIN-FEMALE-785901771708
jsonUrlData21fc9675b-0ecd-4afe-81bc-abb200c9e4aa
length2.0
length_AttribCable Length
moq, multiple, tierMinQty11
MPNXZCP1865L2
qtyInStock0
SKUSQDXZCP1865L2
tierPrice124.82
Series Namegeneral purpose
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Categorycabling accessory
Accessory / Separate Part Typepre-wired connectors
Warranty18 months
Collar Materialmetal
Electrical Connectionstraight female connector 1/2"20 UNF, 3 pins
Cable Outer Diameter5.2 mm
Minimum Insulating Resistance1 G?
Wire Insulation MaterialPUR
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Connector Fixingscrew-on
Cable Length2 m
Line Rated Current4 A
Cable Composition3 x 0.34 mm?
Status Ledwithout
Net Weight0.08 kg
Contact Resistance5000 ?Ohm
Circularity ProfileENVEOLI1308015EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1308015
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationscULus
Ambient Air Temperature For Operation-35-90 ?C static || -5-90 ?C flexing
Ambient Air Temperature For Storage-35-100 ?C
Ip Degree Of ProtectionIP67
