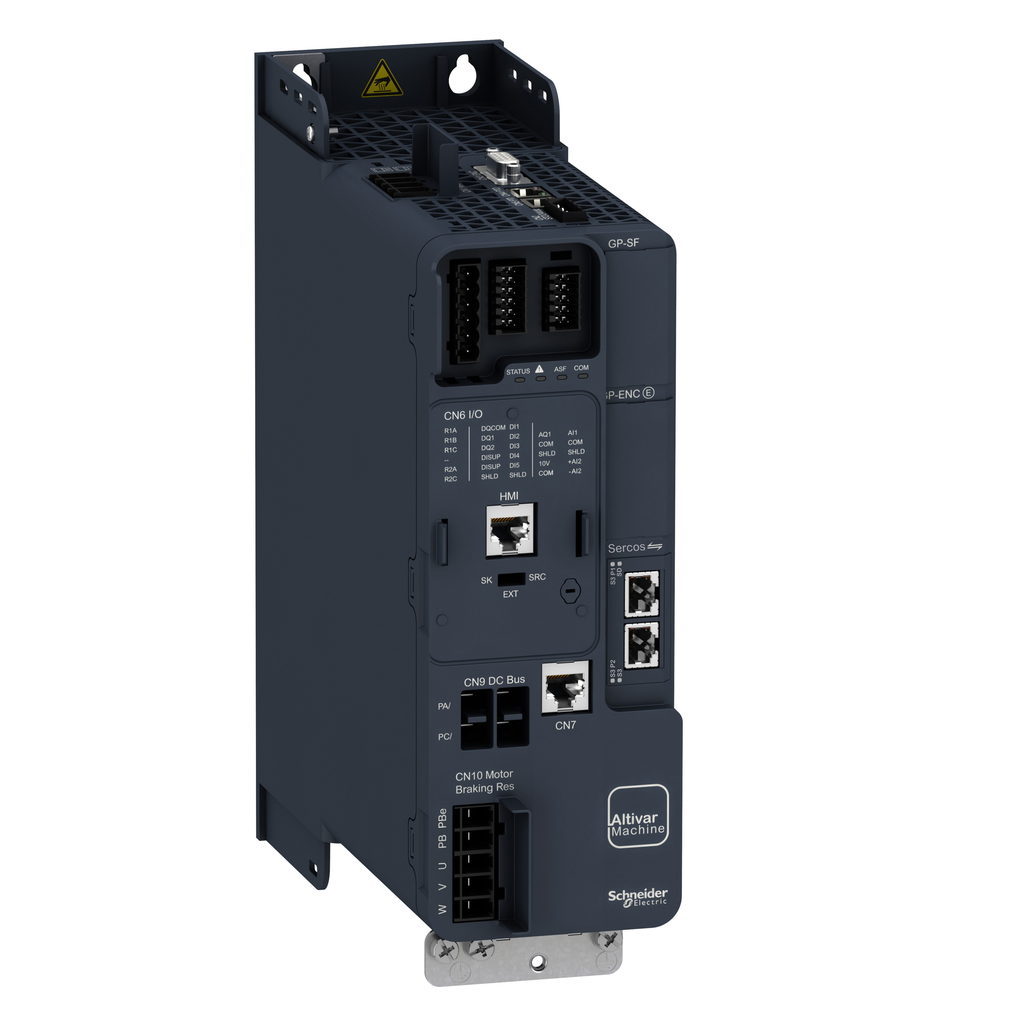

Variable speed drive, Altivar Machine ATV340, 1.5 kW Heavy Duty, 400 V, 3 phases, Sercos | Mayer Electric

SQUARE D . SQDATV340U15N4S

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameVariable speed drive, Altivar Machine ATV340, 1.5 kW Heavy Duty, 400 V, 3 phases, Sercos | Mayer Electric
UPC3606489497828
Weight1.7
WeightUnitkg
Weight_AttribNet Weight
depth, length232.5
height270.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Variable-speed-drive-Altivar-Machine-ATV340-1-5-kW-Heavy-Duty-400-V-3-phases-Sercos-3606489497828
jsonUrlData2fa420c53-6f97-4aff-b5c4-aeea0054c9a5
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDATV340U15N4S
qtyInStock0
tierPrice11236.25
width85.0
width_AttribWidth
Variantstandard version
Product Or Component Typevariable speed drive
Ip Degree Of ProtectionIP20
Phase3 phase
Communication Port ProtocolSercos || Modbus serial
Nominal Output Current, Base Load Current At High Overload4.0 A
Product Specific Applicationmachine
Maximum Horse Power Rating3 hp normal duty || 2 hp heavy duty
Supply Frequency50...60 Hz +/- 5 %
Option Cardcommunication module, Profibus DP V1 || communication module, PROFINET || communication module, DeviceNet || communication module, CANopen || communication module, EtherCAT
Range Of ProductAltivar Machine ATV340
Motor Power Kw2.2 kW normal duty || 1.5 kW heavy duty
[Us] Rated Supply Voltage380...480 V - 15...10 %
Mounting Modecabinet mount
Emc Filterclass C3 EMC filter integrated
Prospective Line Isc5 kA
Power Dissipation In Wnatural convection 46 W 380 V 4 kHz heavy duty) || forced convection 46 W 380 V 4 kHz heavy duty) || natural convection 59 W 380 V 4 kHz normal duty) || forced convection 59 W 380 V 4 kHz normal duty)
Line Current5.1 A 380 V normal duty) || 4.1 A 480 V normal duty) || 6.0 A 380 V heavy duty) || 4.9 A 480 V heavy duty)
Analogue Output Typesoftware-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Discrete Output Typeprogrammable output DQ1, DQ2 30 V DC 100 mA
Electrical Connectionscrew terminal 1.5...4 mm? line side || screw terminal 4...6 mm? DC bus || screw terminal 1.5...4 mm? motor || screw terminal 0.2...2.5 mm? control
Asynchronous Motor Control Profileoptimized torque mode || constant torque standard || variable torque standard
4 Quadrant Operation Possible, With Safety Function Safe Stop 1 (Ss1), With Safety Function Safe Brake Management (Sbc/Sbt), With Safety Function Safe Torque Off (Sto), Brake Chopper Integrated, With Safety Function Safely Limited Speed (Sls)true
Apparent Power3.8 kVA 480 V normal duty) || 4.1 kVA 480 V heavy duty)
Net Weight1.7 kg
With Safety Function Safe Direction (Sdi), With Safety Function Safe Position (Sp), With Safety Function Safely Limited Position (Slp), With Safety Function Safe Operating Stop (Sos), With Sft Fct Safe Stop 2 (Ss2), With Safety Function Safe Speed Monitor (Ssm), With Safety Function Safe Programmable Logicfalse
Type Of Polarizationno impedance
Relay Output Typerelay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
Switching Frequency2...16 kHz adjustable || 8...16 kHz with derating factor
Maximum Transient Current6.2 A 60 s normal duty) || 6 A 60 s heavy duty) || 7.6 A 2 s normal duty) || 7.2 A 2 s heavy duty)
Analogue Input Number, Relay Output Number, Analogue Output Number2
Motor Slip Compensationcan be suppressed || adjustable || not available in permanent magnet motor law || automatic whatever the load
Discrete Output Number2.0
Method Of Accessslave Modbus RTU
Number Of Addresses1-247
Discrete Input Number5
Width85.0 mm
Transmission Rate4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Depth232.5 mm
Maximum Output Frequency0.599 kHz
Height270.0 mm
Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s || S, U or customized
Maximum Output Voltage480 V
Transmission FrameRTU
Data Format8 bits, configurable odd, even or no parity
Base Load Current At Low Overload5.6 A
Connector Type3 RJ45
Pollution Degree2 EN/IEC 61800-5-1
Physical Interface2-wire RS 485
Minimum Switching Currentrelay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Discrete Input Logic16 preset speeds
Continuous Output Current5.6 A 4 kHz normal duty || 4 A 4 kHz heavy duty
Nominal Switching Frequency4 kHz
Braking To Standstillby DC injection
Discrete Input TypePTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
Synchronous Motor Control Profilereluctance motor || permanent magnet motor
Mercury Free, Rohs Exemption Information, Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Environmental DisclosureENVPEP1609005EN
Sustainable Offer StatusGreen Premium product
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity ProfileENVEOLI1609005EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL || CSA || T?V || EAC || CTick
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...9 Hz
StandardsEN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Regulation Loopadjustable PID regulator
Permitted Relative Humidity (During Operation)class 3K5 according to EN 60721-3
Overvoltage Categoryclass III
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Maximum Acceleration Under Shock Impact (During Operation)70 m/s? at 22 ms
Ambient Air Temperature For Operation-15-50 ?C without derating vertical position) || 50-60 ?C with derating factor vertical position)
Volume Of Cooling Air18.0 m3/h
MarkingCE
