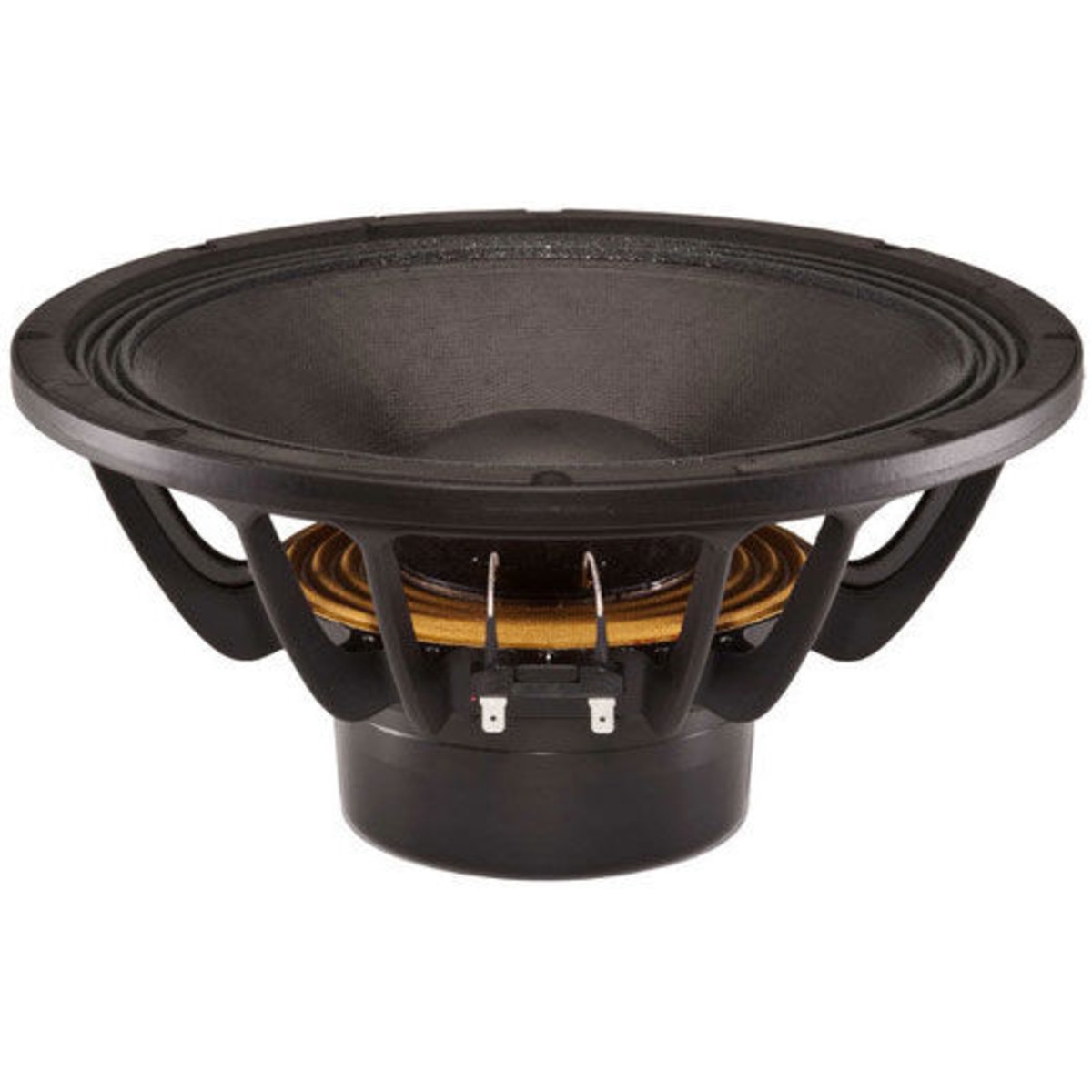

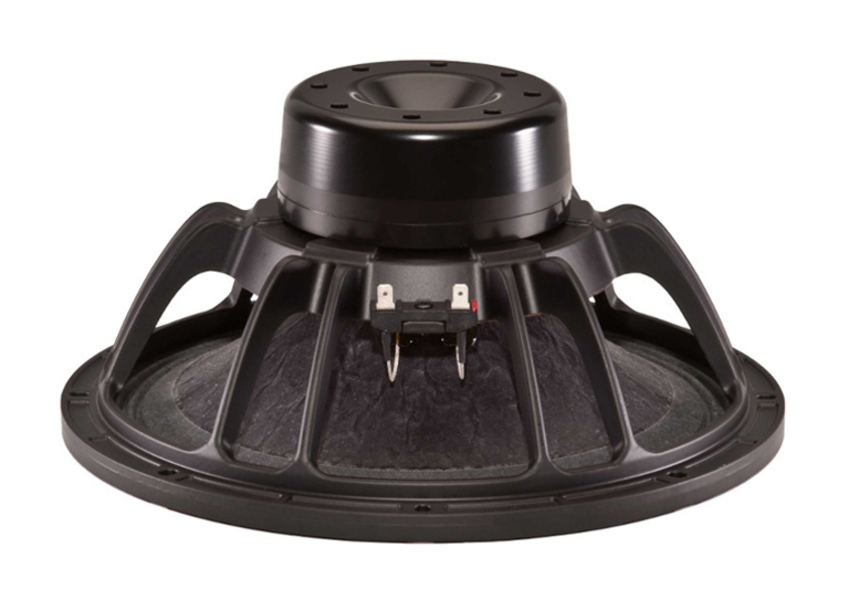

B&C 12NDL88 12" Neodymium Woofer

B&C 12NDL88 12" Neodymium Woofer. Part Number: 294-5994 by B&C Speakers.

B&C Speakers . 12NDL88

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandB&C Speakers
DimensionUnitinch
Extra Product NameB&C 12NDL88 12" Neodymium Woofer
UPC848864021188
Weight12.9
WeightUnitlbs
depth, length5.51
diameter, height, width12.4
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple1
MPN, Model12NDL88
qtyInStock-2
qtySourceFieldMap
SKU, Part Number294-5994
snippetB&C 12NDL88 12" Neodymium Woofer. Part Number: 294-5994 by B&C Speakers.
Unit of MeasureEach
Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8?
Frequency Response50 to 3,000Hz
Sensitivity98dB 2.83V/1m
Voice Coil Diameter3.5"
Resonant Frequency (Fs)51Hz
DC Resistance (Re)6?
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)5
Electromagnetic Q (Qes)0.29
Total Q (Qts)0.27
Compliance Equivalent Volume (Vas)1.84ft?
BL Product (BL)19.9T?m
Diaphragm Mass Inc Airload (Mms)71g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)522cm?
Cone MaterialCoated Paper
Surround MaterialCloth
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium
Overall Outside Diameter12.4"
Baffle Cutout Diameter11.1"
Depth5.51"
# Mounting Holes8
Sealed Volume0.63ft?
Sealed F3159.8Hz
Vented Volume1.75ft?
Vented F355.8Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com294-59941-21
unbeatablesale.comTNSR16791-211 @ $299.00
