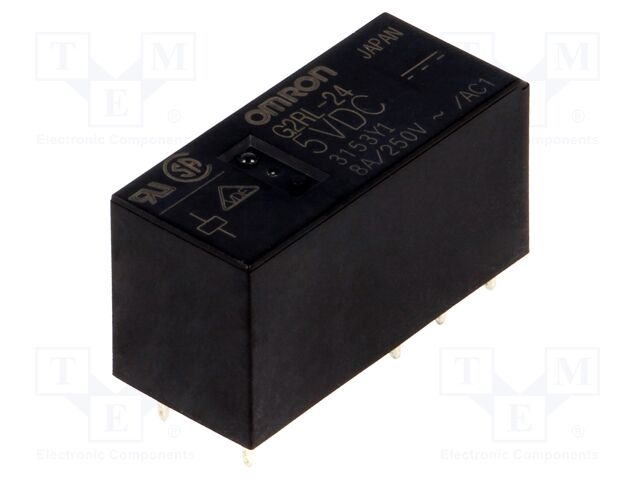

OMRON OCB G2RL-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PCB
OMRON OCB G2RL-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PC
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | OMRON OCB |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | OMRON OCB G2RL-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PCB |
| atoms, moq, multiple, tierMinQty1 | 1 |
| jsonUrlData | 9a9570015a68481af58166d4dc49c88f. |
| jsonUrlData2 | 276f7bc1ff8ba075b2e9 |
| keywords | OMRON OCB, G2RL-24 5VDC, G2RL-24-5DC |
| MPN | G2RL-24 5VDC |
| qtyInStock | 783 |
| SKU | G2RL-24-5DC |
| snippet | OMRON OCB G2RL-24 5VDC | Relay: electromagnetic; DPDT; Ucoil: 5VDC; Icontacts max: 8A; PC |
| tierMinQty2 | 5 |
| tierMinQty3 | 25 |
| tierMinQty4 | 100 |
| tierMinQty5 | 500 |
| tierPrice1 | 3.79 |
| tierPrice2 | 3.45 |
| tierPrice3 | 2.67 |
| tierPrice4 | 2.5 |
| tierPrice5 | 2.33 |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 5V DC |
| Contact current max | 8A |
| AC contacts rating @R | 8A / 250V AC |
| DC contacts rating @R | 8A / 24V DC |
| Switched voltage | max. 300V DC, |
| Relay variant | miniature |
| Mounting | PCB |
| Coil resistance | 62.5? |
| Operate time | 15ms |
| Body dimensions | 29x12.7x15.7mm |
| Release time | 5ms |
| Operating temperature | -40...85?C |
| Relay series | G2RL |
| Contact resistance | 100m? |
| Terminal pitch | 5mm |
| Coil current | 80mA |
| Enclosure description | hermetic seal |
| Leads | for PCB |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| G2RL-24-5DC | 1 | 783 | 1 | 1 @ $3.79, 5 @ $3.45, 25 @ $2.67, 100 @ $2.50, 500 @ $2.33 |
