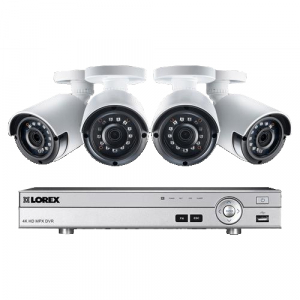

Lorex . LX1080-44BW

Lorex . LX1080-44BW

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerLorex
moq, multiple1
MPN, SKULX1080-44BW
qtyInStockContact Us
Operating SystemLinux (embedded)
PentaplexSimultaneous View, Record, Playback, Backup & Remote Monitoring
Number of Channels8 Channels
Video IN8 x 1Vp-p, CVBS, 75ohms, BNC
Video OUTNo
VGA OUT, HDMI, Covert Video, Audio PlayYes
Audio IN1 lines IN (RCA)
Audio OUT1 line OUT (RCA)
USB Port1 at the back, 1 at the front
Alarm IN, Alarm OUT, DDNSNone
Video Output ResolutionHDMI: 3840x2160; 2560x1440; 1920x1200; 1600x1200; 1680x1050; 1920x1080; 1440x900; 1280x1024; 1280x720; 1024x768
PTZ ControlRS-485 Pelco D & P Protocol
Display Split1, 4, 8
Live Display Speed240 NTSC, 200 PA
OSDON/OFF
System NavigationUSB Mouse, IR Remote Controller, Front Panel
Motion Area SettingFixed Grid 396 pixels (22x18) NTSC/PAL
Sensitivity100
Firmware UpgradeAutomatic over the Internet & via USB device and Network
User AuthorityBy user group
Time SynchronizationAuto time sync by NTP server
Video CompressionH.264+
Audio CompressionG.711
Recording Resolution4K/8MP (3840x2160), 2K/4MP (2688x1520), 3MP (2304x1296), 1080p (1920x1080), 720p (1280x720), 960x480, 704x480, 352x480, 704x240, 352x240, 176x120
Recording Frame Rate4K at 7fps (per ch), 4MP at 15fps (per ch), 3MP/1080p/720p/960H: 30fps (NTSC)
Recording Resolution SettingPer camera for different resolutions
Recording Quality Control6 Levels
Recording ScheduleBy hour, by day, by recording mode, by motion, by channel
Pre RecordingMax. 30 seconds
Post RecordingMax. 5 minutes
ReliabilityWatch-Dog, Auto-recovery after power failure
Playback Channel1 / 4 / 8
Playback SpeedVariable Max 4x
Playback PlayersBackup Player
SearchBy Time/Date & Motion Event
Log SearchUp to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage
StorageUp to 1 HDD (SATA)
Maximum CapacityUp to 1 x 8TB
Backup MediaUSB Flash Drive & HDD
Backup File FormatDAV/ASF file
Cloud ConnectionLorex Cloud Connectivity
Supported Operating SystemsWindows, Mac OSX
Remote SoftwareClient Software (PC) & Safari (Mac)
Email NotificationText with snapshot
Instant SmartphoneiPad, iPhone, Android apps
System ConfigurationFull setup configuration over network
PortsProgrammable by user
Network ProtocolHTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface10/100-Base-TX, RJ-45
Network Bit RateMax 64Mbps
Power ConsumptionApprox. 10 watts (no HDD included)
Supply Voltage100VAC-240VAC, 12VDC, 2A, 50/60Hz
Unit Dimensions (W x D x H)12.8 x 10.0 x 2.2" / 325 x 255 x 55mm
Unit Weight (lb / kg)3.3lb / 1.5 kg (without Hard Drive)
Operating Temperature (°F / °C)14°F - 130°F / -10°C - 55°C
Humidity10 - 90% RH
Image Sensor1/2.7" 1080p, 2.1 Megapixel CMOS
Video FormatNTSC / PAL
Effective PixelsH: 1920 x V: 1080
Resolution1080p
Scan SystemProgressive
Sync SystemInternal
IrisAES
AES Shutter Speed1/60 (1/50) ~ 1/100,000s
Min Illumination0.2 lux without IR LED / 0 lux with IR LED
Video OutputMPX
Lens / Lens Type3.6mm F1.6 / Fixed
Field of View (Horizontal)90°
TerminationBNC Type
IR LED Type850nm
Night Vision Range130ft (40m) / 90ft (28m)
Power Requirement12V DC ±10%
Operating Temp Range-22° ~ 140°F / -30° ~ 60°C
Operating Humidity Range< 90% RH
Environmental RatingIP66
Dimensions (W x D x H)2.7" x 6.2" x 2.7" / 50 x 158 x 50mm
Weight0.4lbs / 0.18kg
