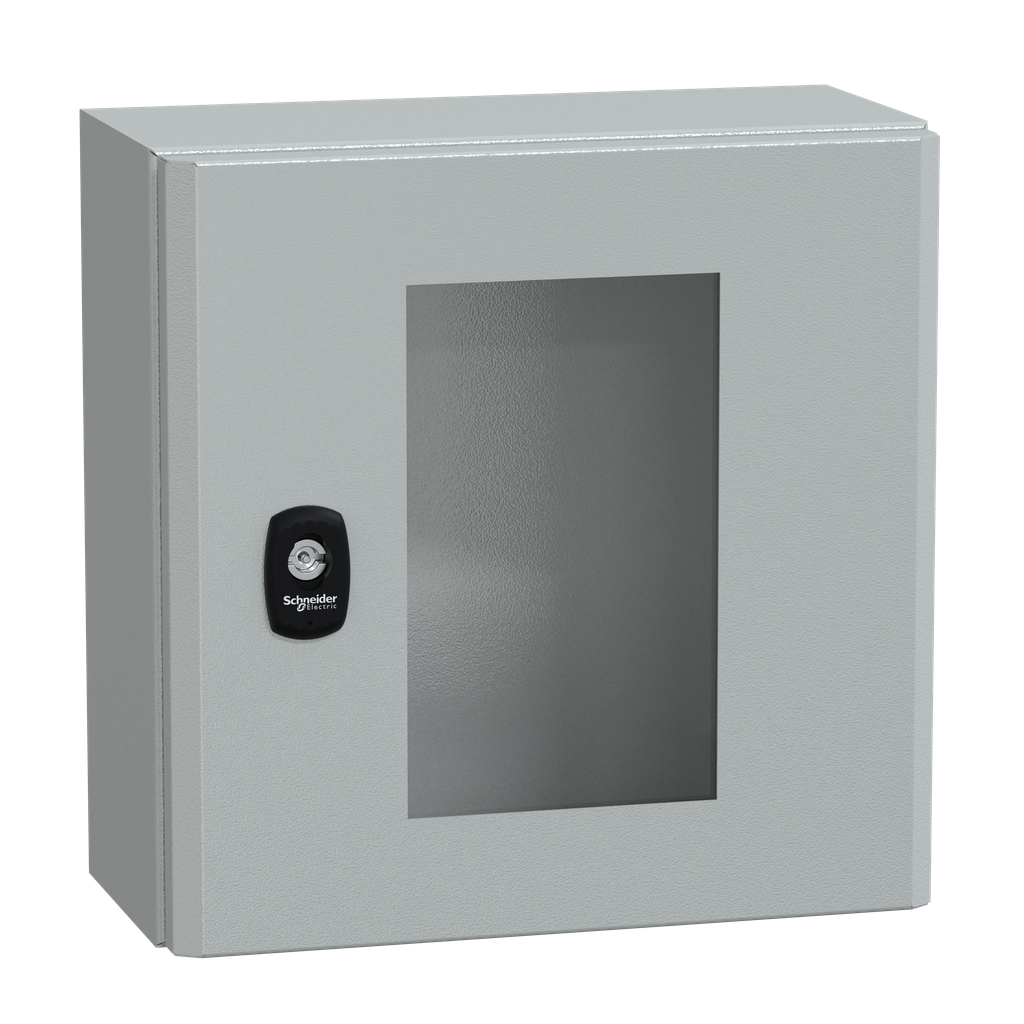

Wall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 300x300x150mm, IP66, IK08 | Mayer Electric

SQUARE D . SQDNSYS3D3315T

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameWall mounted steel enclosure, Spacial S3D, transparent door, without mounting plate, 300x300x150mm, IP66, IK08 | Mayer Electric
UPC3606480159732
Weight4.04
WeightUnitkg
Weight_AttribNet Weight
color, ColorGray RAL 7035)
height, width300.0
height_AttribEnclosure Nominal Height
jsonUrlData/Product/SQUARE-D-Spacial-S3D-tspt-door-w-o-mount-plate-H300xW300xD150-IP66-IK08-RAL7035-3606480159732
jsonUrlData2a6f43b03-4f76-4375-a549-aeea0056d5fb
length150.0
length_AttribEnclosure Nominal Depth
moq, multiple, tierMinQty11
MPN, SKUSQDNSYS3D3315T
qtyInStock0
tierPrice189.01
width_AttribEnclosure Nominal Width
Type Of Gland Platestandard
Installation Accessory Typewall-mounting
Product Or Component Typecompact enclosure
Product NameSpacial S3D
Device Composition1 body || 1 door || 1 lock || 1 cable gland plate
Enclosure Nominal Height, Enclosure Nominal Width300 mm
RangeSpacial
Door TypeGlass
Enclosure Nominal Depth150 mm
Device Applicationmulti-purpose
Mounting Plate Descriptionwithout mounting plate
Warranty18 months
Product CertificationsDNV || UL || BV || cUL || LR || GL
Accessibility For Operationfront
Removable Partsdoor by hinges || cable gland plate by screws
StandardsIEC 62208
Variant Particularitygutter-shaped front rail double sheet thickness || single piece body
Lock Type3 mm double-bar lock
Net Weight4.04 kg
Door Opening Sidereversible 120 ?)
Number Of Doorsfront face 1
Materialbody steel || door steel and security glass
Surface Finishepoxy-polyester powder
Rohs Exemption Information, Mercury Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP100104EN
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Ik Degree Of ProtectionIK08 IEC 62262
Electromagnetic Compatibilityelectromagnetic field immunity test
Nema Degree Of ProtectionNEMA 4X/13
Ip Degree Of ProtectionIP66 IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDNSYS3D3315T111 @ $89.01
