Albion

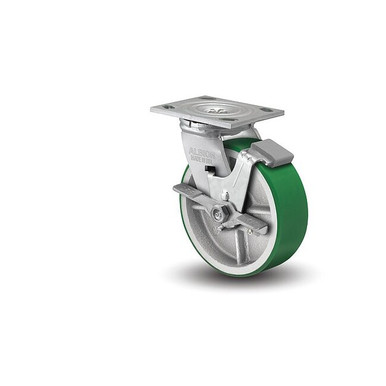

Swivel, Caster, Load Rating 1000 lb, Swivel Lock Type No Lock Included, Wheel Dia.

Albion . 16PI05201SFBA

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameAlbion
DimensionUnitinch
GraingerSku60RN28
UPCNone
UnitOfMeasureEA
Weight7.74
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
height6.3
jsonUrlData924526ffbdad25e5923b
length6.5
moq, multiple, tierMinQty1, Number of Wheels1
MPN16PI05201SFBA
qtyInStock50
qtyInStockOverride-2
SKUG900712925
tierPrice173.66
urlhttps://www.zoro.com/albion-5-x-2-non-marking-polyurethane-swivel-caster-face-brake-loads-up-to-1000-lb-16pi05201sfba/i/G900712925/
width5
Caster Sub-TypeSwivel
Load Rating1000 lb
Wheel Dia5 in
Wheel Width, Overall Wheel Width2 in
Caster Stem TypeTop Plate
ItemMedium Duty Industrial Plate Caster W/ Brake
Mounting Plate Size4 in X 4-1/2 in
FeaturesEconomical Wheel, Kingpin, Medium Heavy Duty Caster
Frame ConstructionCold Formed
For Axle Dia1/2 in
Number of Mounting Holes4
Operating Temperature Range-40?F to 180?F
Caster Mounting TypePlate
Wheel/Tread Hardness RatingHard
Mounting Plate Bolt Hole PatternB
Mounting Plate Thickness1/4 in
Non-Marking, NSF Listed, Includes Spanner BushingYes
Caster Brake TypeFace Brake
Mounting Height6-1/2 in
Wheel Core MaterialCast Iron
Wheel Bearing TypeRoller
Wheel TypePolyurethane (Cast Iron Core)
Swivel ConstructionKingpin
Includes Thread Guards, With Toe PlateNo
Wheel/Tread MaterialPolyurethane
Caster Frame MaterialSteel
Swivel Raceway TypeDouble Ball
ApplicationShop/Distribution Carts, Dollies, Waste Disposal Trucks, Warehouse Trucks, Floor Trucks
StandardsNSF Listed, RoHS Compliant
Wheel/Tread ColorGreen
Inside Bolt Hole Spacing2-5/8 in X 3 in
Tread ShapeStandard
Core ColorGrey
Swivel Lead1 5/8 in
Wheel/Tread Hardness95A
Frame FinishZinc
Swivel Radius4 1/8 in
Mounting Bolt Dia3/8 in
Outside Bolt Hole Spacing3 in X 3-5/8 in
Swivel Lock TypeNo Lock Included
Load Rating Range1000 to 2999 lb
Hub Length2 3/16 in
Country of Origin (subject to change)United States
