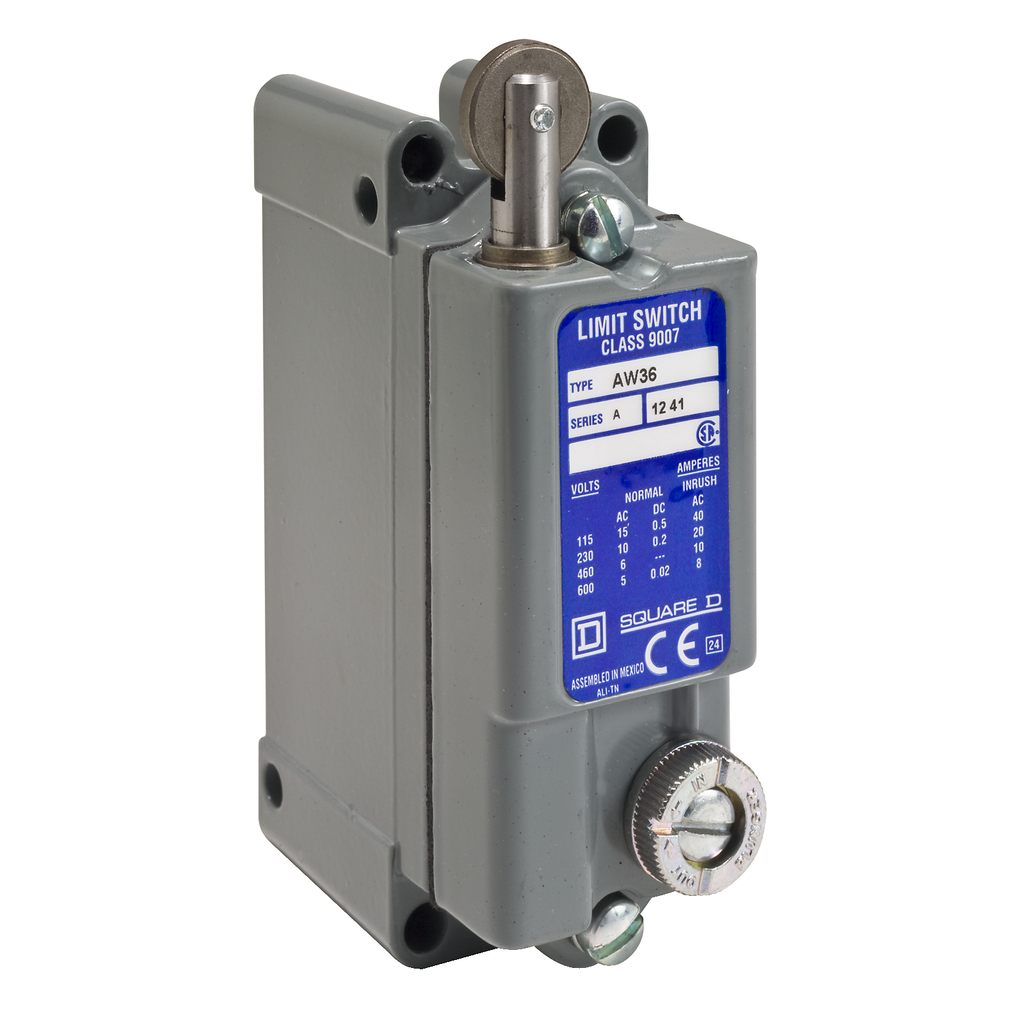

Limit switch, 9007, 600 VAC 15amp aw +options | Mayer Electric

Mayer Electric Supply . 9007AW36

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameLimit switch, 9007, 600 VAC 15amp aw +options | Mayer Electric
UPC785901804437
Weight1.25
WeightUnitlbs
Weight_AttribNet Weight
depth, length1.44
height7.36
height_AttribHeight
jsonUrlData/Product/SQUARE-D-LIMIT-SWITCH-600VAC-15AMP-AW-OPTIONS-785901804437
jsonUrlData28979b1e0-b1c8-40d4-830e-abd200617c0f
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Steps, Number Of Poles1
MPN9007AW36
qtyInStock0
SKUSQD9007AW36
tierPrice1329.58
width2.53
width_AttribWidth
Series Nameheavy duty
Body Typeplug-in
Range Of Product9007
Product Specific Applicationprecision
Product Or Component Typelimit switch
Device Short Name9007AW
Warranty18 months
Switch Actuationby 30? cam
Type Of Approachtraverse approach, 2 directions
Height3.68-3.68 in
Movement Of Operating Headlinear
Mounting Modesurface mounting
Terminals Description Iso N?1(3-4)NO || (1-2)NC
[Ui] Rated Insulation Voltage600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block
Positive Openingwithout
Electrical Connection1-2 screw-clamp terminals AWG 22...AWG 12)
Contact Operationsnap action
Operator Material, Body Materialcast zinc
Fixing Modeby the body
Contacts Materialsilver contacts
Operator Profileplunger head
[Ithe] Conventional Enclosed Thermal Current15 A
Cable Entry1 entry for 1/2" - 14 NPT ANSI B1.20.1
Contact FormForm Z
Contacts Type And CompositionNC-NO SPDT-DB
Minimum Force For Tripping3 lbf
Width2.53 in
Depth1.44 in
Materialmetal
Net Weight1.25 lb(US)
Type Of Operatorspring return roller plunger steel with micrometer adjustment
Repeat Accuracy+/- 0.001 in
Environmental DisclosureENVPEP111160EN
Eu Rohs DirectiveNot applicable, out of EU RoHS legal scope
Reach RegulationReference contains Substances of Very High Concern above the threshold
Ambient Air Temperature For Operation, Ambient Air Temperature For Storage0-185 ?F
Nema Degree Of ProtectionNEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 12 Nema type 250 || NEMA 13 Nema type 250
Protective Treatmentepoxy powder coat
Ip Degree Of ProtectionIP65 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD9007AW36111 @ $329.58
