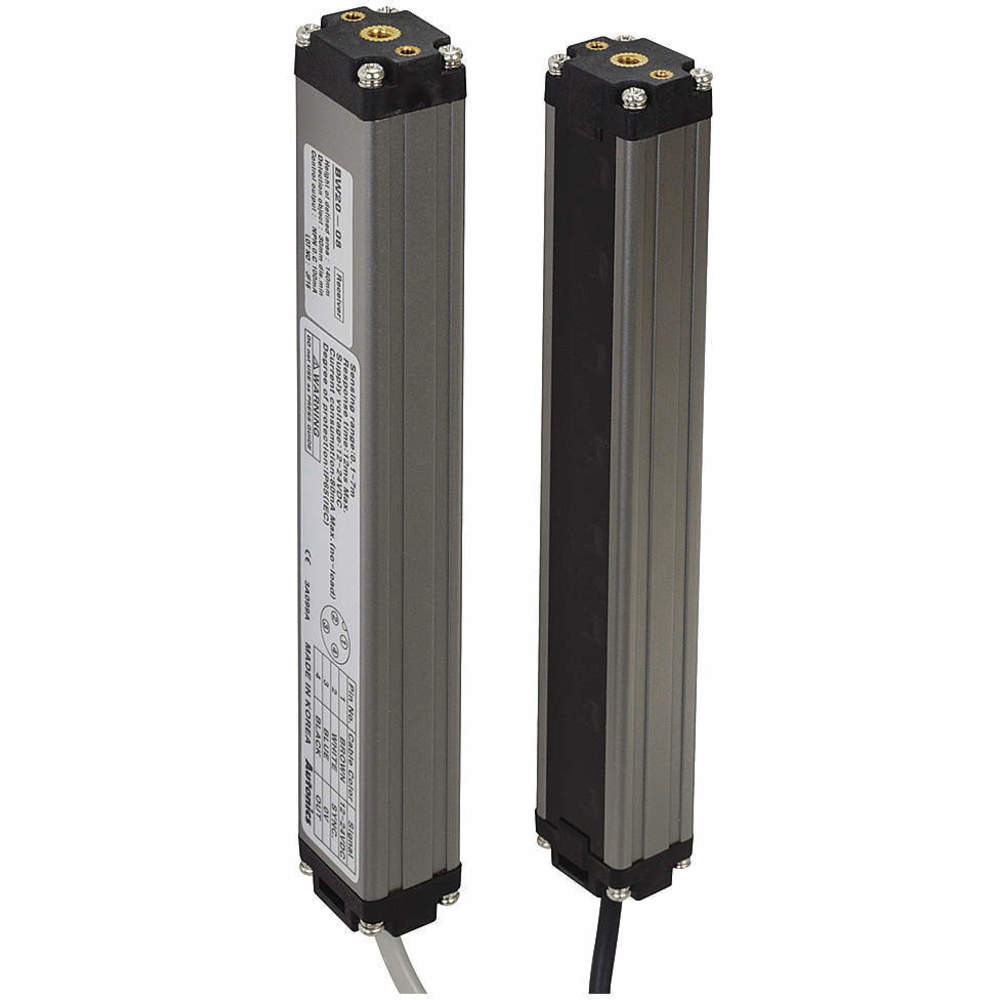

Photoelectric Area Sensor, Housing Material Aluminum, IP Rating 65, Beam Spacing 40 mm, Sensing Range 0.10 to 7.00m, Number of Beams 14, Sensing Height 560 mm, Circuit Type NPN Open Collector, Power Source 12 to 24V DC, Cable Connection 4 Pin M12, Cable Length 300 mm, Light Source Infrared LED, Response Time 12 msec, Current Consumption 80 mA, Max. Load Voltage 30V DC, Max. Load Current 100 mA, Output Mode Light-On, Overall Height 580 mm, Width 28.6 mm, Depth 22.6 mm
Photoelectric Area Sensor, Housing Material Aluminum, IP Rating 65, Beam Spacing 40 mm, Sensing Range 0.10 to 7.00m, Number of Beams 14, Sensing Height 560 mm, Circuit Type NPN Open Collector, Power Source 12 to 24V DC, Cable Connection 4 Pin M12, Cable Length 300 mm, Light Source Infrared LED, Response Time 12 msec, Current Consumption 80 mA, Max. Load Voltage 30V DC, Max. Load Current 100 mA, Output Mode Light-On, Overall Height 580 mm, Width 28.6 mm, Depth 22.6 mm
Gallery
Attributes
| Brand name, Manufacturer name, Man | Autonics |
|---|---|
| Manufacturer | Autonics AUTONICS |
| CategoryId, CategoryIdL4 | 6609 |
| CategoryIdL1 | 23 |
| CategoryIdL2 | 17009 |
| CategoryIdL3 | 17027 |
| CategoryL1 | Electrical Supplies |
| CategoryL2 | Industrial Control & Automation |
| CategoryL3 | Sensors |
| CategoryL4, DisplayName | Photoelectric Sensors |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 32W329 |
| UnitOfMeasure | EA |
| Weight | 3.09 0.19 |
| WeightUnit | lbs |
| cali_prop65_message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| cali_prop65_orglabel, cali_prop65_whtlabel, IsDeadAsin | True |
| cali_prop65_warnmsgscenario | 7 |
| countryOfOrigin | KR |
| height | 4.72 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 31.5 |
| moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Part Number, CatalogNumberList, Model, ModelNumber, Model_number, Part_number | BW40-14 |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G5701403 |
| tierPrice1 | 971.99 |
| url | https://www.zoro.com/autonics-area-sensor-npn-metal-40mm-14-beam-bw40-14/i/G5701403/ |
| width | 2.76 |
| Product Group | BISS |
| Width | 28.6 mm 255 38 |
| Depth | 22.6 mm |
| Sensing Height | 560 mm |
| Min Target Size | Opaque Material 50mm |
| Cable Length | 300 mm |
| Overall Height | 580 mm |
| Item | Photoelectric Area Sensor |
| Housing Material | ALuminum |
| IP Rating | 65 |
| Circuit Type | NPN Open Collector |
| Beam Spacing | 40 mm |
| Sensing Range | 0.10 to 7.00m |
| Number of Beams, Case | 14 |
| Max Load Current | 100 mA |
| Power Source | 12 to 24V DC |
| Light Source | Infrared LED |
| Includes | Emitter, Receiver and Instructions |
| Max Load Voltage | 30V DC |
| Operating Temp Range | -20 to 60 Degrees C |
| Cable Connection | 4 Pin M12 |
| Current Consumption | 80 mA |
| Output Mode | Light-On |
| Response Time | 12 msec |
| ASIN, Asin | B00TXSD3VI |
| AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| Brand | AUTONICS Autonics USA, Inc |
| Bullet_point | Cannot be shipped to California Category: Electrical -- Switches |
| Cat | Industrial & Scientific |
| CatId | 16310091 |
| CatTree | 16310091 16310161 306506011 306923011 |
| ClassificationId | 306933011 |
| Feature | Long sensing distance up to 7m |
| Height | 500 75 |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Area Sensor,NPN,Metal,40mm,14 Beam |
| Item_type_keyword | electronic-component-photoelectric-sensors |
| Item_weight | 0.19 |
| Label, Publisher, Studio | AUTONICS Autonics |
| Link | https://m.media-amazon.com/images/I/41m7WtRSAvL._SL75_.jpg https://m.media-amazon.com/images/I/41m7WtRSAvL.jpg |
| PartNumber | BW40-14 BW4014 |
| ProductGroup | BISS BISS Basic |
| ProductType, ProductTypeName | ELECTRONIC_COMPONENT |
| Product_description | Photoelectric Area Sensor, Housing Material Aluminum, IP Rating 65, Beam Spacing 40 mm, Sensing Range 0.10 to 7.00m, Number of Beams 14, Sensing Height 560 mm, Circuit Type NPN Open Collector, Power Source 12 to 24V DC, Cable Connection 4 Pin M12, Cable Length 300 mm, Light Source Infrared LED, Response Time 12 msec, Current Consumption 80 mA, Max. Load Voltage 30V DC, Max. Load Current 100 mA, Output Mode Light-On, Overall Height 580 mm, Width 28.6 mm, Depth 22.6 mm |
| Product_site_launch_date | 2015-02-23T20:54:36.659Z |
| Title | AUTONICS BW40-14 Sensor, Area, NPN open collector output. 14pcs & 40mm pitch optical axis , 520mm length, 12-24VDC Area Sensor,NPN,Metal,40mm,14 Beam BW40-14, Sensor, Area, NPN Open Collector Output. 14pcs & 40mm Pitch Optical axis, 520mm Length, 12-24VDC |
| URL | https://m.media-amazon.com/images/I/41m7WtRSAvL._SL75_.jpg |
| Unit | pounds |
| Units | pixels pounds |
| Variant | MAIN |
| WebsiteDisplayGroup | biss_basic_display_on_website |
| WebsiteDisplayGroupName | BISS Basic |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G5701403 | 1 | 1 | 1 @ $971.99 | |
 Radwell | BW40-14 | 1 | 1 | ||
| Newark | 47AC3879 | 1 | 1 | 1 @ $972.00 | |
| AC6DBV | 1 | 1 | 1 @ $3073.58 | ||
| sustainablesupply.com | C1189774 | 1 | -2 | 1 | 1 @ $2201.91 |
| BW40-14 | 1 | Estimated Lead Time : Usually ships in 1-10 working days. | 1 | 1 @ $847.00 | |
| autonicsonline.com | BW40-14 | 1 | 1 | 1 @ $972.00 | |
| Digi-Key | 15284723 | 1 | 1 | 1 @ $971.95 | |
| GGE32W329 | 1 | 1 | 1 @ $1145.22 | ||
 Galco | BW40-14-ATNC | 1 | 1 | 1 @ $972.00 |
