Plate Caster with Pneumatic Wheels, Load Rating Range 300 to 999 lb, Load Rating 480 lb, Tread Sawtooth, Wheel Dia. 10 in, Wheel Width 3 1/2 in, Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in, Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in, Caster Brake Type No Brake Included, Caster Product Group Swivel Caster, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 5 in, Frame Finish Enamel, Tread Color Black

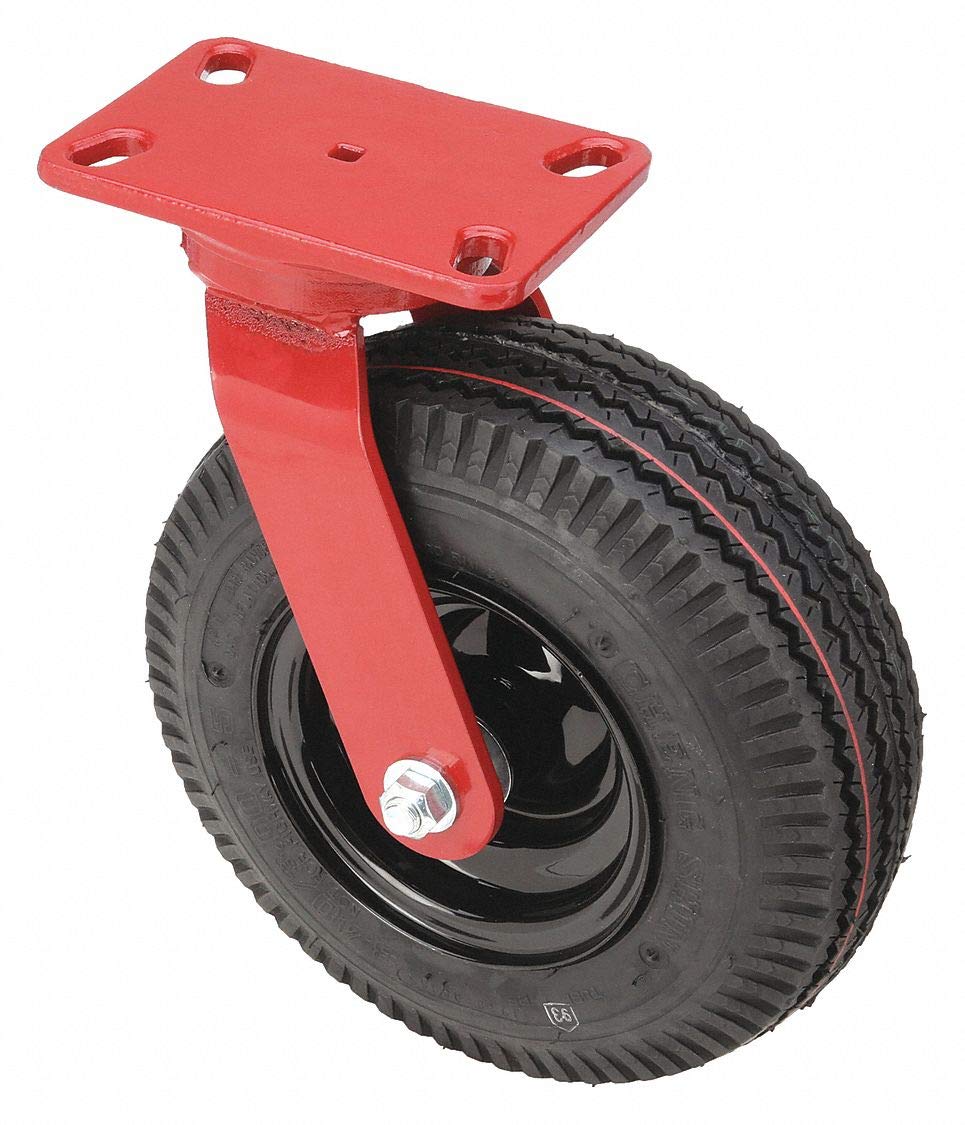

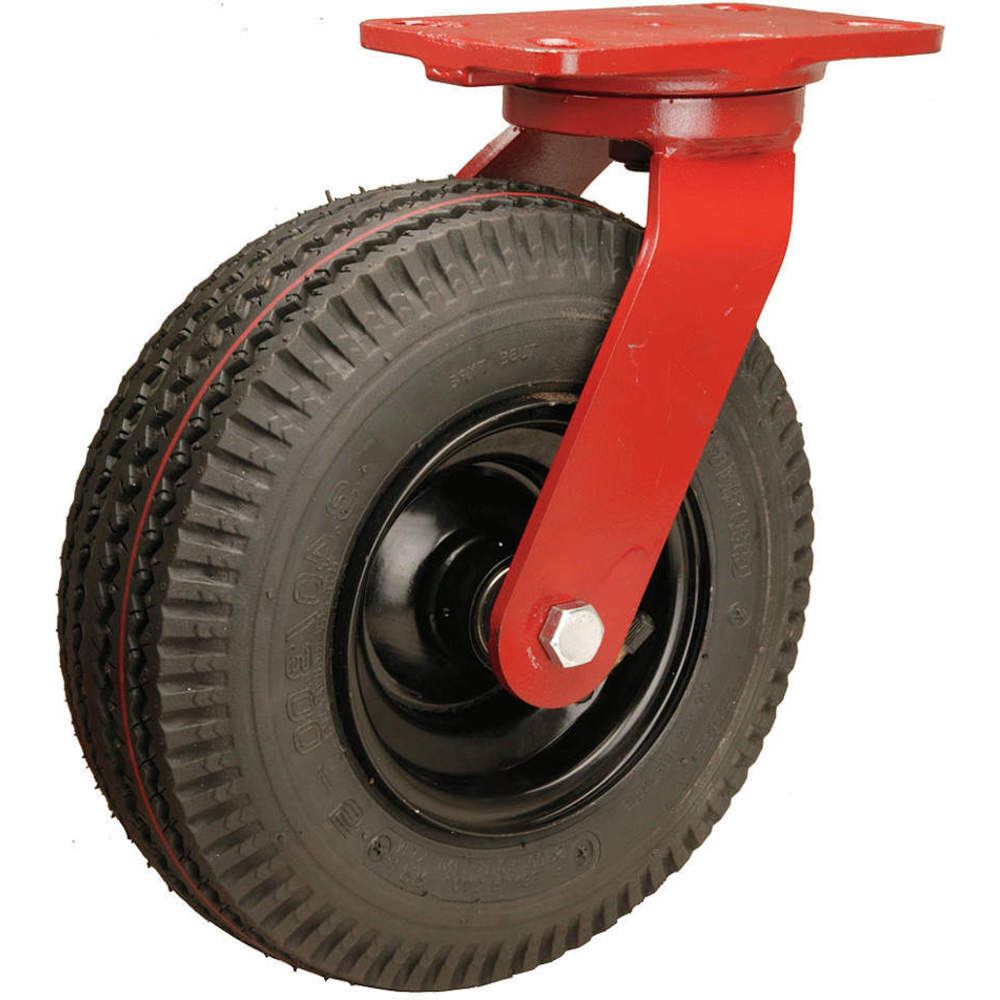

The Hamilton S-7010-PRB swivel pneumatic caster has a 10-inch wheel diameter and a load rating of 480 pounds. It features a sawtooth tread and is made of steel with a forged steel frame. The caster has a symmetrical hub and a single ball caster raceway, with ball wheel bearings. It is suitable for light to medium duty applications and has an overall height of 12-1/2 inches.
Plate Caster with Pneumatic Wheels, Load Rating Range 300 to 999 lb, Load Rating 480 lb, Tread Sawtooth, Wheel Dia. 10 in, Wheel Width 3 1/2 in, Inside Bolt Hole Spacing 2-7/16 in x 4-15/16 in, Outside Bolt Hole Spacing 3-3/8 in x 5-1/4 in, Caster Brake Type No Brake Included, Caster Product Group Swivel Caster, Caster Sub-Type Swivel, Operating Temperature Range -30 Degrees to 120 Degrees F, Non-Marking No, Wheel/Tread Material Rubber, Tire Rim Dia. 5 in, Frame Finish Enamel, Tread Color Black
Gallery
Attributes
| Brand name, Manufacturer name, Brand | Hamilton |
|---|---|
| Manufacturer | Hamilton HAMILTON Hamilton Caster & Mfg. Co. |
| CategoryId, CategoryIdL3 | 6740 |
| CategoryIdL1 | 14394 |
| CategoryIdL2 | 4473 |
| CategoryL1 | Material Handling |
| CategoryL2 | Casters & Wheels |
| CategoryL3 | Casters |
| CategoryL4 | Plate Casters |
| DimensionUnit | inch |
| GTIN, UPC | None |
| GraingerSku | 36T706 |
| UnitOfMeasure | EA |
| Weight | 15.25 15 15.1 17.0 17.00 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligible | False |
| countryOfOrigin | ZZ |
| height | 8.2 |
| jsonUrlData | 924526ffbdad25e5923b |
| length, Item_package_weight | 15.1 |
| moq, multiple, tierMinQty1, Number of Wheels, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Part Number, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number | S-7010-PRB |
| qtyInStock | 107 |
| qtyInStockOverride | -2 |
| SKU | G7613121 |
| tierPrice1 | 233.99 |
| url | https://www.zoro.com/hamilton-swivel-pneumatic-caster-10-in-480-lb-s-7010-prb/i/G7613121/ |
| width | 10.7 |
| Product Group | BISS |
| Overall Height | 12-1/2" |
| Wheel Dia | 10 in |
| Wheel Width | 3 1/2 in |
| Tire Rim Dia | 5 in |
| Hub Width | 3" |
| Mounting Bolt Dia | 1/2 in |
| Plate Size | 4-1/2" x 6-1/2" |
| Mounting Height | 12 1/2 in |
| Mounting Plate Size | 4-1/2 in x 6-1/2 in |
| Caster Load Rating Range | Medium-Duty |
| Caster Sub-Type, Special_feature | Swivel |
| Caster Wheel/Tread Material | Pneumatic |
| Load Rating | 480 lb |
| Caster Mounting Type | Plate |
| Hub Color | Black |
| Plate Caster Bolt Hole Pattern, Caster Plate Hole Pattern | A |
| Inside Bolt Hole Spacing | 2-7/16 in x 4-15/16 in |
| Hub Material | Steel |
| Frame Finish | Enamel |
| Frame Material | Forged Steel |
| Caster Temp Range | -30 Degrees to 120 Degrees F |
| Plate Thickness | 5/16" |
| ASIN, Asin | B00EO3FOQO B00QXQY99S |
| Amount | 214.99 360.88 |
| Binding | Misc. |
| Bullet_point | For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels Load Rating: 480 lb. Inside Bolt Hole Spacing: 2-7/16" x 4-15/16" Ply: 4 Tire Rim Dia.: 5" Plate Thickness: 5/16" Hub Width: 3" Wheel Dia.: 10" Caster Raceway: Single Ball Plate Size: 4-1/2" x 6-1/2" Caster Plate Hole Pattern: A Wheel Width: 3" Caster Wheel Bearings: Ball Number of Wheels: 1 Frame Material: Forged Steel Caster Load Rating Range: Light-Medium Duty Manufactured in united states Overall Height: 12-1/2" Outside Bolt Hole Spacing: 3-3/8" x 5-1/4" Country of Origin (subject to change): Multiple Price For: Each Hub Material: Steel Caster Temp. Range Available: Yes Caster Mounting Type: Plate Frame Finish: Enamel Caster Temp. Range: -30 Degrees to 120 Degrees F Hub Type: Symmetrical Hub Color: Black Non-Marking: No Tread: Sawtooth Tread Color: Black Item: Pneumatic Caster Mounting Bolt Dia.: 1/2" Caster Product Group: Swivel Caster Item: Pneumatic Caster The economic" kingpin less caster featured an unconventional upper raceway for added vertical load handling |
| Cat | Industrial & Scientific |
| CatId | 16310091 |
| CatTree | 16310091 16310161 |
| CatalogNumberList | ZO G7613121 |
| ClassificationId | 511228 |
| Color | Black red |
| CurrencyCode | USD |
| DisplayName | Hardware |
| Feature | "For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels" Price For: Each Hub Material: Steel Caster Temp. Range Available: Yes Caster Mounting Type: Plate Frame Finish: Enamel Caster Temp. Range: -30 Degrees to 120 Degrees F Hub Type: Symmetrical Hub Color: Black Non-Marking: No Tread: Sawtooth Tread Color: Black Item: Pneumatic Caster Mounting Bolt Dia.: 1/2" Caster Product Group: Swivel Caster Item: Pneumatic Caster |
| Generic_keyword | 10 inch |
| Height | 1030 1125 12.5 4.5 500 75 8.2 8.20 |
| Identifier | 7431935668783 |
| IdentifierType | EAN |
| IsBrandQuery, IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Hamilton S-7010-PRB Swivel 7000 10" Pneumatic BB 480 Crimson Red Swivel Pneumatic Caster, 10 in, 480 lb. |
| Item_type_keyword | casters plate-casters |
| Item_weight | 15.0 17.0 |
| Keyword | 36T706 S-7010-PRB |
| Label, Man, Publisher, Studio | HAMILTON Hamilton Caster & Mfg. Co. |
| Length | 12.5 15.1 15.10 4.5 |
| Link | https://m.media-amazon.com/images/I/41nm8-hSsqL._SL75_.jpg https://m.media-amazon.com/images/I/41nm8-hSsqL.jpg https://m.media-amazon.com/images/I/51uYeeHRCAL._SL75_.jpg https://m.media-amazon.com/images/I/51uYeeHRCAL.jpg https://m.media-amazon.com/images/I/61SyJBfFxiL.jpg https://m.media-amazon.com/images/I/61zlcFsP06L.jpg |
| Liquid_volume | 0.0 |
| Load_capacity | 480 |
| Material, MaterialType | Alloy Steel |
| Mounting_type | Plate Mount |
| ProductCategoryId | 16412251 383663011 biss_display_on_website |
| ProductGroup | BISS BISS Basic |
| ProductType | INDUSTRIAL_CASTERS |
| ProductTypeName | ELECTRONIC_COMPONENT INDUSTRIAL_CASTERS MATERIAL_HANDLING |
| Product_description | ' Pneumatic Caster, Caster Load Rating Range Light-Medium Duty , Tread Sawtooth, Wheel Dia. 10 In., Wheel Width 3 In., Load Rating 480 lb., Overall Height 12-1/2 In., Inside Bolt Hole Spacing 2-7/16 In. x 4-15/16 In., Outside Bolt Hole Spacing 3-3/8 In. x 5-1/4 In., Hub Type Symmetrical, Tire Rim Dia. 5 In., Frame Finish Enamel, Frame Material Forged Steel, Hub Material Steel, Tread Color Black, Hub Color Black, Ply 4, Ball Caster Wheel Bearings, Hub Width 3 In., Caster Raceway Single Ball ' |
| Product_site_launch_date | 2010-10-01T17:11:48.055Z |
| Rank | 100646 1485842 1669625 1953617 6669 7567 7888 83024 90302 |
| ReleaseDate | 2017-09-11 |
| Sku | HAMILTON S-7010-PRB HAMILTON S-MD-164DT70-4SL |
| Street_date | 2017-09-11T00:00:01Z |
| StrippedMpns | S7010PRB |
| Supplier_declared_dg_hz_regulation | unknown |
| Surface_recommendation | Multi-Surface |
| Title | Hamilton S-7010-PRB SWIVEL 7000 10" PNEUMATIC BB 480 Crimson Red Hamilton S-7010-PRB Swivel 7000 10" Pneumatic BB 480 Crimson Red Swivel Pneumatic Caster, 10 in, 480 lb. Swivel Pneumatic Caster, 10 in., 480 lb. |
| Type | Count Each Swivel ean |
| URL | http://ecx.images-amazon.com/images/I/313GRcV8cOL._SL75_.jpg http://ecx.images-amazon.com/images/I/41eL3b9q0KL._SL75_.jpg https://m.media-amazon.com/images/I/41nm8-hSsqL._SL75_.jpg https://m.media-amazon.com/images/I/51FtnYdnnEL._SL75_.jpg https://m.media-amazon.com/images/I/51uYeeHRCAL._SL75_.jpg |
| Unit | fluid_ounces inches pound pounds |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN |
| WebsiteDisplayGroup | biss_basic_display_on_website |
| WebsiteDisplayGroupName | BISS Basic |
| Width | 10.7 10.70 2.0 429 458 6.5 64 69 75 944 965 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G7613121 | 1 | 107 | 1 | 1 @ $233.99 |
| Grainger | 36T706 | 1 | 1 | ||
| motionindustries.com | 05865656 | 1 | 1 | 1 @ $296.44 | |
| AC6YPH | 1 | 1 | 1 @ $340.62 | ||
| B00EO3FOQO | 1 | 1 | |||
| sustainablesupply.com | C1555868 | 1 | -2 | 1 | 1 @ $215.18 |
 simsupply.com | CU-333654373036 | 1 | 1 | 1 @ $210.11 | |
 grainger.ca | WWG36T706 | 1 | 1 | 1 @ $225.78 | |
 simsupply.com | ZO-G7613121 | 1 | 97 | 1 | 1 @ $277.00 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Hamilton S-7010-PRB Swivel 7000 10" Pneumatic BB 480 Crimson Red
Brand: Hamilton
Details
- For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels
- The economic" kingpin less caster featured an unconventional upper raceway for added vertical load handling
- Manufactured in united states
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | MATERIAL_HANDLING |
| Model | S-7010-PRB |
| Part number | S-7010-PRB |
| Items per pack | 1 |
| Label | Hamilton Caster & Mfg. Co. |
| Manufacturer | Hamilton Caster & Mfg. Co. |
Catalog
| Feature | "For the past 100 years, we've earned a reputation for building the industry's most durable casters and wheels" |
|---|---|
| Category | Industrial & Scientific |
| MPN | S-7010-PRB |
| Product group | BISS |
| Product type | MATERIAL_HANDLING |
| Manufacturer | Hamilton Caster & Mfg. Co. |
Swivel Pneumatic Caster, 10 in, 480 lb.
Brand: Hamilton
' Pneumatic Caster, Caster Load Rating Range Light-Medium Duty , Tread Sawtooth, Wheel Dia. 10 In., Wheel Width 3 In., Load Rating 480 lb., Overall Height 12-1/2 In., Inside Bolt Hole Spacing 2-7/16 In. x 4-15/16 In., Outside Bolt Hole Spacing 3-3/8 In. x 5-1/4 In., Hub Type Symmetrical, Tire Rim Dia. 5 In., Frame Finish Enamel, Frame Material Forged Steel, Hub Material Steel, Tread Color Black, Hub Color Black, Ply 4, Ball Caster Wheel Bearings, Hub Width 3 In., Caster Raceway Single Ball '
Details
- Price For: Each Hub Material: Steel Caster Temp. Range Available: Yes Caster Mounting Type: Plate Frame Finish: Enamel Caster Temp. Range: -30 Degrees to 120 Degrees F Hub Type: Symmetrical Hub Color: Black Non-Marking: No Tread: Sawtooth Tread Color: Black Item: Pneumatic Caster Mounting Bolt Dia.: 1/2" Caster Product Group: Swivel Caster Item: Pneumatic Caster
- Load Rating: 480 lb. Inside Bolt Hole Spacing: 2-7/16" x 4-15/16" Ply: 4 Tire Rim Dia.: 5" Plate Thickness: 5/16" Hub Width: 3" Wheel Dia.: 10" Caster Raceway: Single Ball Plate Size: 4-1/2" x 6-1/2" Caster Plate Hole Pattern: A Wheel Width: 3" Caster Wheel Bearings: Ball Number of Wheels: 1 Frame Material: Forged Steel Caster Load Rating Range: Light-Medium Duty
- Overall Height: 12-1/2" Outside Bolt Hole Spacing: 3-3/8" x 5-1/4" Country of Origin (subject to change): Multiple
Listing
| Product group | BISS |
|---|---|
| Product type | ELECTRONIC_COMPONENT |
| Part number | S-7010-PRB |
| Items per pack | 1 |
| Label | HAMILTON |
| Manufacturer | HAMILTON |
Catalog
| Feature | Price For: Each Hub Material: Steel Caster Temp. Range Available: Yes Caster Mounting Type: Plate Frame Finish: Enamel Caster Temp. Range: -30 Degrees to 120 Degrees F Hub Type: Symmetrical Hub Color: Black Non-Marking: No Tread: Sawtooth Tread Color: Black Item: Pneumatic Caster Mounting Bolt Dia.: 1/2" Caster Product Group: Swivel Caster Item: Pneumatic Caster |
|---|---|
| Category | Industrial & Scientific |
| MPN | S-7010-PRB |
| Product group | BISS |
| Product type | ELECTRONIC_COMPONENT |
| Manufacturer | HAMILTON |
